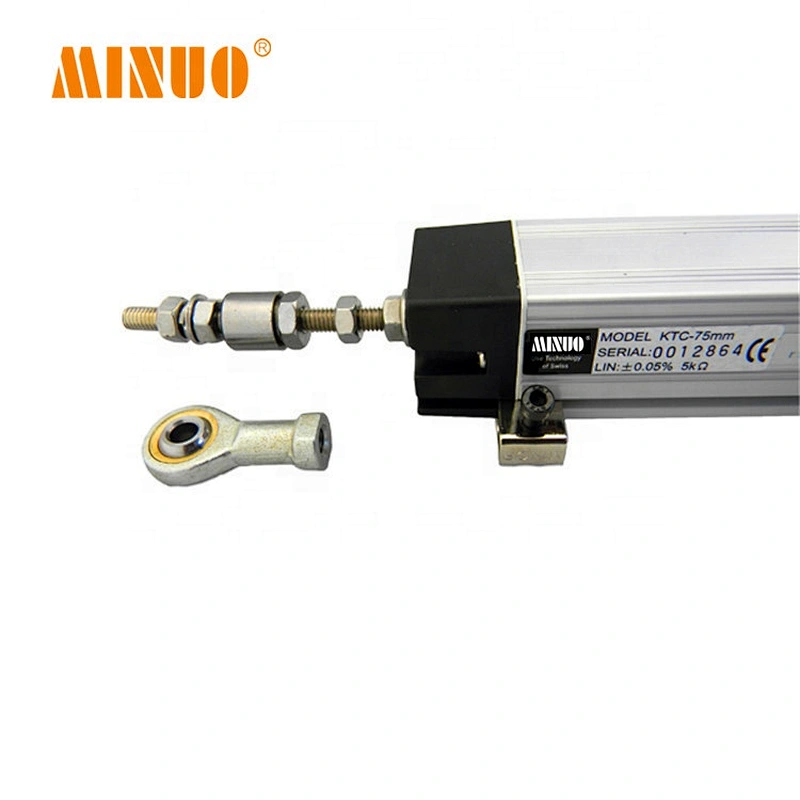

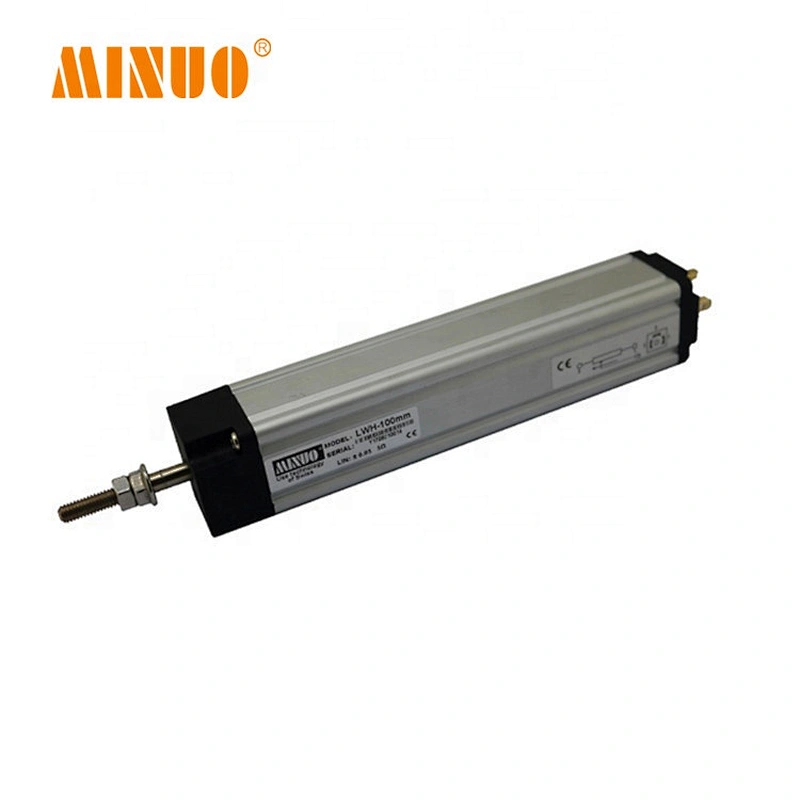

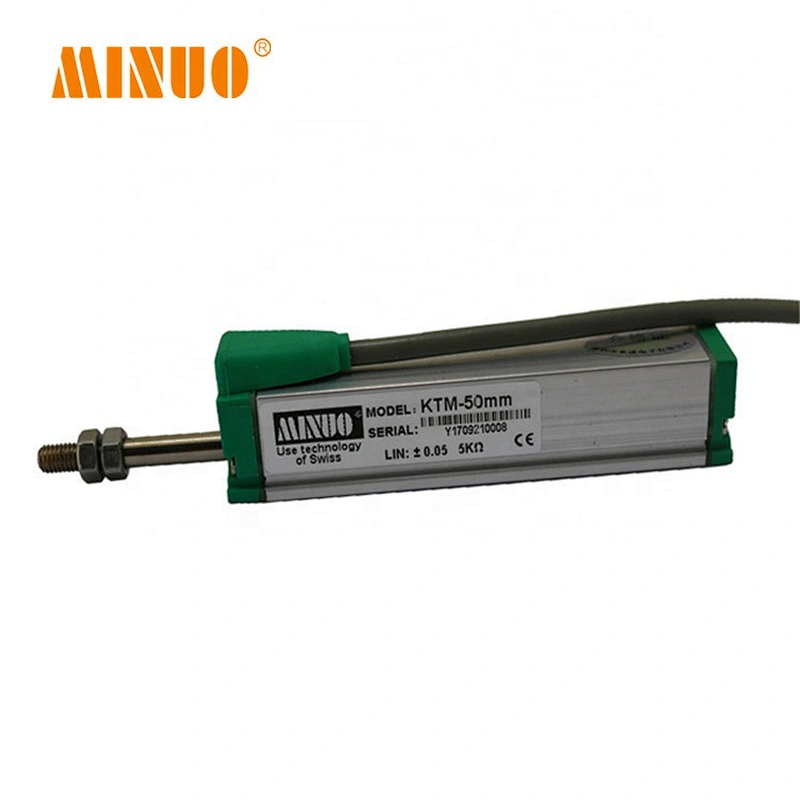

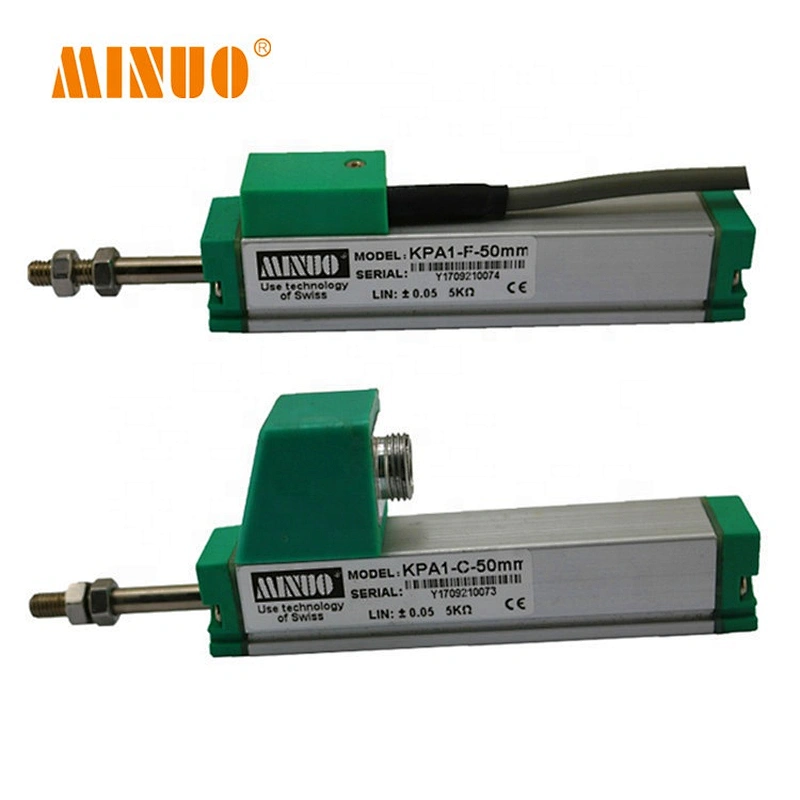

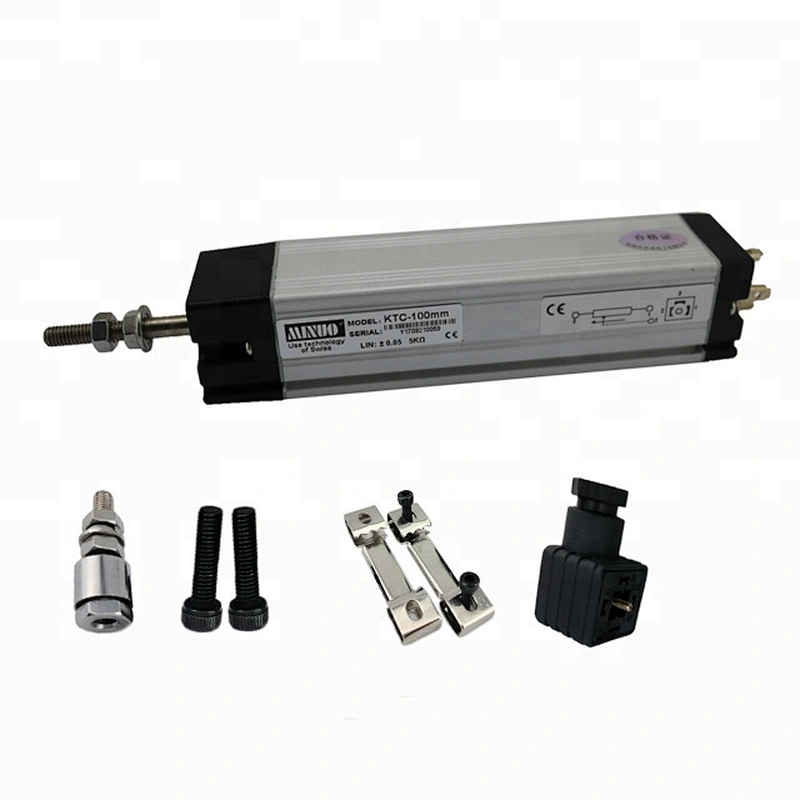

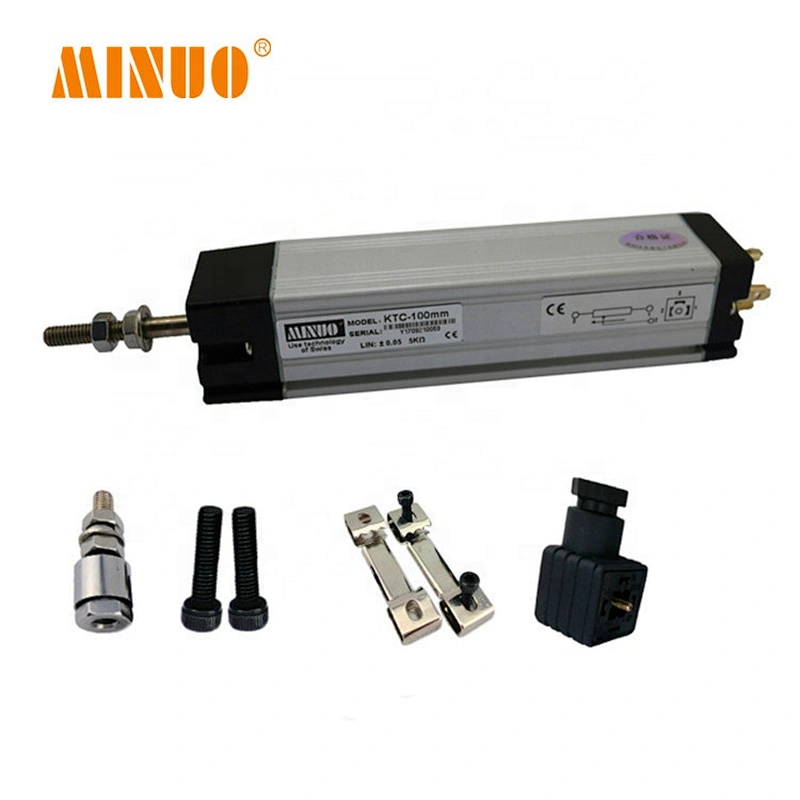

MINUO KTC-900mm Pull rod type linear displacement sensor linear position sensors

1.Simple structure, small size, light weight, affordable, but with stable and high

   precision quality.

2.Less impact generated by the environment (Such as temperature, humidity,

   magnetic interfere etc).

3.Any function of input and output can be implemented.

4.Strong output signal, normally no need to additional amplifier.

5.Suitable for the condition which any optical rule or rotary encode can not be used.

6.Easily installing and maintaining.

7.Save mechanical costs about 30%

First change the physical change of being measured target into the change of resistance,

then the change is orocessed via related measure circuic and device. Finally be displayed

or recorded. So we also called it electronic rule or digital position switch. It can be used in

a PLC control system for the frequenty conversion system, measuring the object distortion

etc, such as:controlling the travel of gas cylinder or oil cylinder, the positive &reversal-going change of the angle and so on. At same time, any position can be set as the start or stop point,

and givea feedback signal. It can replace limit switch, linear slippage rheostat, Linear Variable

Differential Transformer (LVDT)

The linear displacement sensor is applied to the injection molding machine.

The linear displacement sensor is applied to the shoemaking machine.

Linear displacement sensor is used for crack monitoring.

Linear displacement sensor is used for bridge monitoring

The linear displacement sensor is used to synchronize the position of the cylinder.

The linear displacement sensor is used for four-wheel positioning.

SHENZHEN MINUO ELECTRONICS CO.LTD was founded in 2004,The company has the top bump type of conductive plastic potentialsensor resistance  railresearchand development and manufacturing and  thecoretechnology. It is the earlier high-tech enterprises engaged in the electrically conductive plastic potentiometer(Angle) of research and development and production in China.We have obtained several patents,MINUO product therefore won the good market reputation and industry brand awareness.

  We with one-pointed,focus,focus,professional industry workman for the enterprise development concept.Continue to participate in future industrial 4.0 sensor core technology research and development,strive to build the world industrial automation engineer preferred displacement (perspective) sensor.Continuously improveproductqualityandservicequalitiosatistpesoaliztie

  MINUO main production and sales of conductive plastic displacement sensor(electronic rule),Rotary displacementsensor,Draw wire position sensor,transmitter, magnetostrictive displacement sensor,Digital display intelligent meter,grating scale , Range from 0mm-30mm ,the precisionof products are 0.1% 0.05%,5um,1um,0.5um.The varieties, complete specifications and models, range range service life and accuracy in the leading position in the industry.

  Products are widely used in aviation, military industry, machinery, engineering machinery, engineering,automation control system requires accurate measurement of displacement.
