Operating Temperature:-50 to 120 degree centigrade

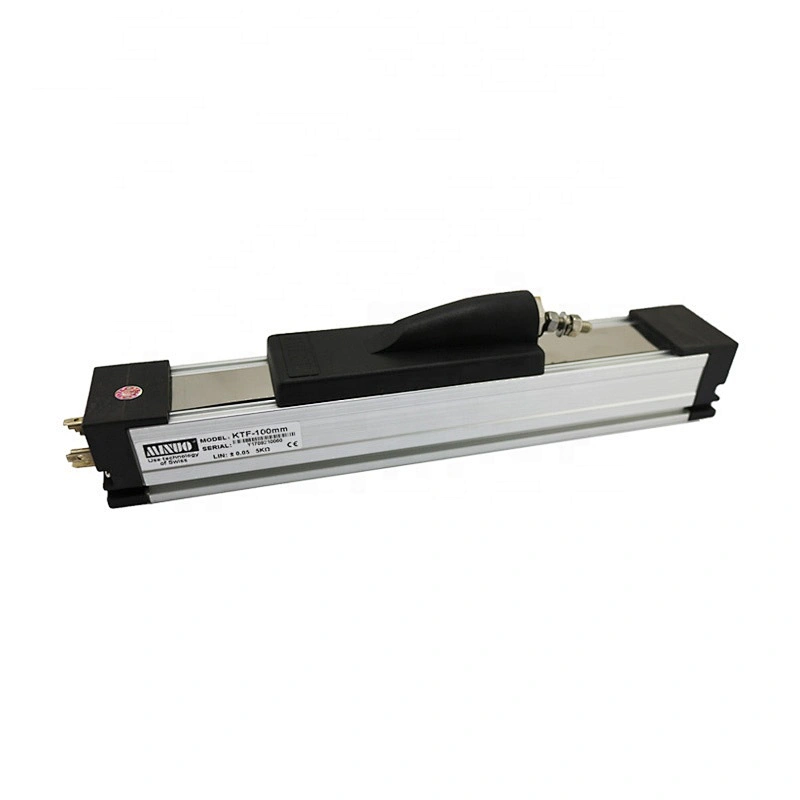

KTF slider resistance-type linear displacement sensor
Standard Dimensions:
One meter wire incloud>>
Red: Anode
Blue: Negative Electrode
Black: Output
KTF pull Pole series linear position sensors are designed for measurement of displacement under the condition of limited space. Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic track inside, the product could run smoothly and have low-noise output signals.
The transducer can be connected to mechanical input by an universal joint, so small deviation of installation angle is tolerable. Credited to the technology of trimming resistance , minuo could not only provide you with required linearity, but also any resistance you need, such as 5678Ω or 8765Ω.
Output signal mode
Output signal mode
A.Resistance: 1K,2K, 5K,10K,20K Ω
B.Current: 4-20mA
C.Power: 5V,10V,12V,24V
D.Related digital indicator: up-limit and bottom-limit setting function
(relay output, analogue, RS232/485 interface)
Product Characterist
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
Application Range
Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting
molding machine), glass machine, printing machine, medical machine, wood and coal
mine machine and so on.
MINUO products can be used with PLC industrial control systems, servo, frequency
converter, singlechip microcomputer, supporting the use of achieve frequency control,
the precise position detection and control signal feedback ect.
Product Description
KDC
KTR-C
KPY3
LWH
LTM
KTW-A
KPZ34
PKM
KTR-M
Certificate
Factory
FAQ
Place of Origin：CN;HEB
Brand Name：MINUO
Model Number：KTF-2000mm
Type：Slide Potentiometer
Technology：Carbon Film
Resistance：5K
Resistance Tolerance：-50 to 120 degree centigrade
Rated Power：0.5W
Max. Operating Voltage：24V
Operating Temperature：-50 to 120 degree centigrade
