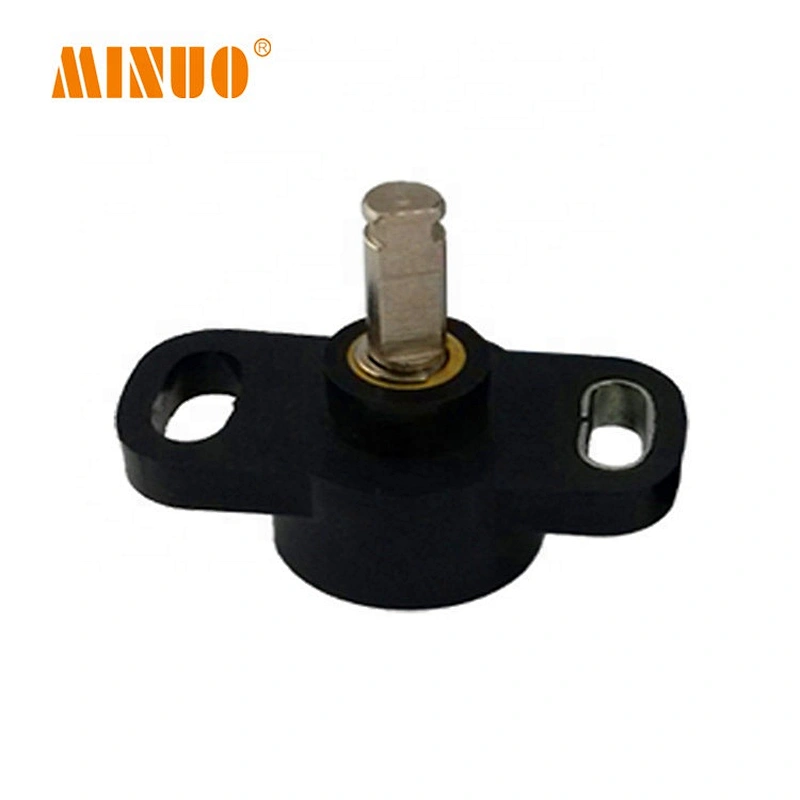

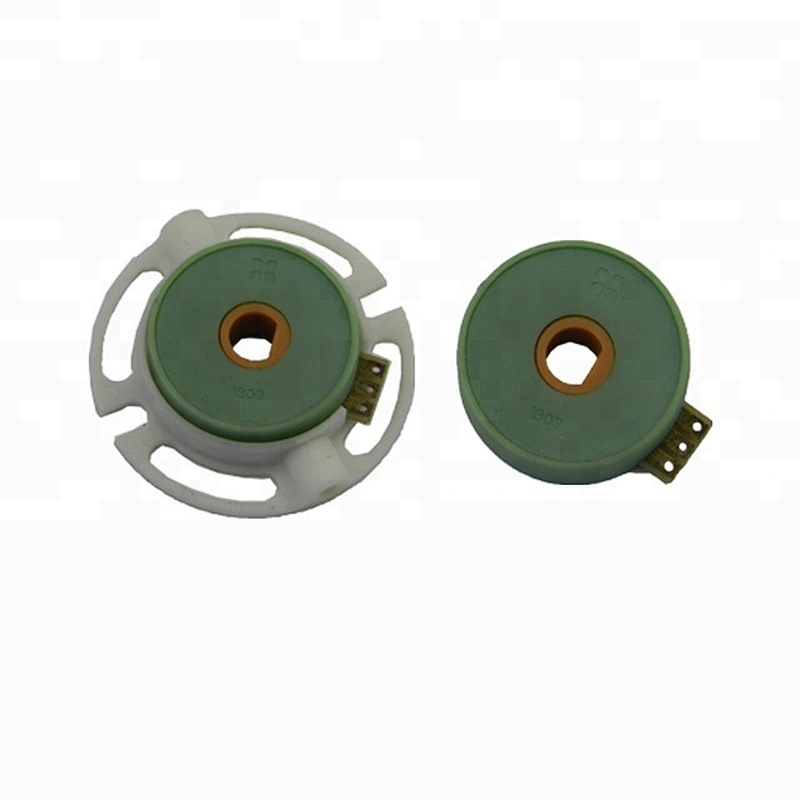

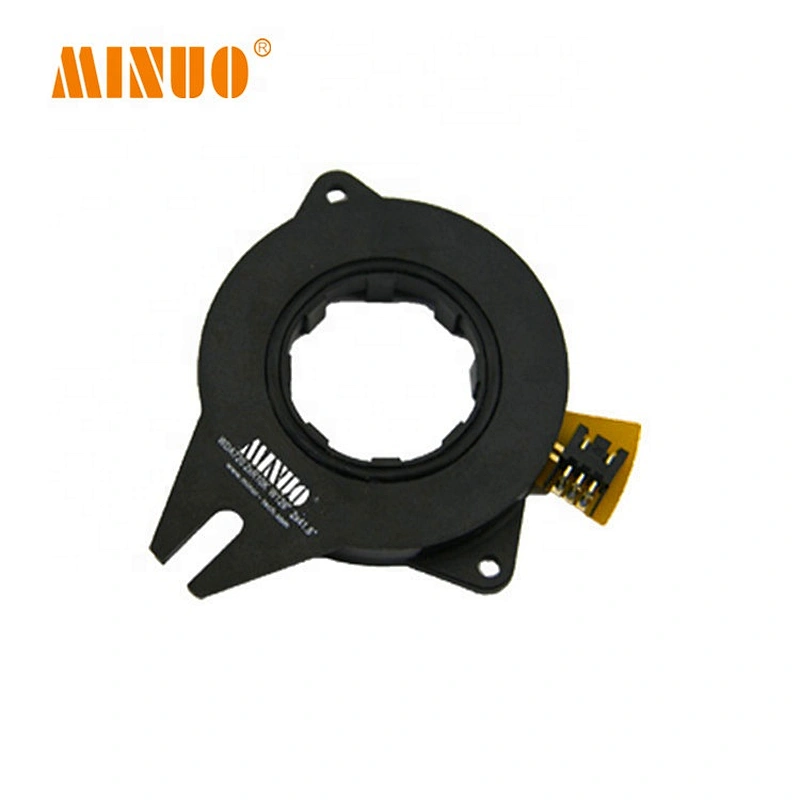

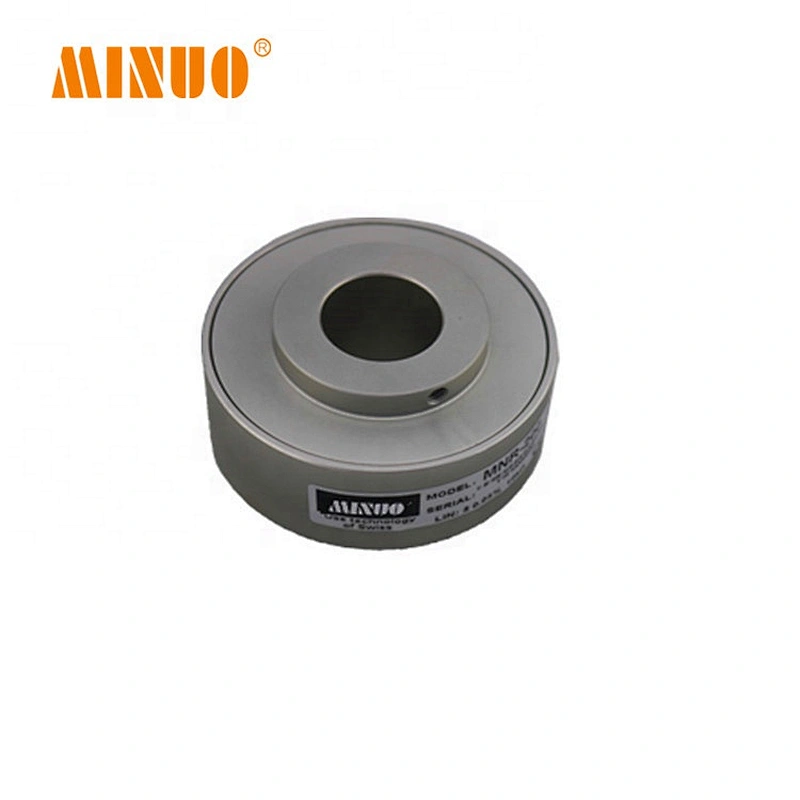

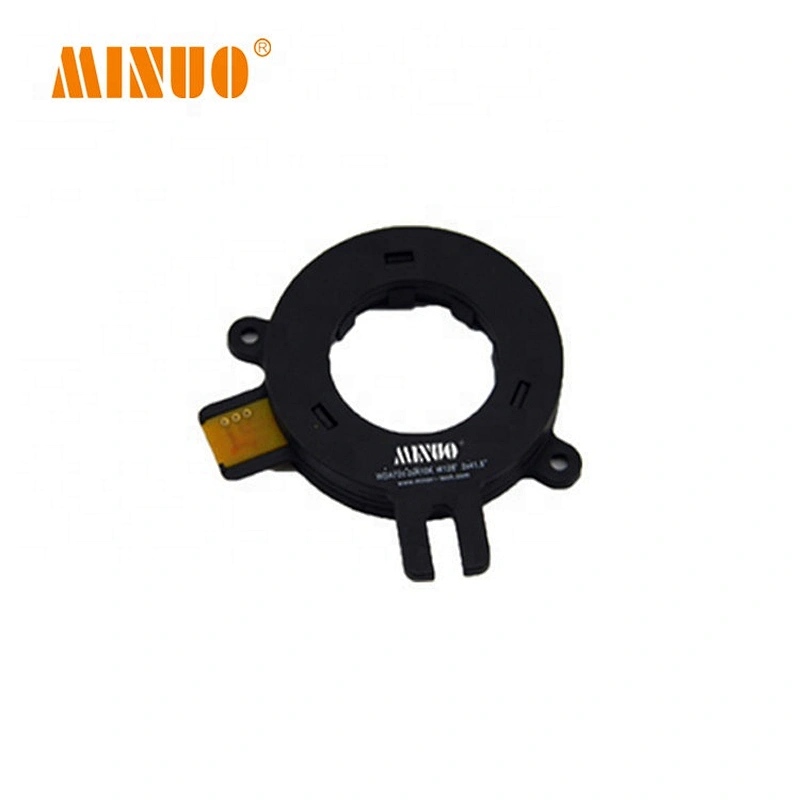

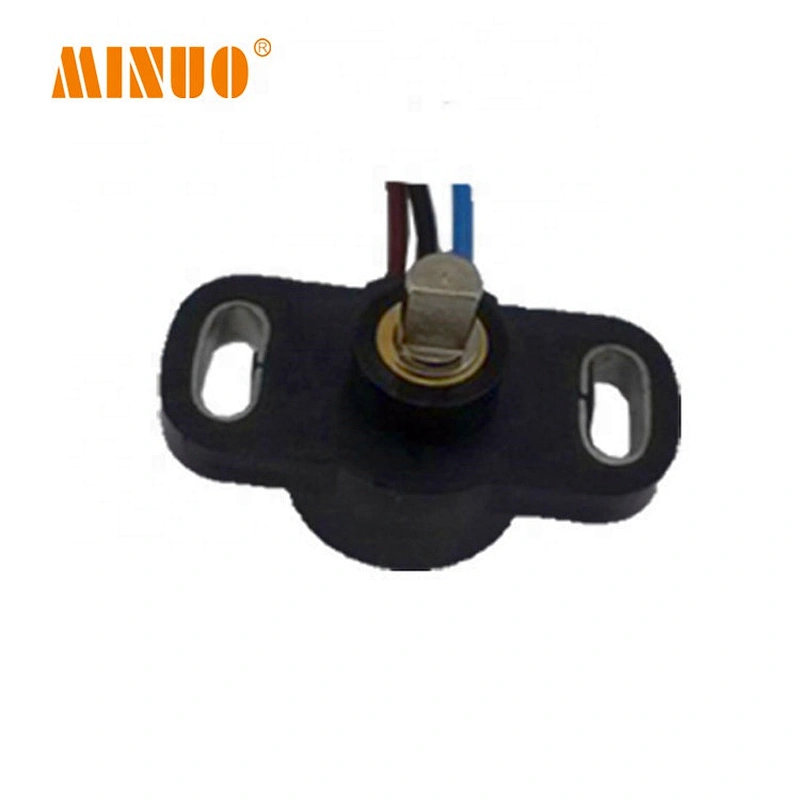

R24HS Hollow Angle sensor conductive plastic potentiometer instead of WAL200

ELECTRICAL     CHARACTERISTICS

Resistance element

Conductive plastic

Standard resistance values(Ω)

1K,5K,10K(Special max.100K)

Resistance accuracy

standard level(%)

±20

Precision level(%)

±10

Linearity accuracy

standard level(%)

±2

Precision level(%)

±1

Linearity type(IEC 60393)

Independent linearity

Maxing wiper current

100μA

Maxing current pass wiper(3″time limit)

1mA

Power rating(+70℃)

0.5 Watt

End voltage:Supply voltage(%)

<0.5%

Electrical Travel

Standard type340°±5°(Other spec. optional)

Resolution

Infinite

TCR

±400ppm/℃

Insulation resistance

1000MΩ(500V DC)

Dielectric strength

500V AC

MECHANICAL  CHARACTERISTICS

Customized  the  special

Special electrical/mechanical degree;With stop needle;With mounting tray.

Mechanical angle

360°

Maxing rotaty speed

250rpm

Starting torque

1.4mN·m

Rotational torque

1.0mN·m

Bearing type

Sleeve

Operating life

Shaft2,000,000 turns

Operating temperature

—50℃~+105℃

MATERIALS

Hollow trun material

Plastic

Housing

Plastic

Terminals

Copper, gold plated
