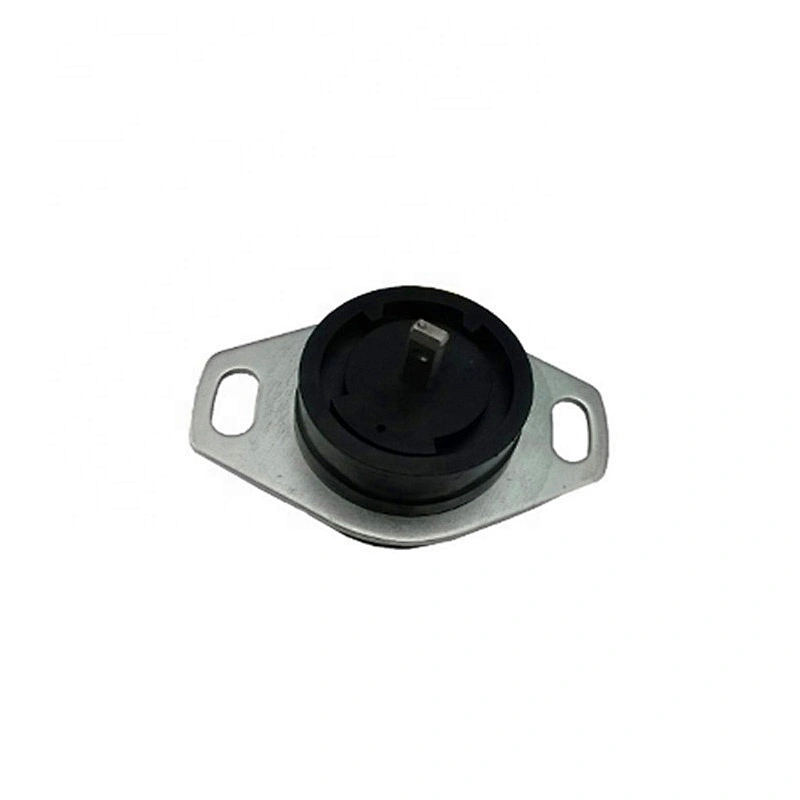

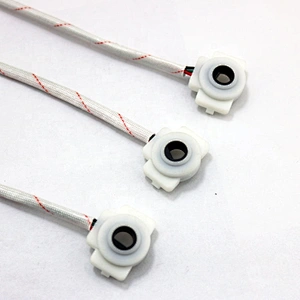

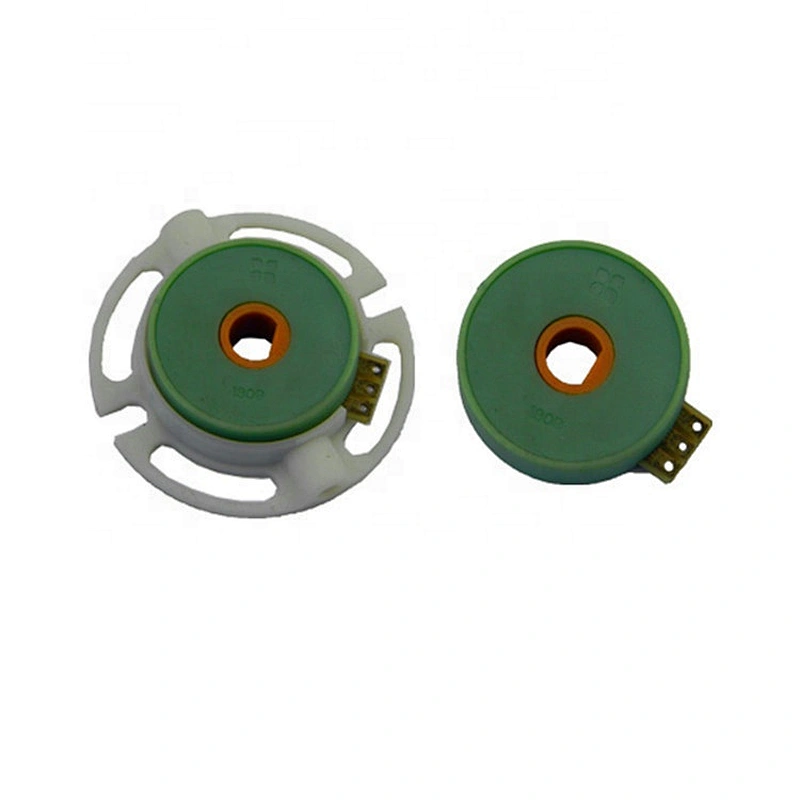

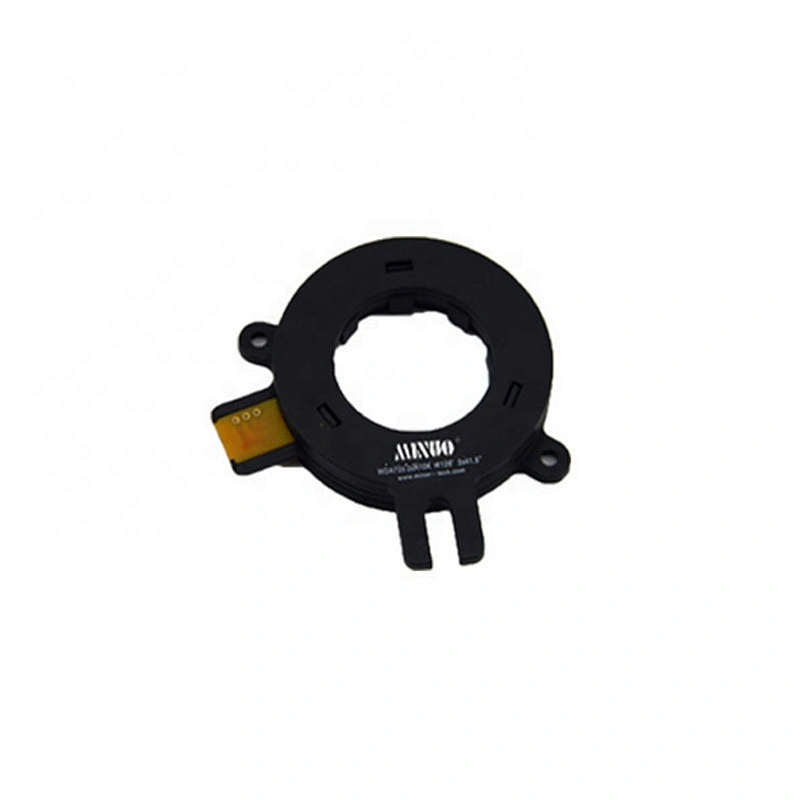

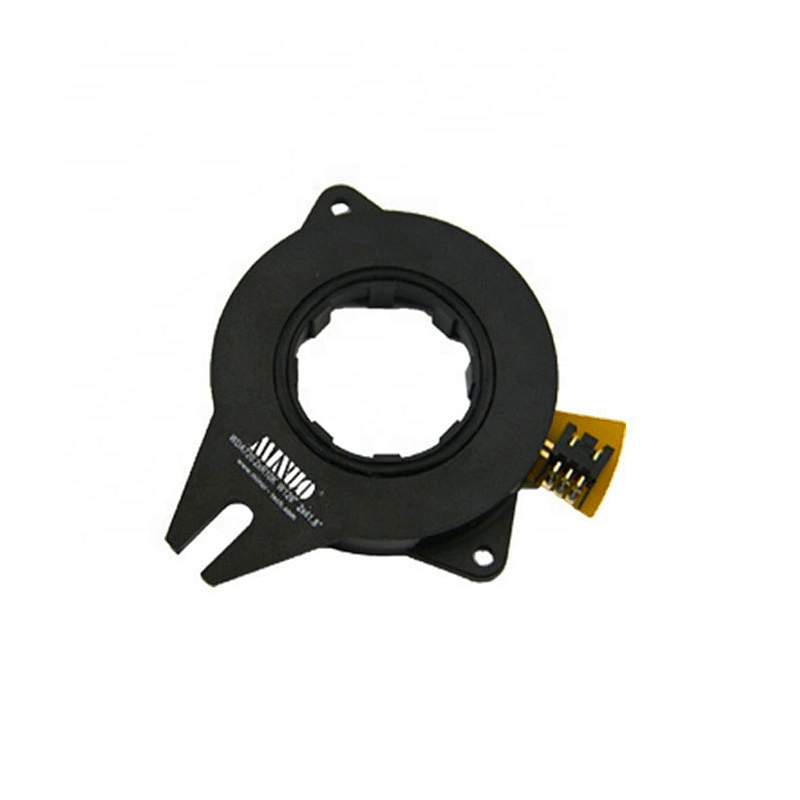

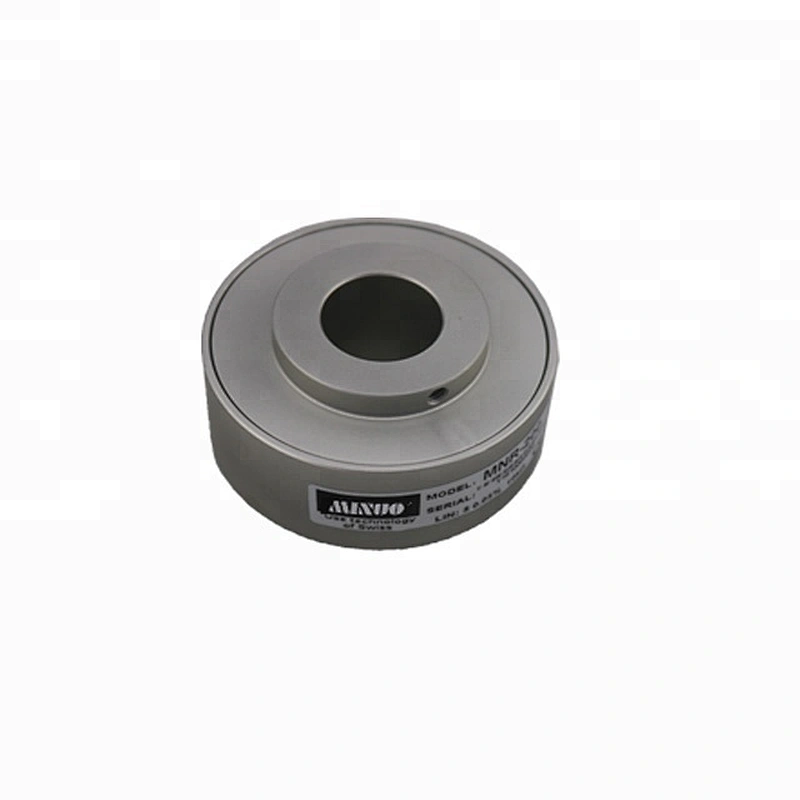

Long life hollow shaft potentiometer WDA--720 10K ohm

To the change of physical quantity being measured into the change of the resistance value, then through the corresponding measuring circuit and the device is to display or record the change of the measured value, so they are called electronic or digital travel switch, cooperate with PLC industrial control system can be used for frequency control, such as deformation of measured object USES, such as control cylinder, oil cylinder stroke, positive and negative direction change of perspective and how start-stop point can be set at any position or arbitrary, several position feedback switch signal, alternative travel switch, revolves around money slide rheostat, a differential transformer displacement sensor (an LVDT).

(1). Resistance: 5 k Ω, optional (1 kΩ, 2 kΩ, 10 k Ω,20k Ω);

(2). Analog current: 4-20mA,0-20mA,1-20mA;

(3) voltage: 0-5v / 0-10v / ±5v.

(4). Matching digital display table: upper and lower limit setting function (relay, analog quantity, RS232 RS485 interface).

Application in industrial and program control, for example: injection molding machine, glass machinery, printing machinery, medical machinery, woodworking machinery coal mining machinery and other fields. This kind of products can be used with PLC industrial control system, servo mechanism, frequency converter, single chip microcomputer, etc., to achieve the function of frequency

SHENZHEN MINUO ELECTRONICS CO.LTD was founded in 2004,The company has the top bump type of conductive plastic potentialsensor resistance  railresearchand development and manufacturing and  thecoretechnology. It is the earlier high-tech enterprises engaged in the electrically conductive plastic potentiometer(Angle) of research and development and production in China.We have obtained several patents,MINUO product therefore won the good market reputation and industry brand awareness.

  We with one-pointed,focus,focus,professional industry workman for the enterprise development concept.Continue to participate in future industrial 4.0 sensor core technology research and development,strive to build the world industrial automation engineer preferred displacement (perspective) sensor.Continuously improveproductqualityandservicequalitiosatistpesoaliztie

  MINUO main production and sales of conductive plastic displacement sensor(electronic rule),Rotary displacementsensor,Draw wire position sensor,transmitter, magnetostrictive displacement sensor,Digital display intelligent meter,grating scale , Range from 0mm-30mm ,the precisionof products are 0.1% 0.05%,5um,1um,0.5um.The varieties, complete specifications and models, range range service life and accuracy in the leading position in the industry.

  Products are widely used in aviation, military industry, machinery, engineering machinery, engineering,automation control system requires accurate measurement of displacement.
