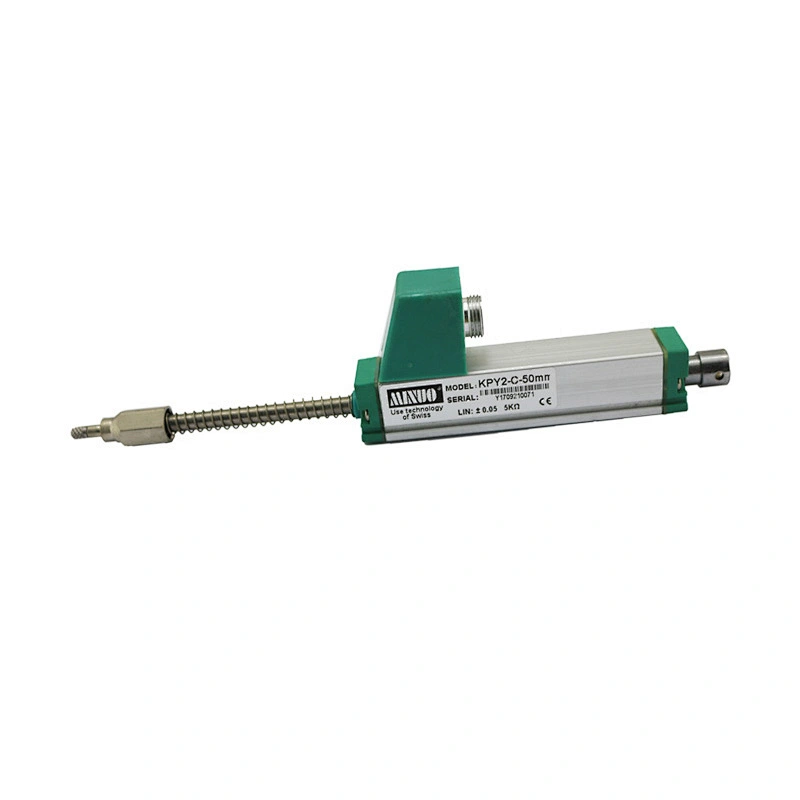

KPY2-F-50mm Very compact dimensions and heavy-duty design characterize this sensor series

KPY2-F-50mm Very compact dimensions and heavy-duty design characterize this sensor series

Model NO.: KPY2-F-50mm
Price:: USD 30.00-80.00 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 50000 piece / Month
Country of Origin: Hongkong or Shenzhen

Quantity:

Product Description
Basic Information

Place of Origin:CN;GUA
Usage:Position Sensor
Theory:Resistance Sensor
Output:Analog Sensor
Brand Name:MINUO
Model Number:KPY2-F-50mm

KPY robots brick ceramic sluice gate footwear machines Analog Sensor

Standard Dimensions:

KPY2

KPY linear position sensors are designed for precise measurement of displacement and length. The Measuring range of KTW is up to 1500mm with repeatability of ±0.01mm and linearity of 0.05% (model size>350mm).Its structure is designed for simple installation and reliable work. Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic track inside ,the product could run smoothly and have low-noise output signals.

There is a cardan joint or ball-bearing coupling at the top of pull pole to offset the effects of misalignment with the actuating part. Credited to the technology of trimming resistance, MINUO could not only provide you with required linearity, but also any resistance you need, such as 5678Ω or 8765Ω.

Output signal mode

A.Resistance: 1K,2K, 5K,10K,20K Ω

B.Current: 4-20mA

C.Power: 5V,10V,12V,24V

D.Related digital indicator: up-limit and bottom-limit setting function

(relay output, analogue, RS232/485 interface)

Product Characterist

1.Simple structure, small size, light weight, affordable, but with stable and high

precision quality.

2.Less impact generated by the environment (Such as temperature, humidity,

magnetic interfere etc).

3.Any function of input and output can be implemented.
