Model NO.
WDA-720
Price:
USD 25.00-40.00 / piece
Delivery
FOB
Minimum order quantity
1 piece
Supply Ability
50000 piece / Month
Country of Origin
Shenzhen or Hongkong
Quantity:

 WDA-720 .jpg

Product Description

 rotary sensor for Textile MachineryFeatures

A.   Service life 500000 cycles
B.   Protection class IP50
C.   Linearity  0.5%
D.   EL.Angel 41.5°+43.5°

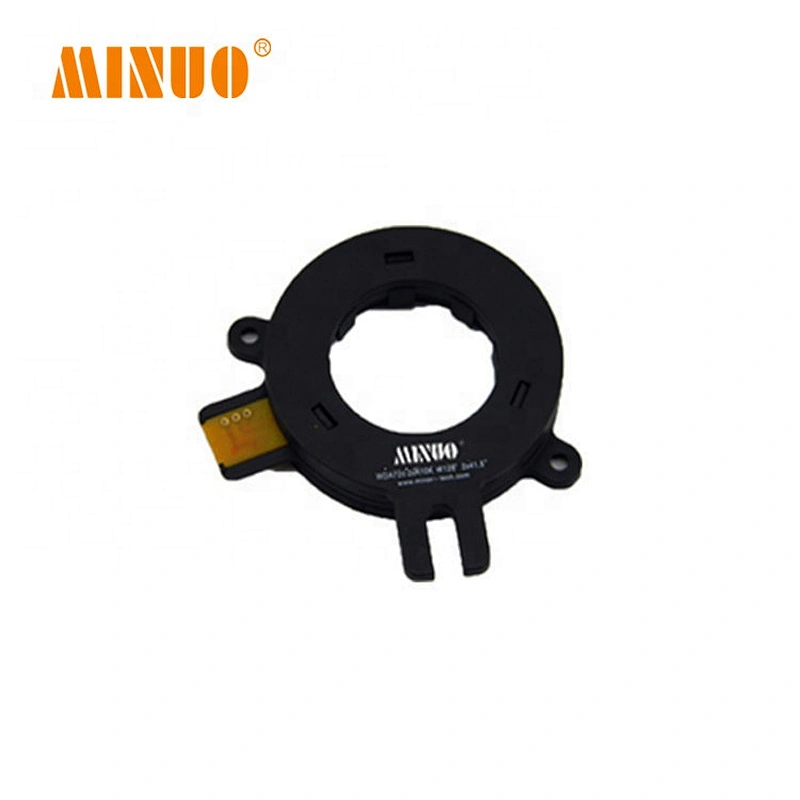

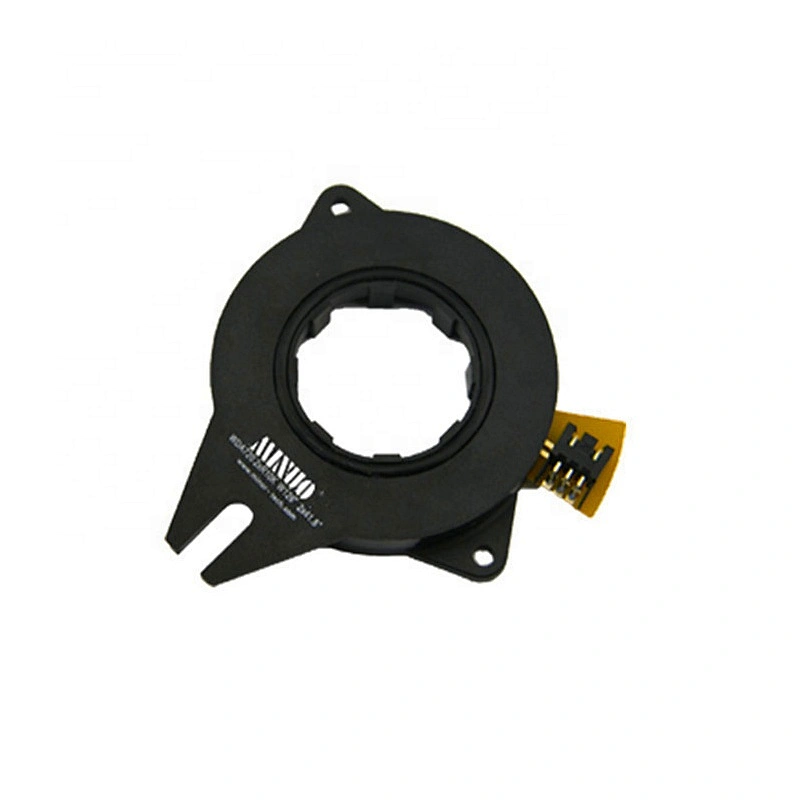

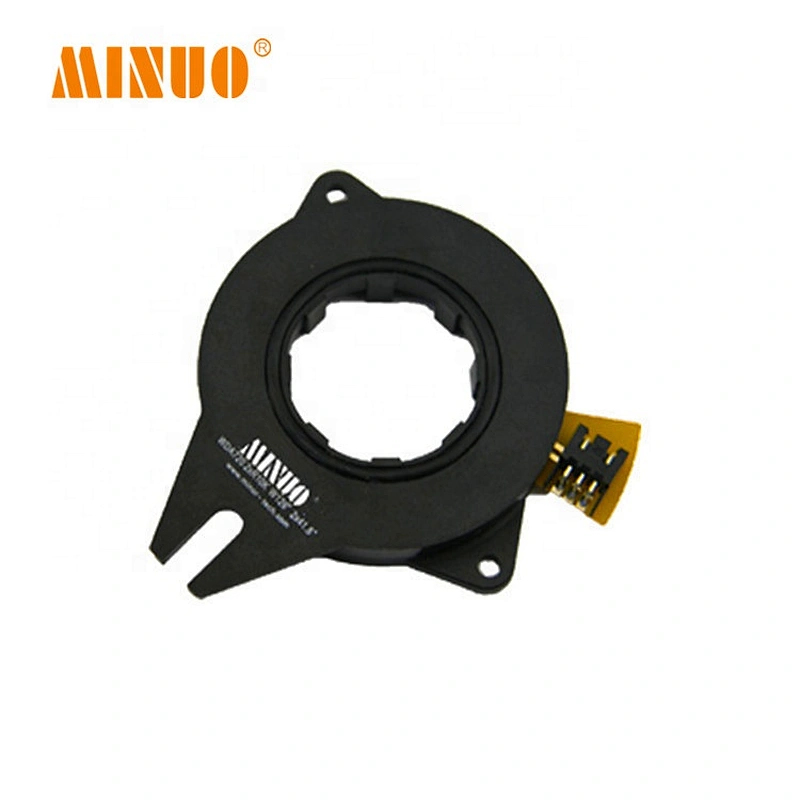

       The WDA-720 angle transducer is specially designed for Printing machine and textile machinery.Built with conductive plastic resistance and multi-fingered wipers , WDA-720 provides a voltage feedback signal for rotational position with superb linearity and resolution.
Electrical Characteristics
Resistence2×20KΩ
Resistence tolerance20%
El.Angle41.5°+43.5°
Liearity0.50%
Power rating0.25W/T=40
rec.wiper current<1μA
max.wiper current10mA
max.wiper resistance500Ω
Insulation resistance10GΩ/500VDC
Spannungsfestigkeit1000VAC/1min
Temperature coefficient600ppm/








Mechanical drawing







Output signal mode



Output signal mode
A.Resistance: 1K,2K, 5K,10K,20K Ω
B.Current: 4-20mA
C.Power: 5V,10V,12V,24V
D.Related digital indicator: up-limit and bottom-limit setting function
 (relay output, analogue, RS232/485 interface)
Our products



Factory


Company information

SHENZHEN MINUO ELECTRONICS CO.LTD was founded in 2004,The company has the top bump type of conductive plastic potentialsensor resistance  railresearchand development and manufacturing and  thecoretechnology. It is the earlier high-tech enterprises engaged in the electrically conductive plastic potentiometer(Angle) of research and development and production in China.We have obtained several patents,MINUO product therefore won the good market reputation and industry brand awareness.

  We with one-pointed,focus,focus,professional industry workman for the enterprise development concept.Continue to participate in future industrial 4.0 sensor core technology research and development,strive to build the world industrial automation engineer preferred displacement (perspective) sensor.Continuously improveproductqualityandservicequalitiosatistpesoaliztie

  MINUO main production and sales of conductive plastic displacement sensor(electronic rule),Rotary displacementsensor,Draw wire position sensor,transmitter, magnetostrictive displacement sensor,Digital display intelligent meter,grating scale , Range from 0mm-30mm ,the precisionof products are 0.1% 0.05%,5um,1um,0.5um.The varieties, complete specifications and models, range range service life and accuracy in the leading position in the industry.

  Products are widely used in aviation, military industry, machinery, engineering machinery, engineering,automation control system requires accurate measurement of displacement.

  • Place of Origin:CN;GUA
  • Brand Name:MINUO
  • Model Number:WDA-720
  • Usage:Position Sensor
  • Theory:Resistance Sensor
  • Output:Analog Sensor
