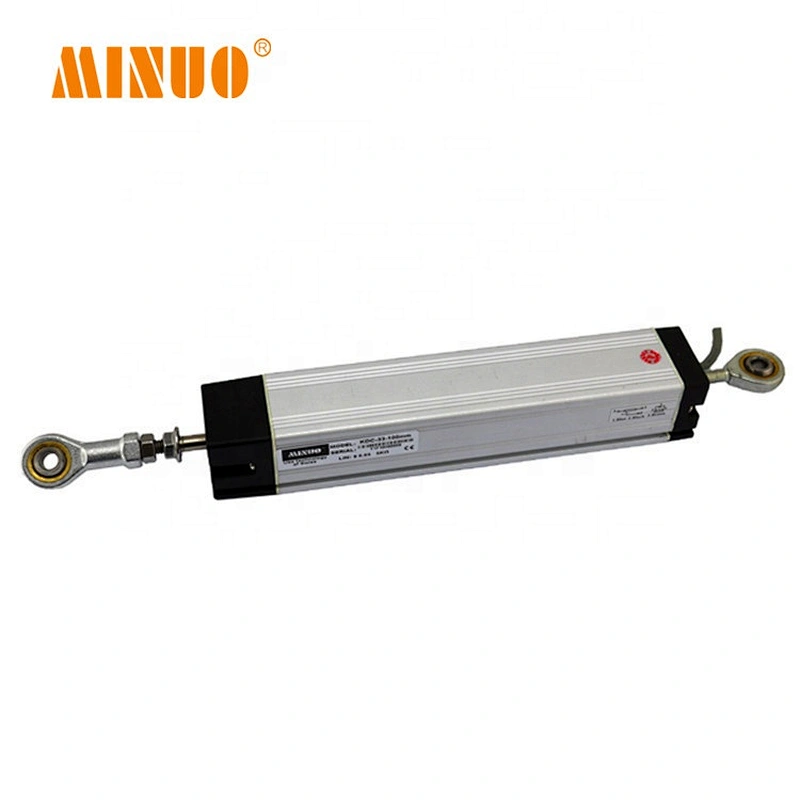

KDC slider resistance-type linear displacement sensor
Standard Dimensions:
KDC gemel series linear position sensors are designed for measurement of large displacement in the existence of wiggle. Its anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic track inside, the product could run smoothly and have low-noise output signals.
Self-aligning linkage using two joint bearing Max. angular movement up to ± 15 °.
With the help of Self-aligning linkage, a large angle(<15°) of misalignment will not bring any negative effect. Credited to the technology of trimming resistance , MINUO can not only provide you with required linearity, but also any resistance you need, such as 5678Ω or 8765Ω.
Output signal mode
Output signal mode
A.Resistance: 1K,2K, 5K,10K,20K Ω
B.Current: 4-20mA
C.Power: 5V,10V,12V,24V
D.Related digital indicator: up-limit and bottom-limit setting function
(relay output, analogue, RS232/485 interface)
Product Characterist
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
Application Range
Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting
molding machine), glass machine, printing machine, medical machine, wood and coal
mine machine and so on.
MINUO products can be used with PLC industrial control systems, servo, frequency
converter, singlechip microcomputer, supporting the use of achieve frequency control,
the precise position detection and control signal feedback ect.
