- Place of Origin:CN;GUA
- Type:Slide Potentiometer
- Technology:Carbon Film
- Brand Name:MINUO
- Model Number:KPZ12-S-25mm
- Resistance:1K, 2K,5K ohm
- Resistance Tolerance:plus or minus -20% to +20%
- Rated Power:0.5W
- Max. Operating Voltage:5V,10V,12V,24V
- Operating Temperature:-50 to 120 degree centigrade

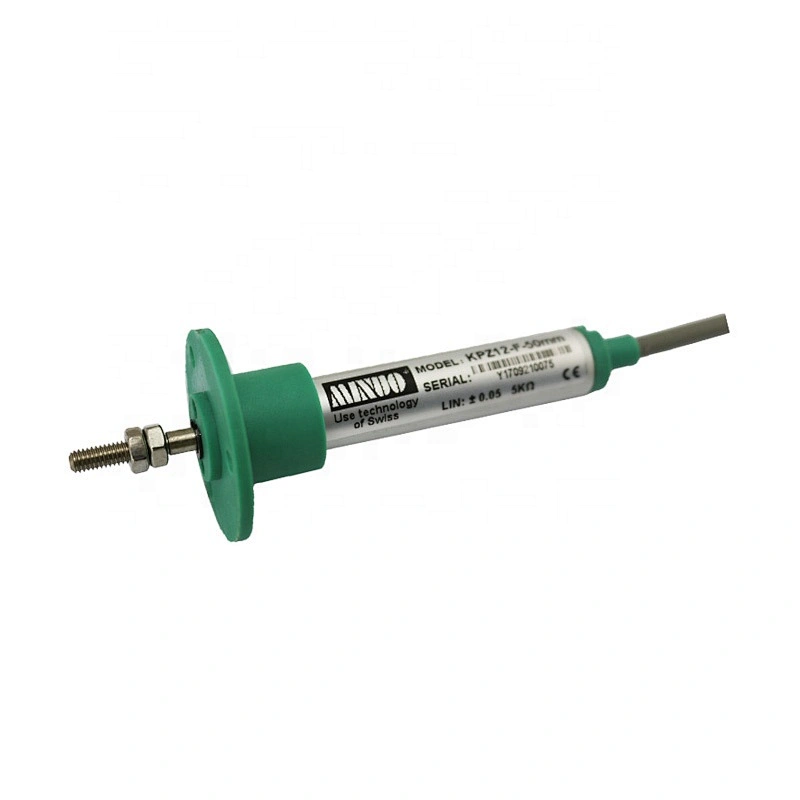

KPZ Linear Position Sensor and Components
This mini position transducer is designed for direct absolute measurement and available in stroke length up to 150mm. The mini design is suitable for mounting in instruments or machines with limited space.
An improved technique for making connection to resistance track (Double Trimming Technique) ensures the higher degrees of reliability and linearity, while multi-fingers wipers stabilize output signals, even in the most adverse working conditions.
| Output signal mode |
| A.Resistance: 1K,2K, 5K, |
| B.Current: 4-20mA |
| C.Power: 5V,10V,12V,24V |
| D.Related digital indicator: up-limit and bottom-limit setting function |
| (relay output, analogue, RS232/485 interface) |
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting
molding machine), glass machine, printing machine, medical machine, wood and coal
mine machine and so on.
MINUO products can be used with PLC industrial control systems, servo, frequency
converter, singlechip microcomputer, supporting the use of achieve frequency control,
the precise position detection and control signal feedback ect.
 |  |  |
| KDC | KTR-C | KPY3 |
 |  |  |
| LWH | LTM | KTW-A |
 |  |  |
| KPZ34 | PKM | KTR-M |
Q: Are you trading company or manutacturer ?
A: We are factory.
Q: How long is your delivery time?
A:We are a factory. We usually have stock in stock
Q: What is your terms of payment ?
A: We accept T/T, Paypal, Western union
Q: What's your warranty ?
A: 12 months. If the items you purchased from our company are not with perfect quality or can't work normally, you can ship back for replacement or refund.
Q: What's your shipment method?
A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
