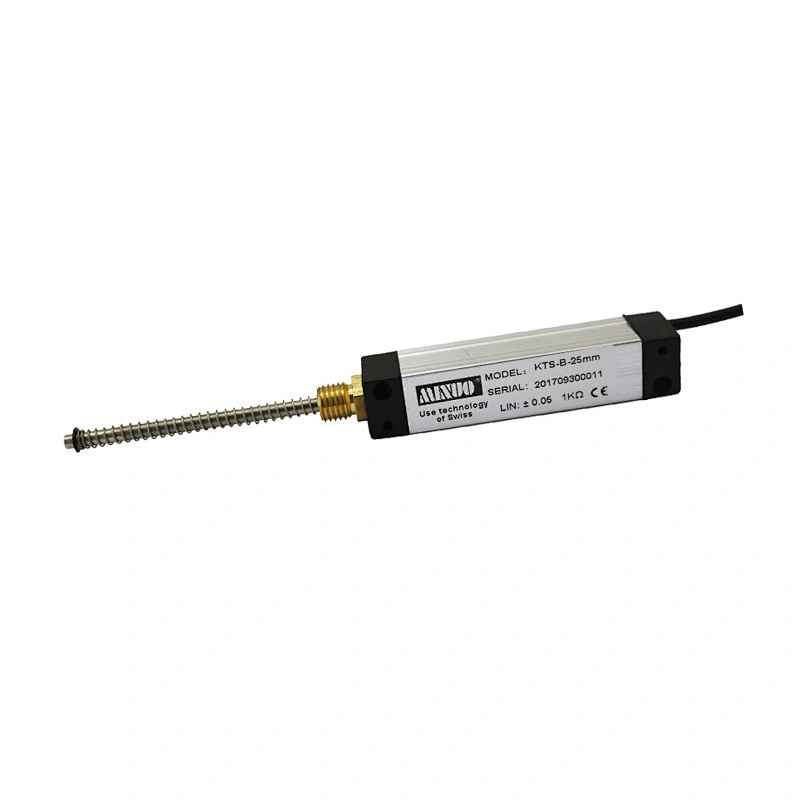

KTS-B Spring Loaded Linear Position Sensor resistive linear position transducer
Standard Dimensions:
One meter wire incloud>>
Red: Anode
Blue: Negative Electrode
Black: Output
First change the physical change of being measured targetionto the change of resistance. Then the change is orocessed via telated meassure circuic and device. Finally be displayed or recorded. So we also called it electronic rule or didital position switch. it can be used in a PLC control system for the frequenty conversion system, measuring the object distrortion ect, such as: controlling the travel of gascylinder or oil cylinder, the positive reversal-going change of the angle and so on. At same time, any position can be set as the start or stop point, and give a feedback signal. it can replace limit switch, linear slippage rheostat, Linear Variable Differential Transformer (LVDT).
Output signal mode
Output signal mode
A.Resistance: 1K,2K, 5K,10K,20K Ω
B.Current: 4-20mA
C.Power: 5V,10V,12V,24V
D.Related digital indicator: up-limit and bottom-limit setting function
(relay output, analogue, RS232/485 interface)
Product Characterist
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
Application Range
Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting
molding machine), glass machine, printing machine, medical machine, wood and coal
mine machine and so on.
MINUO products can be used with PLC industrial control systems, servo, frequency
converter, singlechip microcomputer, supporting the use of achieve frequency control,
the precise position detection and control signal feedback ect.
