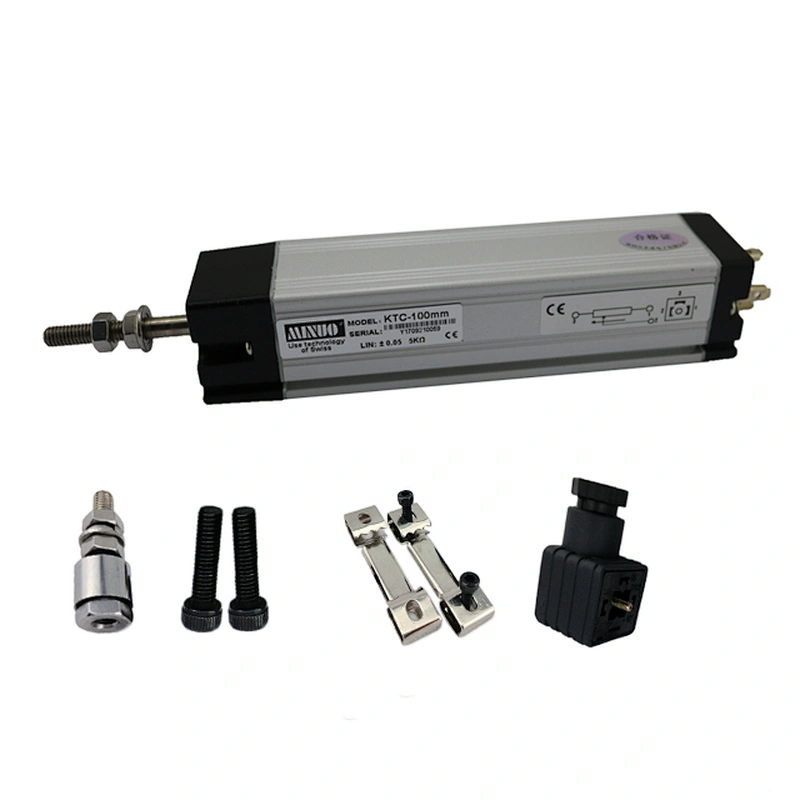

KTC Pull Pole series linear position sensors are designed for precise measurement of displacement and length. The Measuring rangeof KTC is up to 1250mmwithrepeatability of ±0.01mmandlinearity of 0.05% (model size>350mm).Its structure is designed for simple installation and reliable work. Anodized aluminiumhousing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic trackinside ,the product could run smoothly and have low-noise output signals.

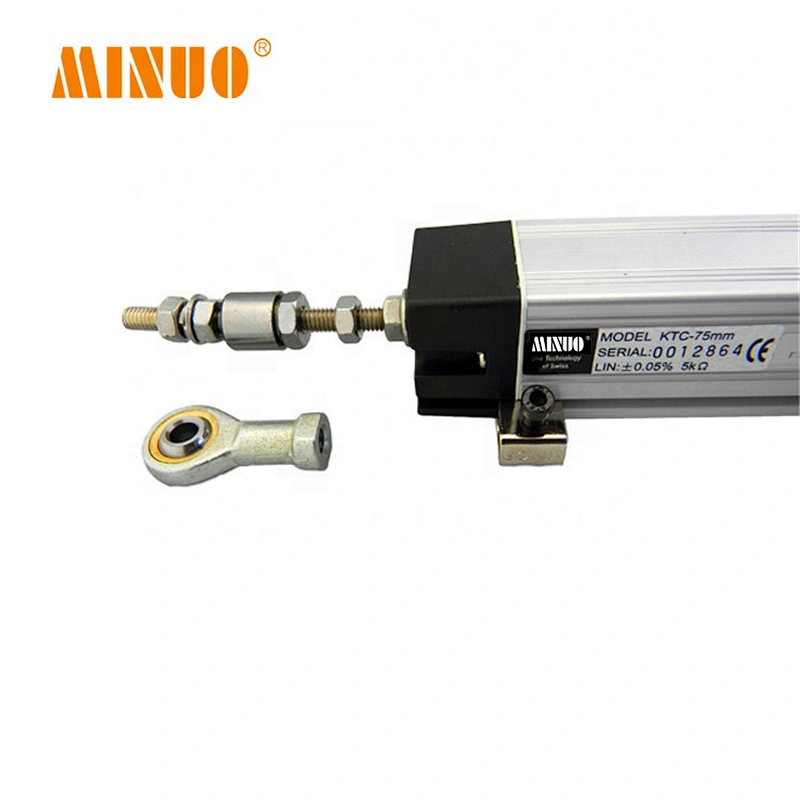

There is a cardan joint or ball-bearingcouplingat the top of pull pole to offset the effects of misalignment with the actuating part. Credited to the technology of trimming resistance, MINUOcould not only provide you with required linearity, but also any resistance you need, such as 5678Ωor8765Ω.
This picture is showing how about MINUO sensor was installed on Air Cylinder
linear potentiometer connection
Product Characterist
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
Packaging & Shipping
>>Professinal Package<<
Each KTC(pull pole style) sensor was pack in one hard paper tube
For large order and we will customize containers by customer requirement
(Order amount more than 500 pieces)
Also apply to pack the most of the sensors
Output signal mode
Output signal mode
A.Resistance: 1K,2K, 5K,10K,20K Ω
B.Current: 4-20mA
C.Power: 5V,10V,12V,24V
D.Related digital indicator: up-limit and bottom-limit setting function
