KTRB Spring loaded potentiometer linear motion position sensors of china factory

KTRB Spring loaded potentiometer linear motion position sensors of china factory

Model NO.: KTRC
Price:: USD 40.05-73.11 / pieces
Delivery: FOB
Minimum order quantity: 5 pieces
Supply Ability: 50000 pieces / Month
Country of Origin: Hongkong

Quantity:

Product Description
Basic Information

Product Description

KTR(spring inside)This is everything you will get for one whole piece>>sensorandcomponents

Technical specification of KTR
Technical specification of KTR
Measuring range	mm	10	25	50	75	100
Total electrical travel(T.E)	mm	15	26	51	76	101
Overall lenght	mm	77	107	157	207	257
Resistence	KΩ	1	1	5	5	5
Resistence tolerance	±%	20
linearity	%	0.1	0.1	0.09	0.08	0.08
Repeatability	mm	0.01
Recommended current(wiper)	μA	1
Max current(wiper)	mA	10
Max voltage	V	42
Output range		0-5V,0-10V,±5V,4-20mA
Resolution		infinite
Output smoothness	%	0.1
Insulation resistance	MΩ	≥10
Temperature Coefficient	ppm/k	5
Dimensions A	mm	52	67	92	117	142
Mechanical travel(M.T)	mm	15	26	51	76	101
Operating force	N	≤3
Operating temperature		-60······150
Vibration frequency range	Hz	5······2000
Amplitude	mm	0.8
Acceleration	g	20
Service life	cycle	100×10⁶
Operating speed	m/s	≤10

KTR>>spring inside<<KTR

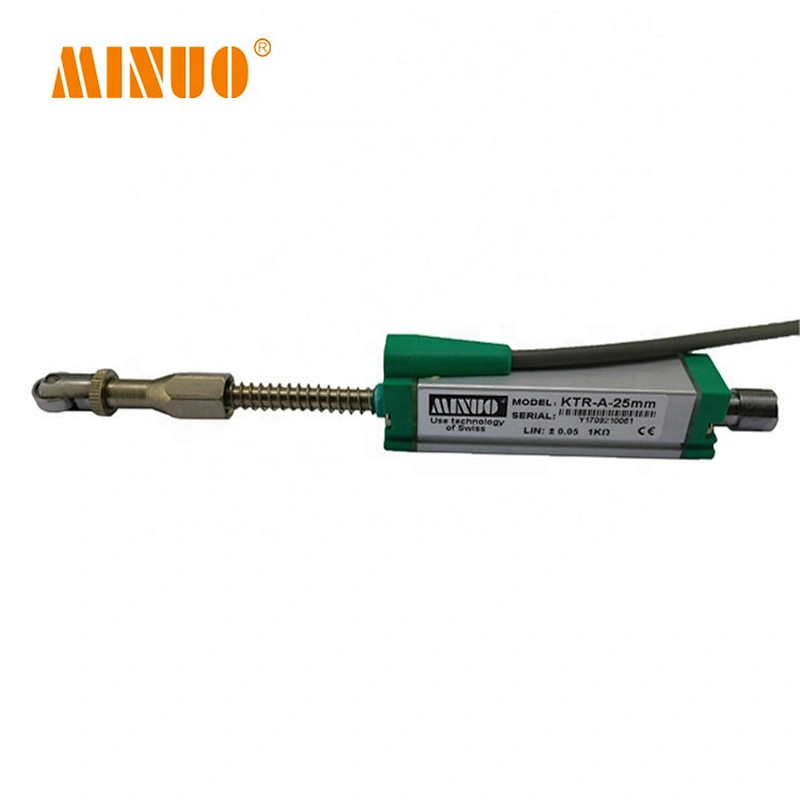

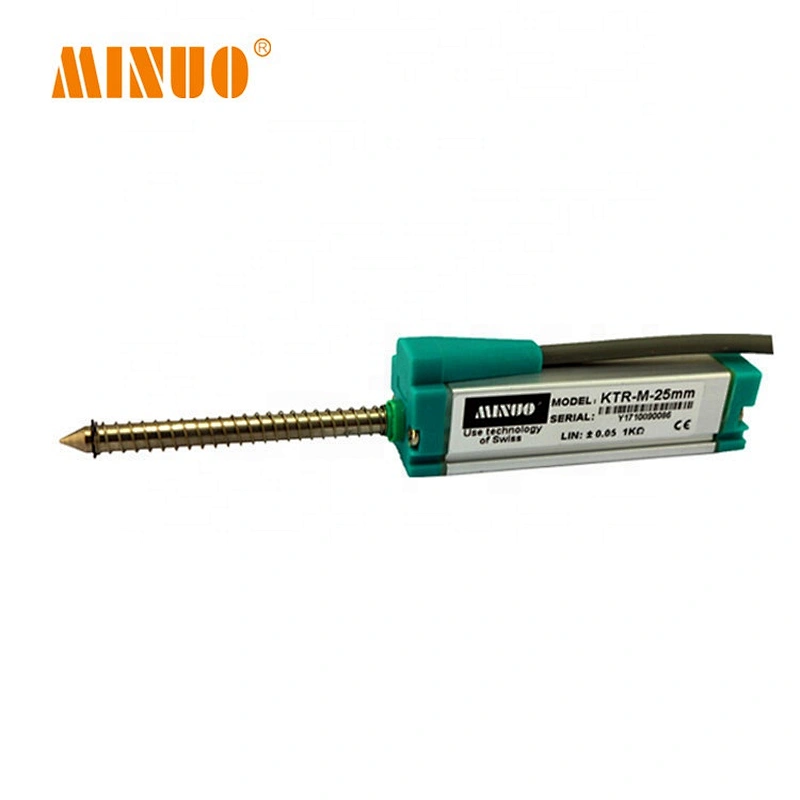

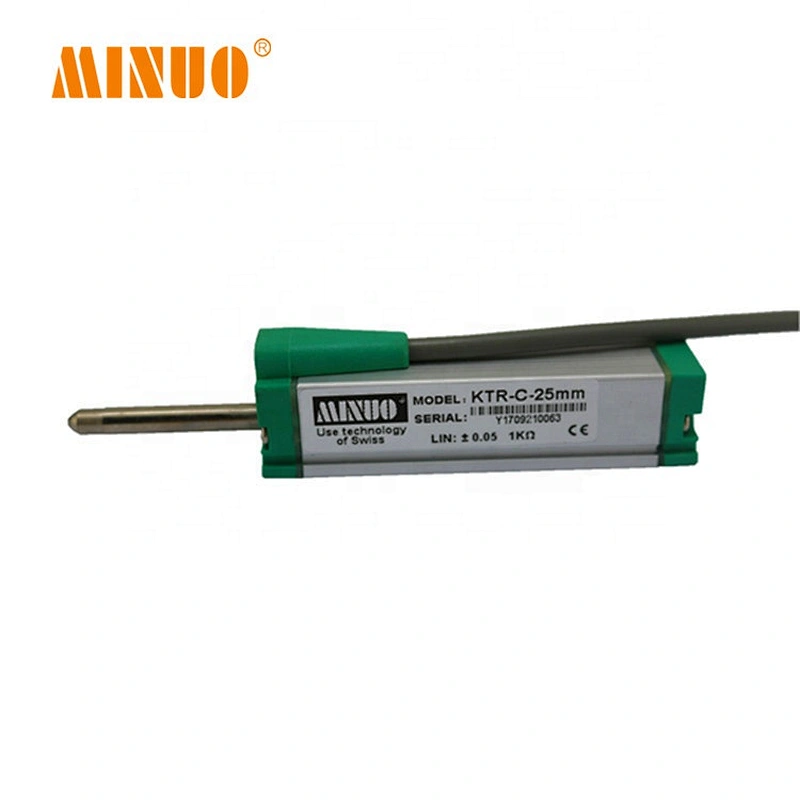

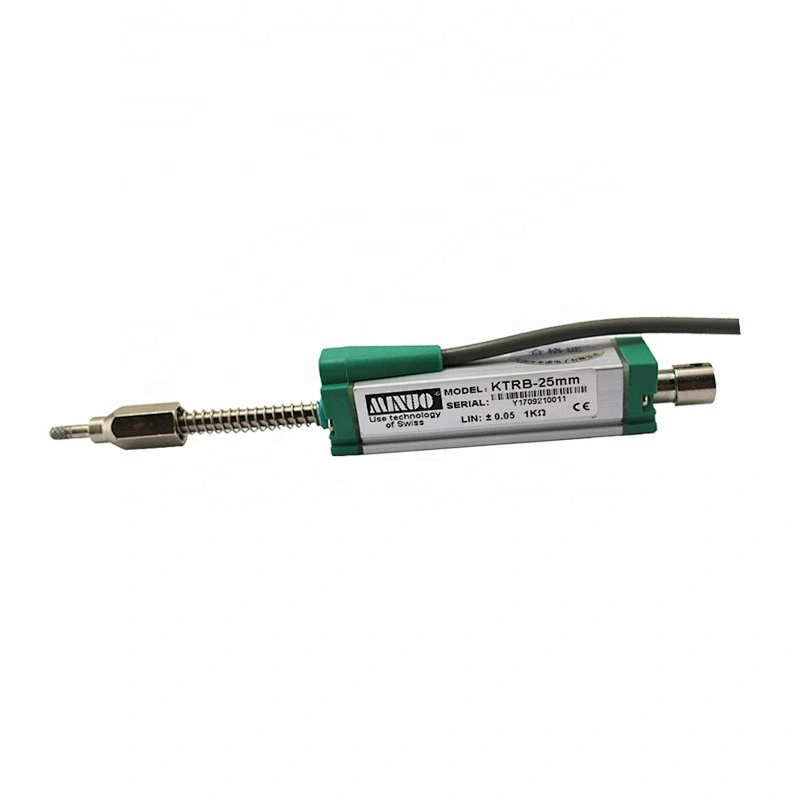

KTRauto-returnseries linear position sensors are designed for measurement of displacement under the condition of limited space. Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic trackinside, the product could run smoothly and have low-noise output signals.

AllKTR sensors has groovefor the mounting bracketsto fasten it on the machine

This kind of transducer has the function of self-returnthroughexternal springso that there is almost no requirement to connecting mechanism, just keep touch with the target.MINUO could not only provide you with required linearity, but also any resistance you need, such as 5678Ωor8765Ω.

External connected signal processing. Stroke range: 0-100mm; Analog output:0-5V, 0-10V, 4-20mA.

With 1m shield wire. Self return by the spring strength. Such as tension regulating device, speed control, material automatically conveying system, package machine, production lines etc.

For KTRC(spring inside)

We can make special measure range

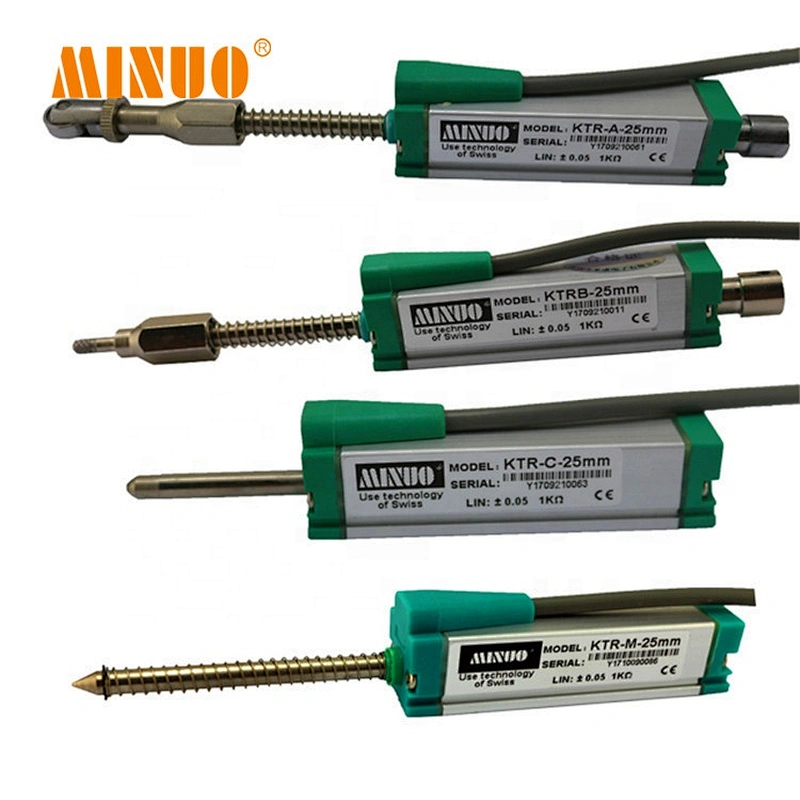

Such as the middle and the right one is KTR-30mm

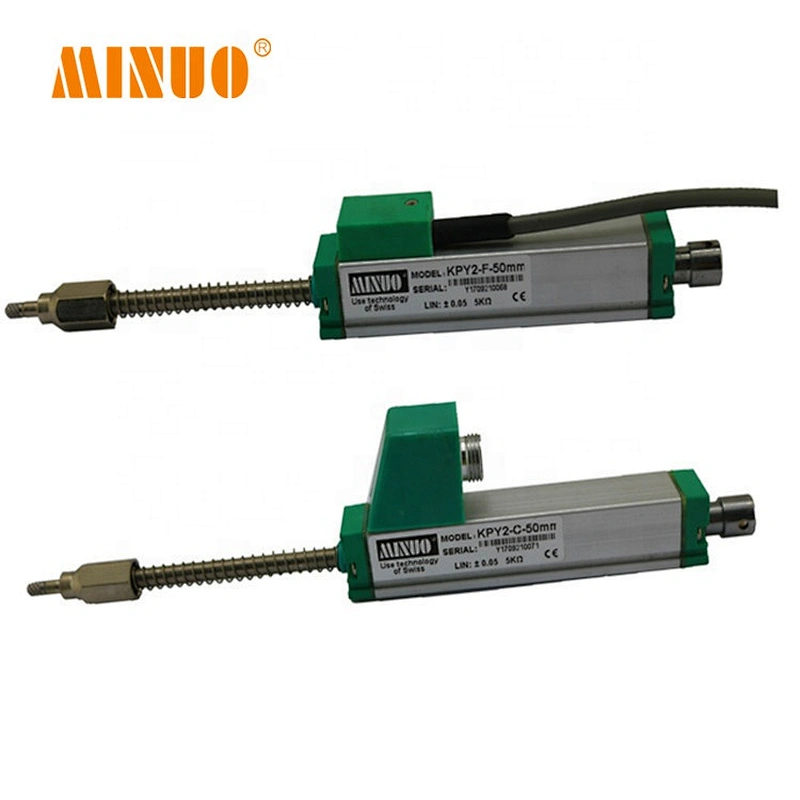

special head for measuring special places

Our products

.jpg .jpg

Output signal mode

Output signal mode

A.Resistance: 1K,2K, 5K,10K,20K Ω,

B.Current: 4-20mA

C.Power: 5V,10V,12V,24V

D.Related digital indicator: up-limit and bottom-limit setting function (relay output, analogue, RS232/485 interface)

Function Principle

First change the physical change of being measured target into the change of resistance,

then the change is orocessed via related measure circuic and device. Finally be displayed

or recorded. So we also called it electronic rule or digital position switch. It can be used in

a PLC control system for the frequenty conversion system, measuring the object distortion

etc, such as:controlling the travel of gas cylinder or oil cylinder, the positive &reversal-going change of the angle and so on. At same time, any position can be set as the start or stop point,

and givea feedback signal. It can replace limit switch, linear slippage rheostat, Linear Variable

Differential Transformer (LVDT)

Company Information

The joint efforts of the engineering and technical personnel of the Company, the MINUO series product being continue to improve by customers and the relevant departments of actual testing in the last eleven years, performance and quality of our products have reached international advanced level. Therefor MINUO brand has a higher visibility in the industry.

MINUO series displacement sensor consists of four parts:

1.Aluminum housing. Surface anode electrophoresis, the internal structural designed by finite element analysis, high strength, flexural torsional capacity is outstanding. MINUO series products not only has the appearance of smooth, delicate touch, but also with strong corrosion resistance, field operations can be carried out without external protection status.

2.Multi-touch brush.The company has imported special composite material (rare metal brush material) of aviation from European, the brush was made through inlaying 0.03mm precious metals(It was laudatory named as metal diamond with high abrasion resistance, corrosion resistance and excellent electrical conductivity) on 0.07mm substrate material surface by the world top technology, effectively improve the brush wear and conductive properties. Multi-finger design to make the brush to keep strength and elasticity, aslo ensure brush always being connect well with the resistor substrate in vibration condition, this multi-contact safety design concept makes the contact resistance of minoxidil products always maintain a steady state lay a solid foundation for improving product linearity.

.jpg

Imported Multi-touch Brush

3.Stainless steel rod. The rod was connected flexible by using universal joints or ball coupling to compensate for part of the installation angle, reducing the accuracy requirements for installing, allowing the angle deviation of installation .

4.Shaft sealing rings. It is the main factor to determine the grade of product protection. We use two-way shaft sealing technology, raw material was good at oil proof, wear ability, seal performance, so our transducers has good effect at the dust, oil resistant and water proof performanc.

Factory
