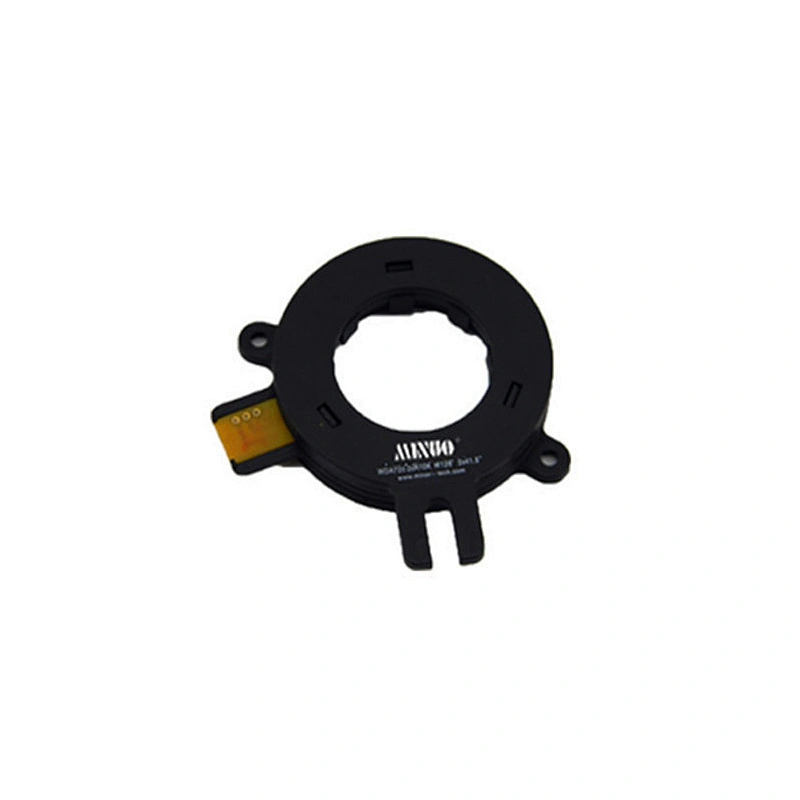

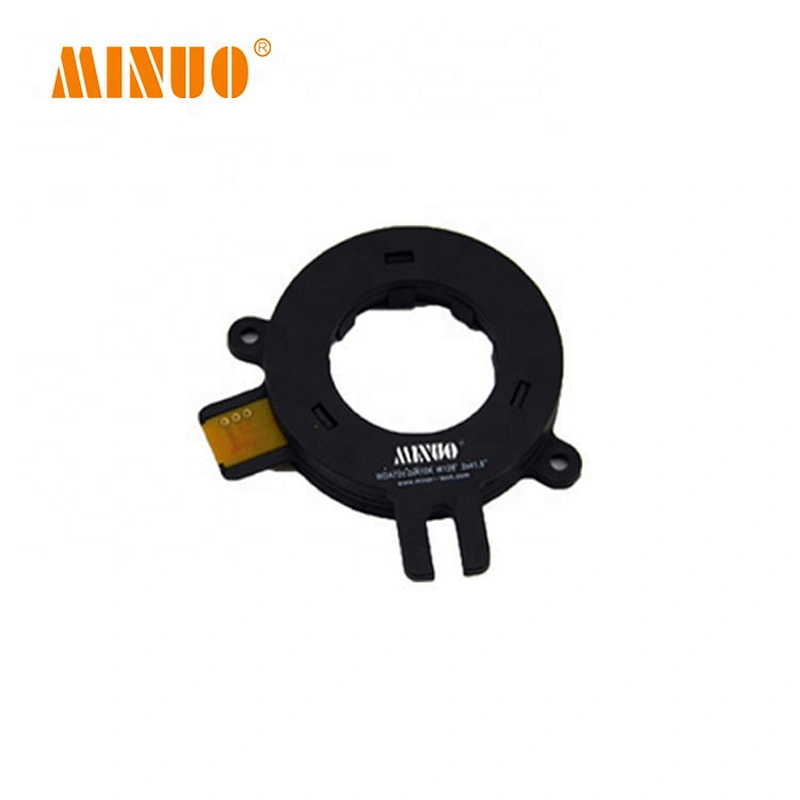

WDA-720 bobbin winder tracker for Textile Machinery MINUO replace POL720 WAL600
Product Description
rotary sensor for Textile Machinery
Features
A. Service life 500000 cycles
B. Protection class IP50
C. Linearity 0.5%
D. EL.Angel 41.5°+43.5°
A. Service life 500000 cycles
B. Protection class IP50
C. Linearity 0.5%
D. EL.Angel 41.5°+43.5°
| Electrical Specifications | Mechanical Specifications | ||
| Resistance | 2×10KΩ | Rotar number | 500,000 cycles |
| Resistance Error | ±20% | Mechanical angle | 126° |
| Electrical Angle | 41.5°+43.5° | Protection class | IP50 |
| Independent Linearity | 0.5% | Torque | typ.0.7cNm |
| Power Rating | 0.5W/Ta40°C | ||
| Recommended Current | <.1μA | ||
| Maximum Current | 10mA | ||
| Maximum Resistance of wiper | 500 | ||
| Insulation resistance | 10GΩ/500VDC | ||
| Withstand Voltage | 1000VAC/1min | ||
| Tempurature Coefficient | 50ppm/°C | ||
| Voltage Divider T.C. | 10ppm/°C | ||
Enviromental Specifications | Materials | ||
| Storage Temperature | -40 +105°C | Housing | Thermoplastic |
| Operating Temperature | -25°C +85°C | Rotor | Thermoplastic |
| Climate Type(German Standard) | 25/085/56 | Connector | 3 pins stecker |
| Shock | 50G | ||
| Vibration | 10G | ||
TheWDA-720angle transducer is specially designed for Printing machine andtextile machinery.Built with conductive plastic resistanceandmulti-fingered wipers ,WDA-720 provides a voltage feedback signal for rotational position with superb linearity and resolution.
