- Place of Origin:CN;GUA
- Usage:Position Sensor
- Theory:Resistance Sensor
- Output:Analog Sensor
- Brand Name:MINUO
- Model Number:WDA-D35-BZ-360°

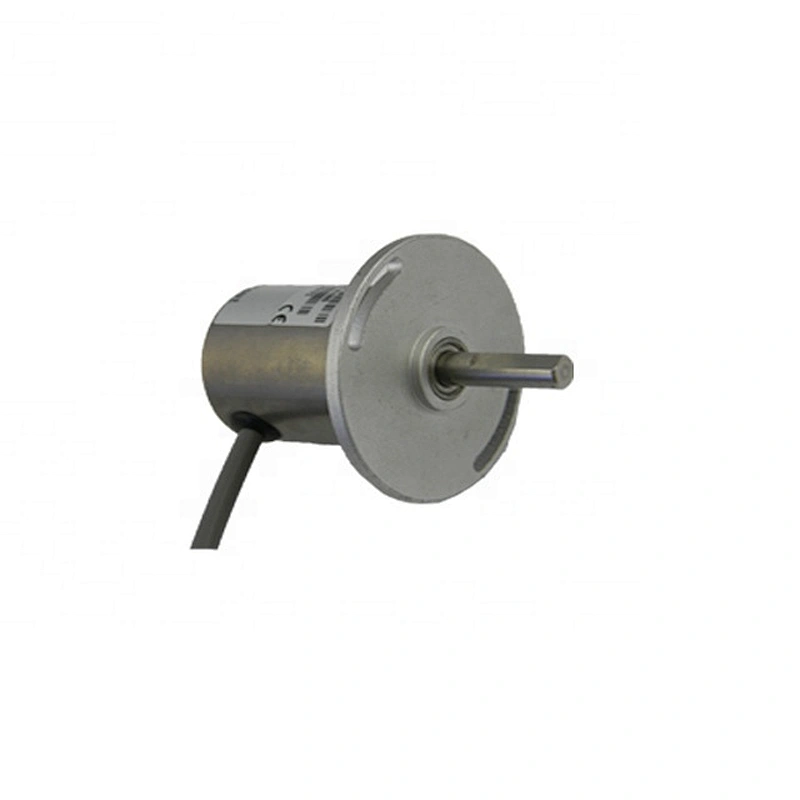

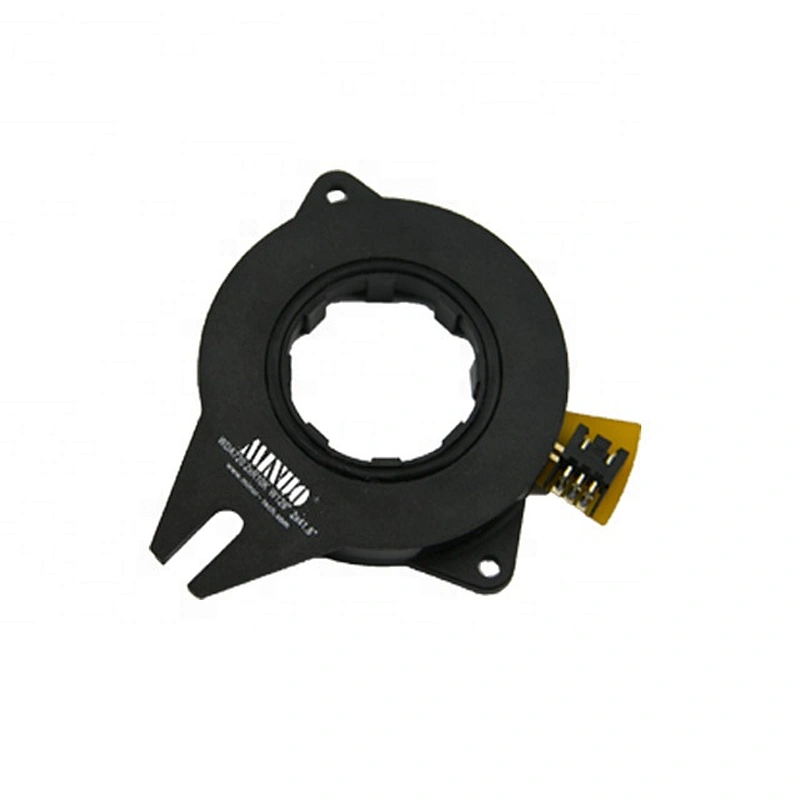

Angular displacement sensor
3
Low output voltage can not reach absolute 0V, the lowest 0.05V; There is 1° of the nonlinear zone between 0° and 360° during 0-360° circle measuring. Recommend use 5°-355° measurement range to ensure the output signal linearity.
| Output signal mode |
| A.Resistance: 1K,2K, 5K,10K,20K Ω |
| B.Current: 4-20mA |
| C.Power: 5V,10V,12V,24V |
| D.Related digital indicator: up-limit and bottom-limit setting function |
| (relay output, analogue, RS232/485 interface) |
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting
molding machine), glass machine, printing machine, medical machine, wood and coal
mine machine and so on.
MINUO products can be used with PLC industrial control systems, servo, frequency
converter, singlechip microcomputer, supporting the use of achieve frequency control,
the precise position detection and control signal feedback ect.
 |  |  |
| KDC | KTR-C | KPY3 |
 |  |  |
| LWH | LTM | KTW-A |
 |  |  |
| KPZ34 | PKM | KTR-M |
