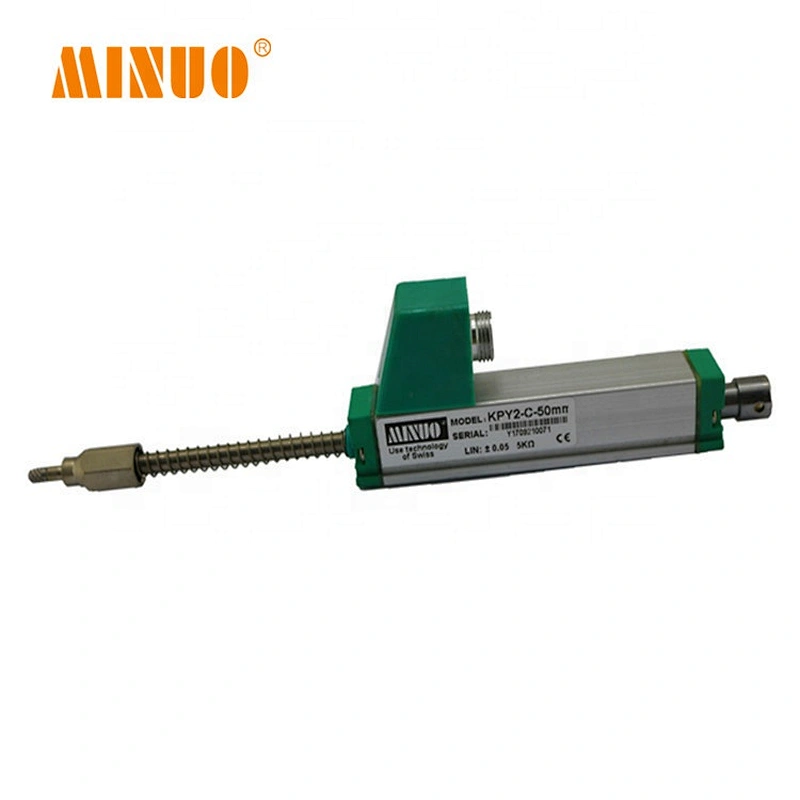

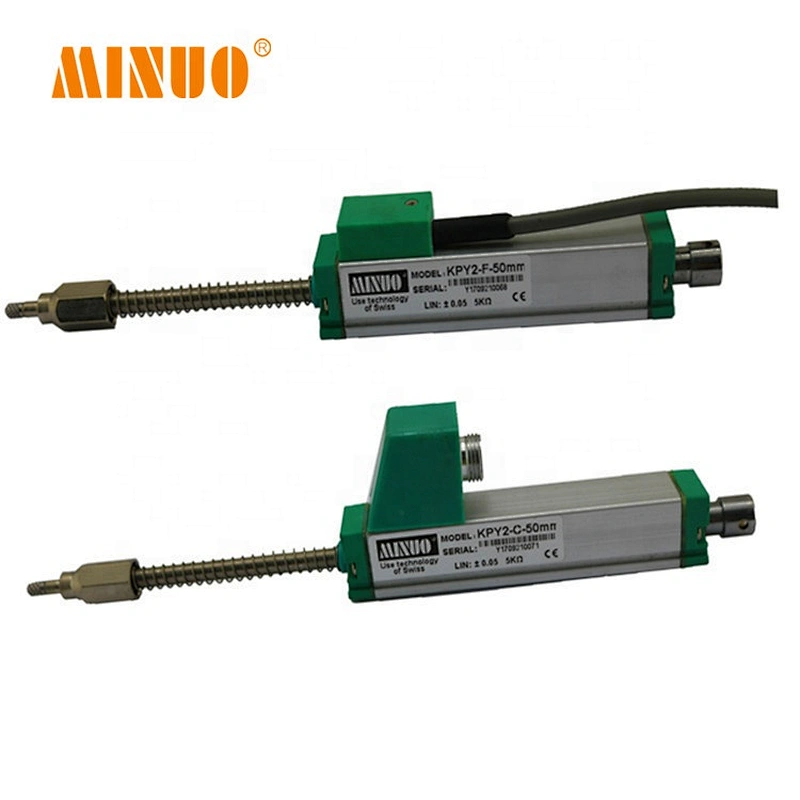

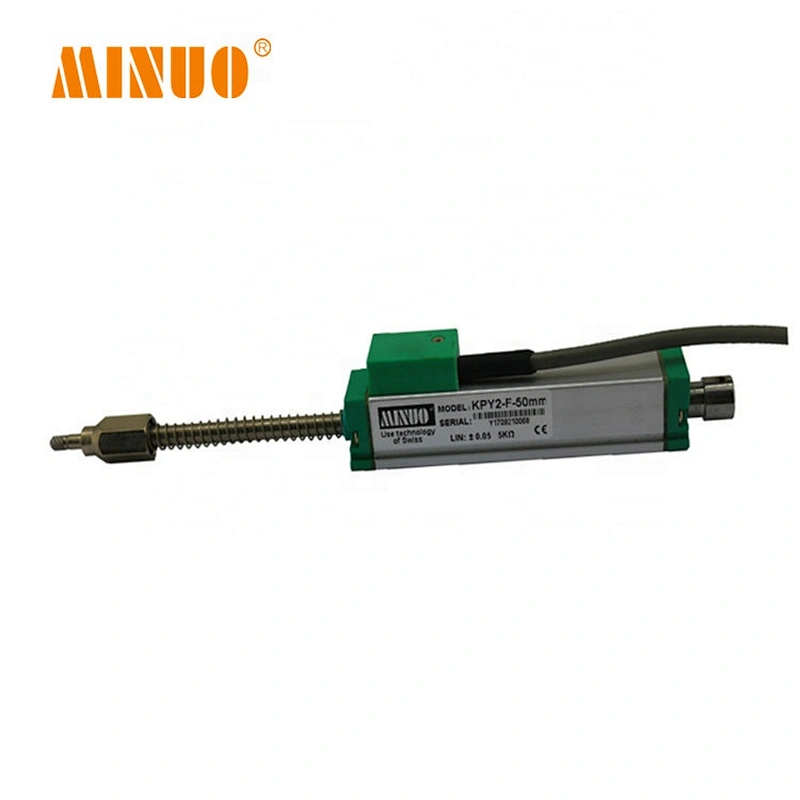

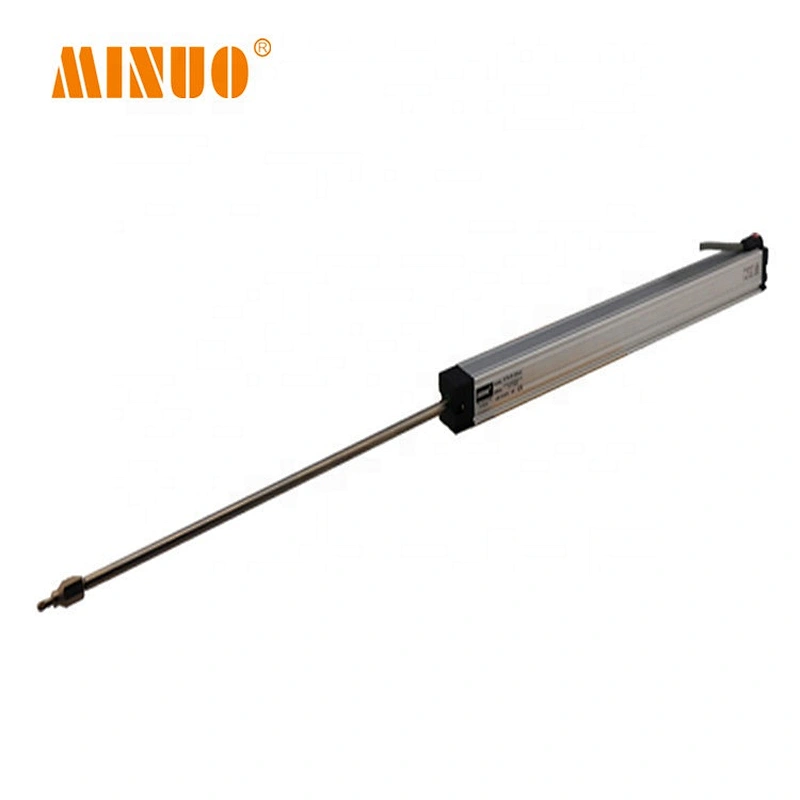

KTR-B linear displacement transducers electronic linear scale

KTR-B linear displacement transducers electronic linear scale

Model NO.: KTRB
Price:: USD 40.05-73.11 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 50000 piece / Month
Country of Origin: Hongkong or Shenzhen

Quantity:

Product Description
Basic Information

Product Characterist

1.Simple structure, small size, light weight, affordable, but with stable and high

precision quality.

2.Less impact generated by the environment (Such as temperature, humidity,

magnetic interfere etc).

3.Any function of input and output can be implemented.

4.Strong output signal, normally no need to additional amplifier.

5.Suitable for the condition which any optical rule or rotary encode can not be used.

6.Easily installing and maintaining.

7.Save mechanical costs about 30%

Product Description

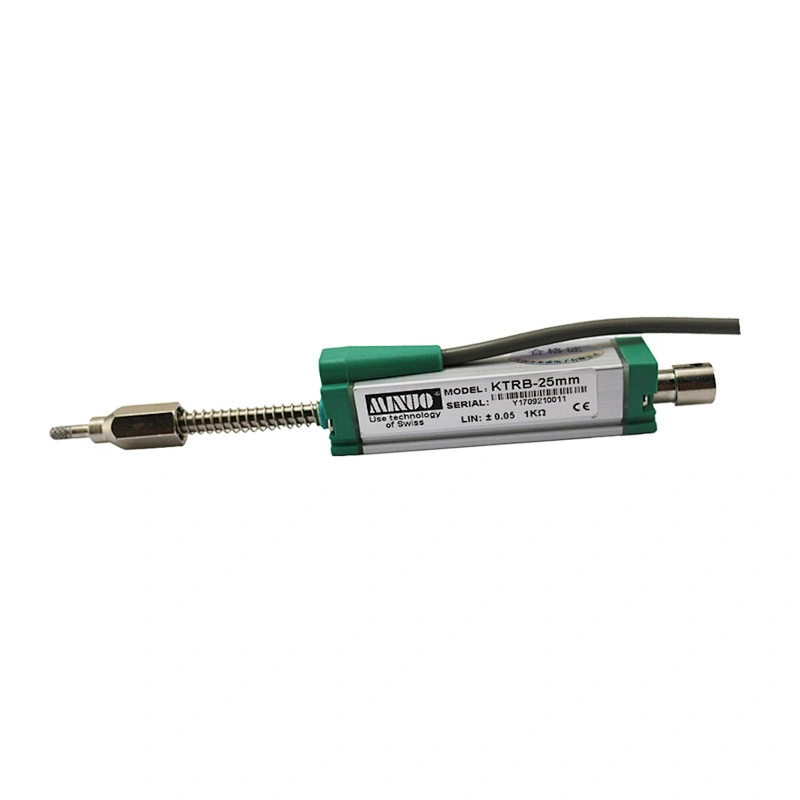

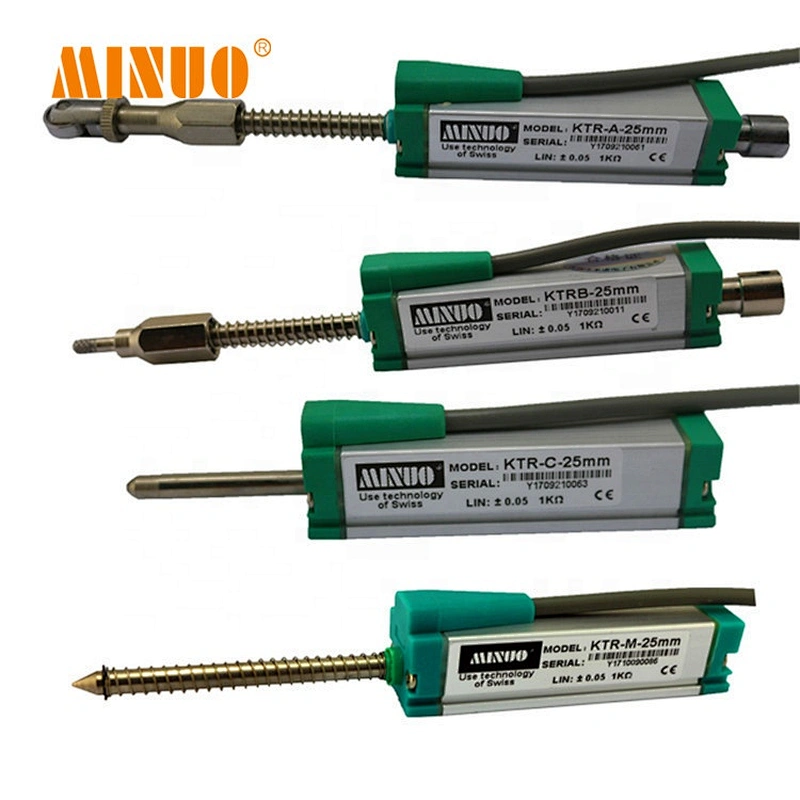

KTR(Ball-bearing gauge head)This is everything you will get for one whole piece>>sensor and components

Technical specification of KTR
Technical specification of KTR
Measuring range	mm	10	25	50	75	100
Total electrical travel(T.E)	mm	11	26	51	76	101
Overall lenght	mm	127	157	207	257	307
Resistence	KΩ	1	1	5	5	5
Resistence tolerance	±%	20
linearity	%	0.1	0.1	0.09	0.08	0.08
Repeatability	mm	0.01
Recommended current(wiper)	μA	1
Max current(wiper)	mA	10
Max voltage	V	42
Output range		0-5V,0-10V,±5V,4-20mA
Resolution		infinite
Output smoothness	%	0.1
Insulation resistance	MΩ	≥10
Temperature Coefficient	ppm/k	5
Dimensions A	mm	52	67	92	117	142
Mechanical travel(M.T)	mm	14	30	55	80	105
Operating force	N	≤3
Operating temperature		-60······150
Vibration frequency range	Hz	5······2000
Amplitude	mm	0.8
Acceleration	g	20
Service life	cycle	100×10⁶
Operating speed	m/s	≤10

One meter wire incloud>>Red:Anode,Blue:Negative Electrode,Black:Output

KTR auto-return series linear position sensors are designed for measurement of displacement under the condition of limited space. Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic trackinside, the product could run smoothly and have low-noise output signals.

All KTR sensors has groovefor the mounting bracketsto fasten it on the machine

This kind of transducer has the function of self-returnthroughexternal springso that there is almost no requirement to connecting mechanism, just keep touch with the target.MINUO could not only provide you with required linearity, but also any resistance you need, such as 5678Ωor8765Ω.

Professinal Package: each sensor was packed in one hard paper tube

Output signal mode

Output signal mode

A.Resistance: 1K,2K, 5K,10K,20K Ω,

B.Current: 4-20mA

C.Power: 5V,10V,12V,24V

D.Related digital indicator: up-limit and bottom-limit setting function (relay output, analogue, RS232/485 interface)
