KTF-700mm Injection molding machine displacement sensor 10k linear slide potentiometer

KTF-700mm Injection molding machine displacement sensor 10k linear slide potentiometer

Model NO.: KTF-700mm
Price:: USD 43.04-131.00 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 50000 piece / Month
Country of Origin: Hongkong or Shenzhen

Quantity:

Product Description
Basic Information

Place of Origin:CN;GUA
Usage:Position Sensor
Theory:Resistance Sensor
Output:Analog Sensor
Brand Name:MINUO
Model Number:KTF-700mm
Amplifier Type:Analog Output
Resolution (Bits):Not Applicable
Interface:Analog
Technology:Resistive
Description:displacement sensor
Voltage - Supply:5V/10/12V/24V
Output Type:0-5/0-10v/4-20mA

KTF slider resistance-type linear displacement sensor

Standard Dimensions:

KTF

One meter wire incloud>>

Red: Anode

Blue: Negative Electrode

Black: Output

KTF pull Pole series linear position sensors are designed for measurement of displacement under the condition of limited space. Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic track inside, the product could run smoothly and have low-noise output signals.

The transducer can be connected to mechanical input by an universal joint, so small deviation of installation angle is tolerable. Credited to the technology of trimming resistance , minuo could not only provide you with required linearity, but also any resistance you need, such as 5678Ω or 8765Ω.

Output signal mode

A.Resistance: 1K,2K, 5K,10K,20K Ω

B.Current: 4-20mA

C.Power: 5V,10V,12V,24V

D.Related digital indicator: up-limit and bottom-limit setting function

(relay output, analogue, RS232/485 interface)

Product Characterist

1.Simple structure, small size, light weight, affordable, but with stable and high

precision quality.

2.Less impact generated by the environment (Such as temperature, humidity,

magnetic interfere etc).

3.Any function of input and output can be implemented.

4.Strong output signal, normally no need to additional amplifier.

5.Suitable for the condition which any optical rule or rotary encode can not be used.

6.Easily installing and maintaining.

7.Save mechanical costs about 30%

Application Range

Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting

molding machine), glass machine, printing machine, medical machine, wood and coal

mine machine and so on.

MINUO products can be used with PLC industrial control systems, servo, frequency

converter, singlechip microcomputer, supporting the use of achieve frequency control,

the precise position detection and control signal feedback ect.

Product Description


KDC	KTR-C	KPY3

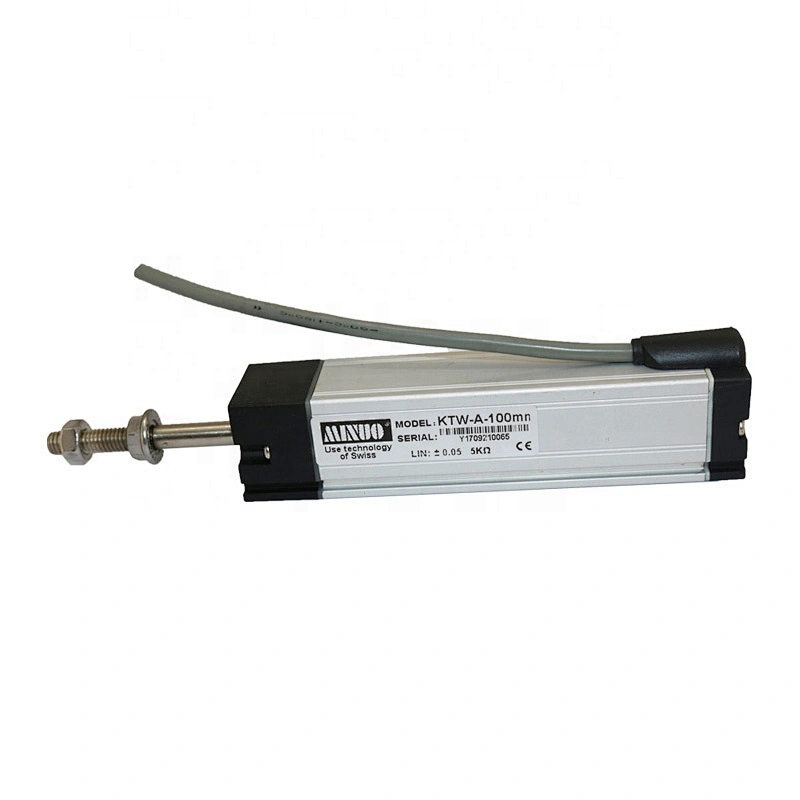

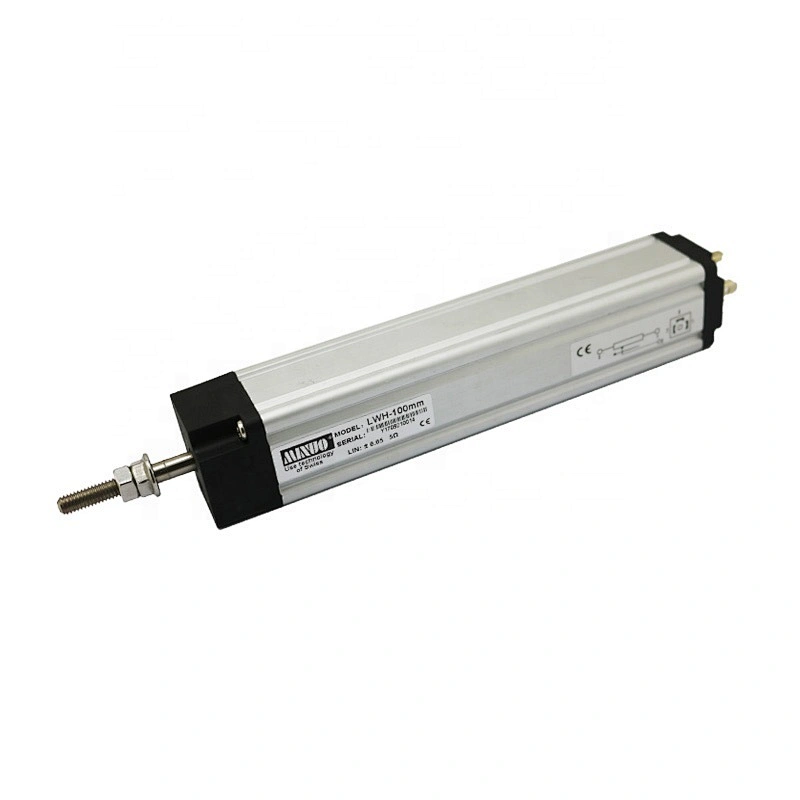

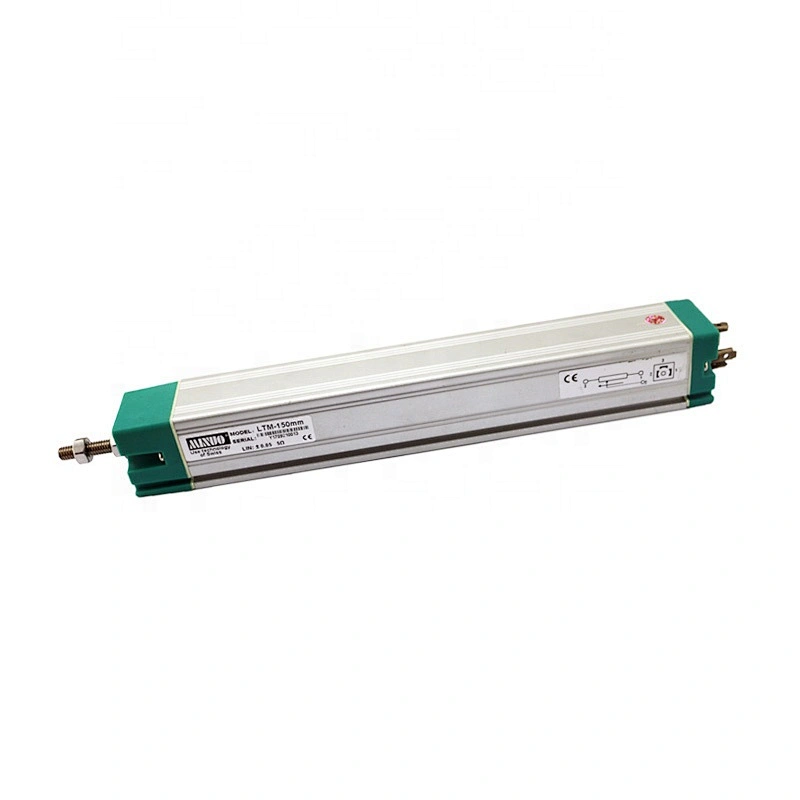

LWH	LTM	KTW-A

KPZ34	PKM	KTR-M

Factory

Certificate

FAQ

Q: Are you trading company or manutacturer ?

A: We are factory.

Q: How long is your delivery time?

A:We are a factory. We usually have stock in stock

Q: What is your terms of payment ?

A: We accept T/T, Paypal, Western union or money gramm.

Q: What's your warranty ?

A: 12 months. If the items you purchased from our company are not with perfect quality or can't work normally, you can ship back for replacement or refund.

Q: What's your shipment method?

A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
