KTC-150mm Linear Position Sensor and Components
KTC Pull Pole series linear position sensors are designed for precise measurement of displacement and length. The Measuring rangeof KTC is up to 1250mmwithrepeatability of ±0.01mmandlinearity of 0.05% (model size>350mm).Its structure is designed for simple installation and reliable work. Anodized aluminiumhousing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic trackinside ,the product could run smoothly and have low-noise output signals.
The joint efforts of the engineering and technical personnel of the Company, the MINUO series product being continue to improve by customers and the relevant departments of actual testing in the last eleven years, performance and quality of our products have reached international advanced level. Therefor MINUO brand has a higher visibility in the industry.
MINUO series displacement sensor consists of four parts:
1.Aluminum housing. Surface anode electrophoresis, the internal structural designed by finite element analysis, high strength, flexural torsional capacity is outstanding. MINUO series products not only has the appearance of smooth, delicate touch, but also with strong corrosion resistance, field operations can be carried out without external protection status.
2.Multi-touch brush.The company has imported special composite material (rare metal brush material) of aviation from European, the brush was made through inlaying 0.03mm precious metals(It was laudatory named as metal diamond with high abrasion resistance, corrosion resistance and excellent electrical conductivity) on 0.07mm substrate material surface by the world top technology, effectively improve the brush wear and conductive properties. Multi-finger design to make the brush to keep strength and elasticity, aslo ensure brush always being connect well with the resistor substrate in vibration condition, this multi-contact safety design concept makes the contact resistance of minoxidil products always maintain a steady state lay a solid foundation for improving product linearity.

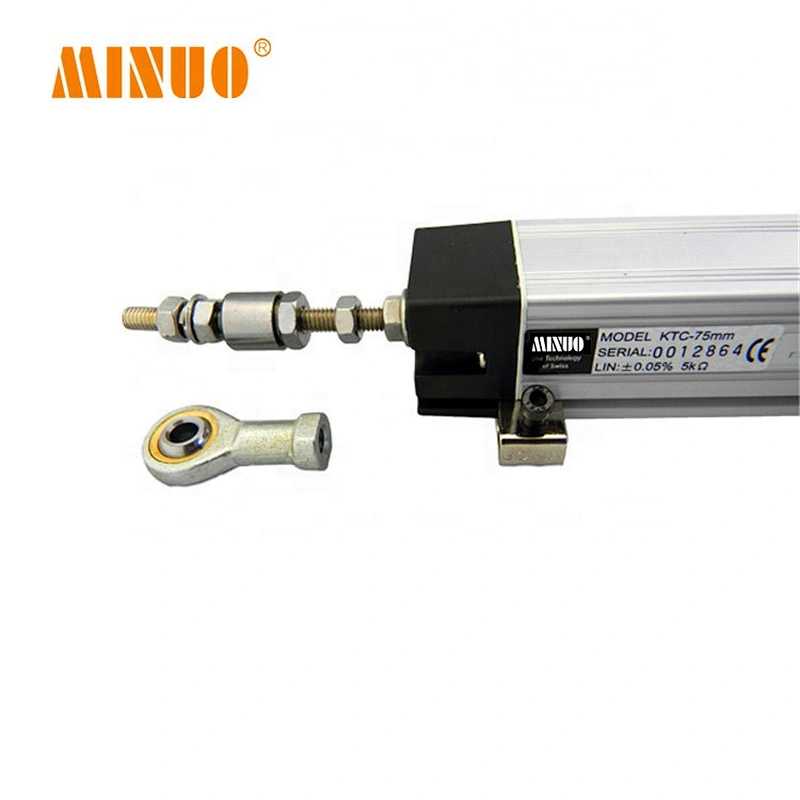

3.Stainless steel rod. The rod was connected flexible by using universal joints or ball coupling to compensate for part of the installation angle, reducing the accuracy requirements for installing, allowing the angle deviation of installation .
4.Shaft sealing rings. It is the main factor to determine the grade of product protection. We use two-way shaft sealing technology, raw material was good at oil proof, wear ability, seal performance, so our transducers has good effect at the dust, oil resistant and water proof performanc.
| Output signal mode |
| A.Resistance: 1K,2K, 5K,10K,20K Ω |
| B.Current: 4-20mA |
| C.Power: 5V,10V,12V,24V |
| D.Related digital indicator: up-limit and bottom-limit setting function |
| (relay output, analogue, RS232/485 interface) |
