linear displacement sensor KTC-200mm 5K ohm 5V or 24V

linear displacement sensor KTC-200mm 5K ohm 5V or 24V

Model NO.: KTC-200mm
Price:: USD 56.00-56.00
Delivery: FOB

Quantity:

Product Description
Basic Information

Product Characterist

1.Simple structure, small size, light weight, affordable, but with stable and high

precision quality.

2.Less impact generated by the environment (Such as temperature, humidity,

magnetic interfere etc).

3.Any function of input and output can be implemented.

4.Strong output signal, normally no need to additional amplifier.

5.Suitable for the condition which any optical rule or rotary encode can not be used.

6.Easily installing and maintaining.

7.Save mechanical costs about 30%

Application Range

Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting

molding machine), glass machine, printing machine, medical machine, wood and coal

mine machine and so on.

MINUO products can be used with PLC industrial control systems, servo, frequency

converter, singlechip microcomputer, supporting the use of achieve frequency control,

the precise position detection and control signal feedback ect.

Output signal mode

Output signal mode

A.Resistance: 1K,2K, 5K,10K,20K Ω,

B.Current: 4-20mA

C.Power: 5V,10V,12V,24V

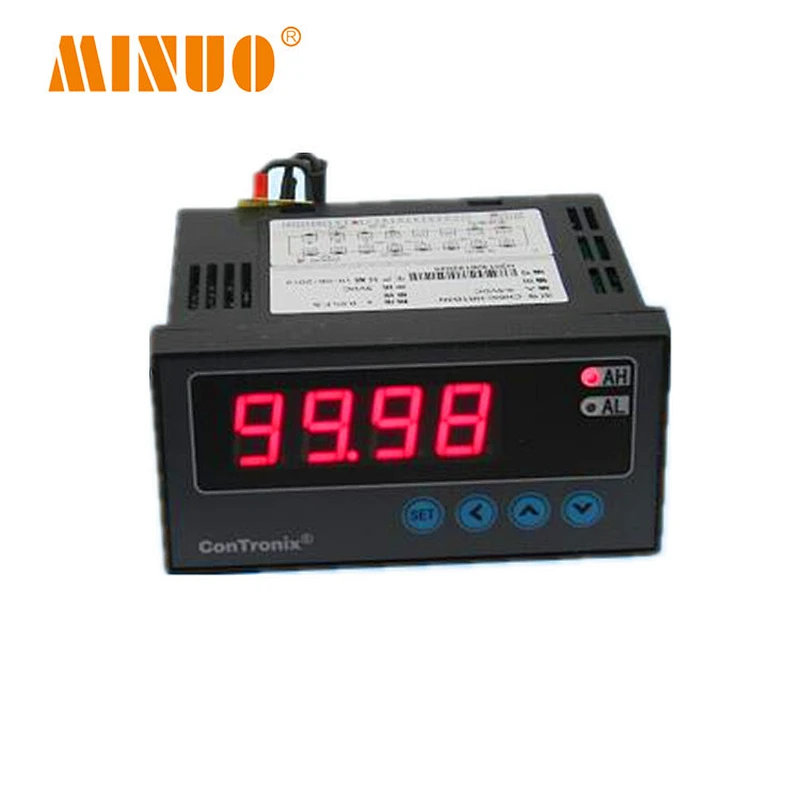

D.Related digital indicator: up-limit and bottom-limit setting function (relay output, analogue, RS232/485 interface)

Mechanical drawing

Product Description

Technical specification of KTC
Technical specification of KTC
Model	Unit	75	100	125	150	175	200	225	250	275	300	325	350	375	400	425
Measuring range	mm	75	100	125	150	175	200	225	250	275	300	325	350	375	400	425
Total electrical travel(T.E)	mm	80	105	130	155	180	205	230	255	280	305	330	355	380	405	430
Resistence	KΩ	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5
Resistence tolerance	±%	20
linearity	%	0.1	0.1	0.09	0.08	0.08	0.08	0.08	0.07	0.07	0.06	0.06	0.05	0.05	0.05	0.05
Repeatability	mm	0.01
Recommended current(wiper)	μA	1
Max current(wiper)	mA	10
Max voltage	V	42
Output range		0-5V,0-10V,4-20mA
Resolution		infinite
Output smoothness	%	0.1
Insulation resistance	MΩ	≥10
Temperature Coefficient	ppm/k	5
Dimensions A	mm	152	177	202	227	252	277	302	327	352	377	402	427	452	477	502
Mechanical travel(M.T) B	mm	82	117	142	167	192	217	242	267	292	317	342	367	392	417	442
Operating force	N	≤3
Operating temperature		-60······150
Vibration frequency range	Hz	5······2000
Amplitude	mm	0.8
Acceleration	g	20
Service life	cycle	100×10⁶
Operating speed	m/s	≤10
Model	Unit	450	475	500	550	600	650	700	750	800	850	900	950	1000	1150	1250
Measuring range	mm	450	475	500	550	600	650	700	750	800	850	900	950	1000	1150	1250
Total electrical travel(T.E)	mm	455	480	505	555	605	655	705	755	805	855	330	955	1005	1155	1255
Resistence	KΩ	5	5	5	5	10	10	10	10	10	10	10	10	10	10	10
Resistence tolerance	±%	20
linearity	%	0.05	0.05	0.05	0.05	0.05	0.05	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.03	0.03
Repeatability	mm	0.01
Recommended current(wiper)	μA	1
Max current(wiper)	mA	10
Max voltage	V	42
Output range		0-5V,0-10V,4-20mA
Resolution		infinite
Output smoothness	%	0.1
Insulation resistance	MΩ	≥10
Temperature Coefficient	ppm/k	5
Dimensions A	mm	527	552	577	627	677	727	777	827	877	927	977	1027	1077	1227	1327
Mechanical travel(M.T) B	mm	457	492	517	567	617	667	717	767	817	867	917	967	1017	1167	1267
Operating force	N	≤3
Operating temperature		-60······150
Vibration frequency range	Hz	5······2000
Amplitude	mm	0.8
Acceleration	g	20
Service life	cycle	100×10⁶
Operating speed	m/s	≤10

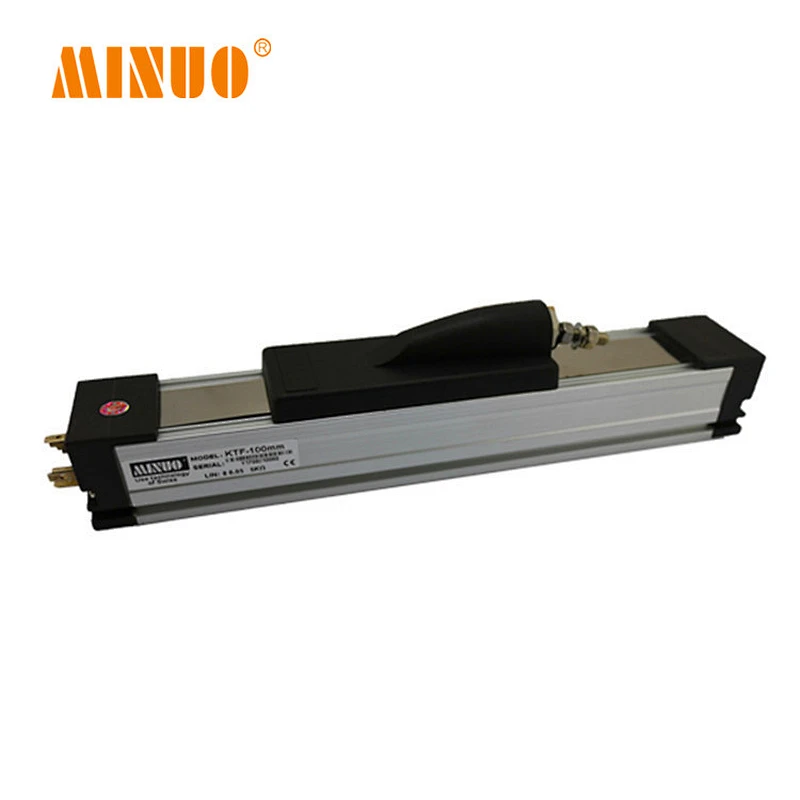

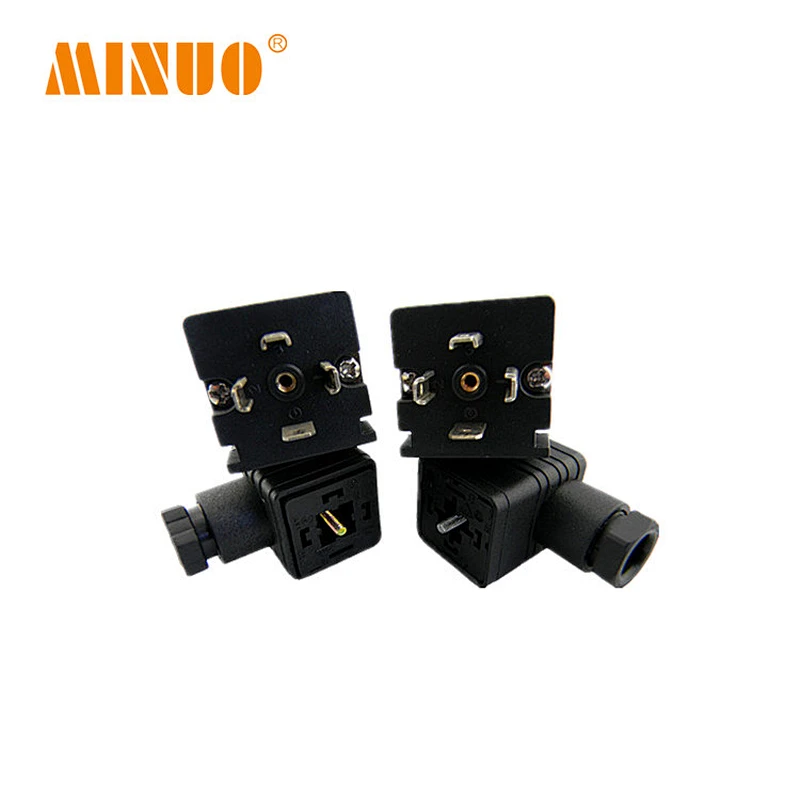

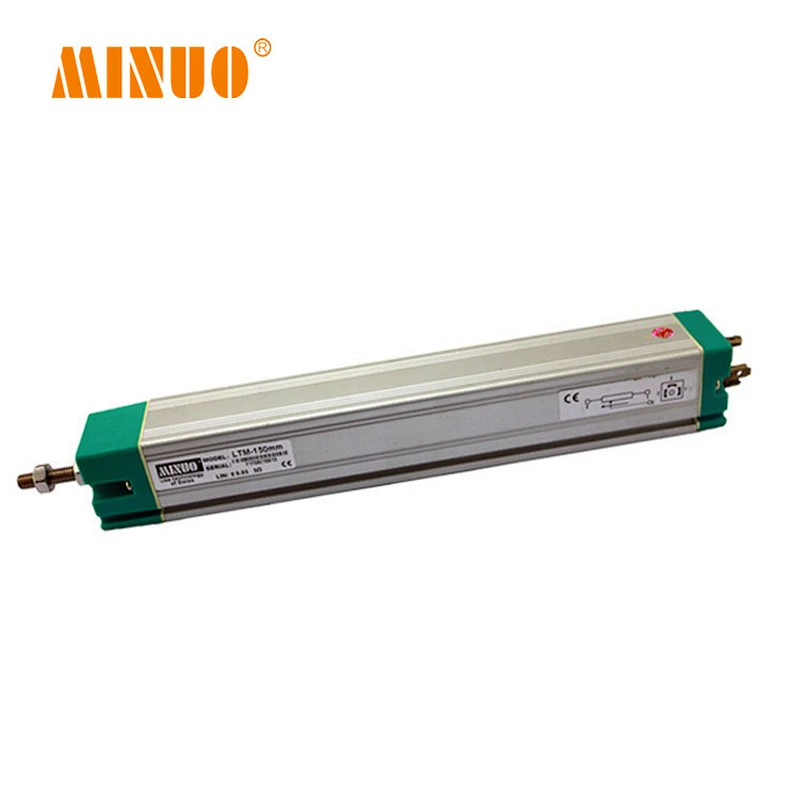

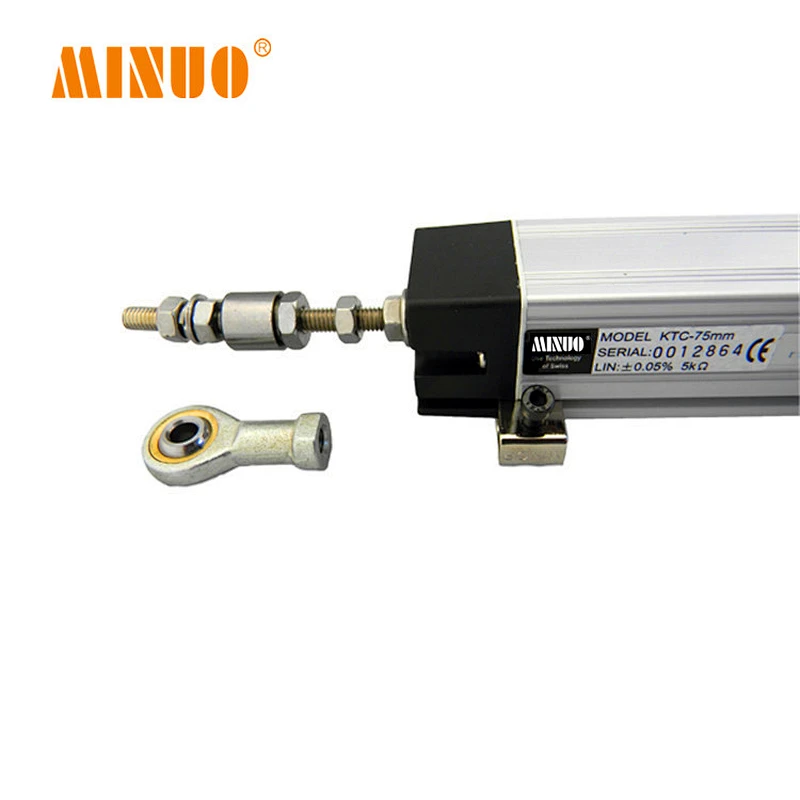

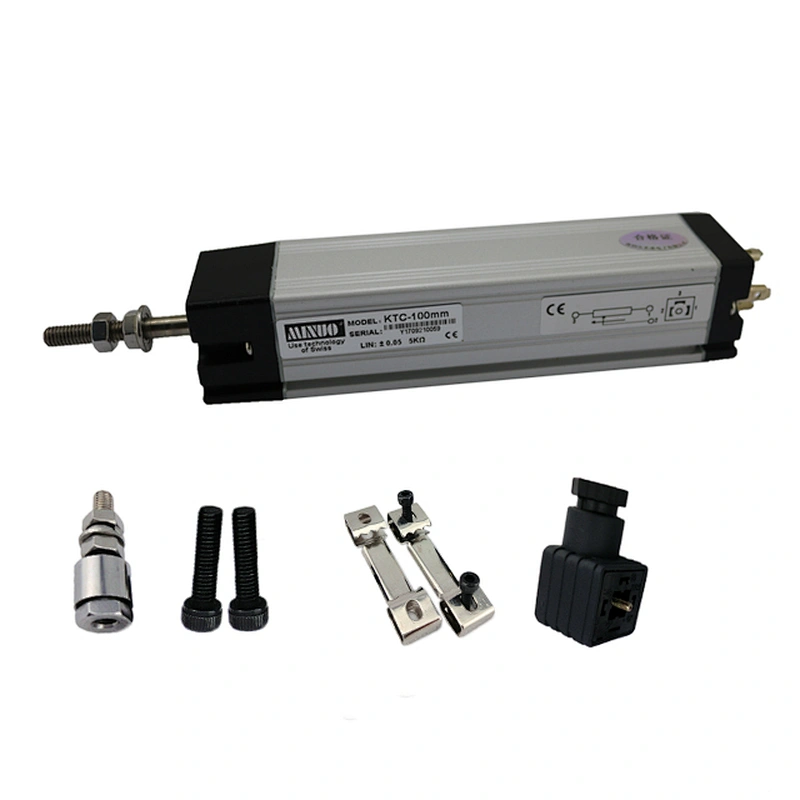

Our products

.jpg .jpg

Function Principle

First change the physical change of being measured target into the change of resistance,

then the change is orocessed via related measure circuic and device. Finally be displayed

or recorded. So we also called it electronic rule or digital position switch. It can be used in

a PLC control system for the frequenty conversion system, measuring the object distortion

etc, such as:controlling the travel of gas cylinder or oil cylinder, the positive &reversal-going change of the angle and so on. At same time, any position can be set as the start or stop point,

and givea feedback signal. It can replace limit switch, linear slippage rheostat, Linear Variable

Differential Transformer (LVDT)
