Linear position sensor
| Place of Origin: Shenzhen China (Mainland) | Brand Name: minuo | Model Number: LTM |
| Usage: Position Sensor | Theory: Resistance Sensor | Output: Digital Sensor |
| Origin of place: Shenzhen,China | Operating temperature: -20°C~80°C | Protection class: IP67 |
| Lifetime: 50,000,000 times | Linearity: ≤±0.07% | Working voltage: DC5V~24V |
| EMC: EN 61326-1:2006 | Resistance: 5K±20% (Customizable) | Certificate: ISO/TS16946 |
| Packaging Detail: | Standard packag, or according to customers' requires |
| Delivery Detail: | 3-20 working days(According to order size) |
Linear position sensor
1.Protection class:IP67
2.ISO/TS16949
3.lifetime:50,000,000 times
4.Accept OEM
LTM Industry Linear position sensor
1. Linear position sensor Introduction:
·Precise linear position sensor
·Working voltage: DC5~24V
·Effective travel: 75/100/125/150/175/200/225/250/300/325/350/375/
400/425/450/500/525/550/600/650/700/750/800/900/1000/1100……1250
·Linearity: 0.075%
·Resistance: 5K±20% (Customizable)
·Analog signals output:
2A1:2wires, 4-20mA, current output
3V1:3wires, 0-10V/10-0V, voltage output
3V2:3wires, 0-5V/5-0V, voltage output
·Operating temperature: -50°C~120°C
·Draw bar speed: < 10m/s
·Protection class: IP67
·Lifetime: ≥50,000,000 times
·EMC: EN 61326-1:2006
·Cable outlet or socket outlet (DIN 430650) or aerial plug connection (Optional)
·Duplex bearing linkage rod, stable and reliable motion
·Fixed support of the sensor can be installed quickly and firmly at anywhere in aluminum slot
·High precise conductive plastic potentiometer, corrosion resistant, with high resolution and long lifetime
·Ideal for injection molding machine, woodwork machinery, knockout machine, brick molding machine, ceramic machinery, water gate controller,
and hydraulic machinery etc.
| Output signal mode |
| A.Resistance: 1K,2K, 5K,10K,20K Ω |
| B.Current: 4-20mA |
| C.Power: 5V,10V,12V,24V |
| D.Related digital indicator: up-limit and bottom-limit setting function |
| (relay output, analogue, RS232/485 interface) |
CHINA Professional Sensor Manufacturer

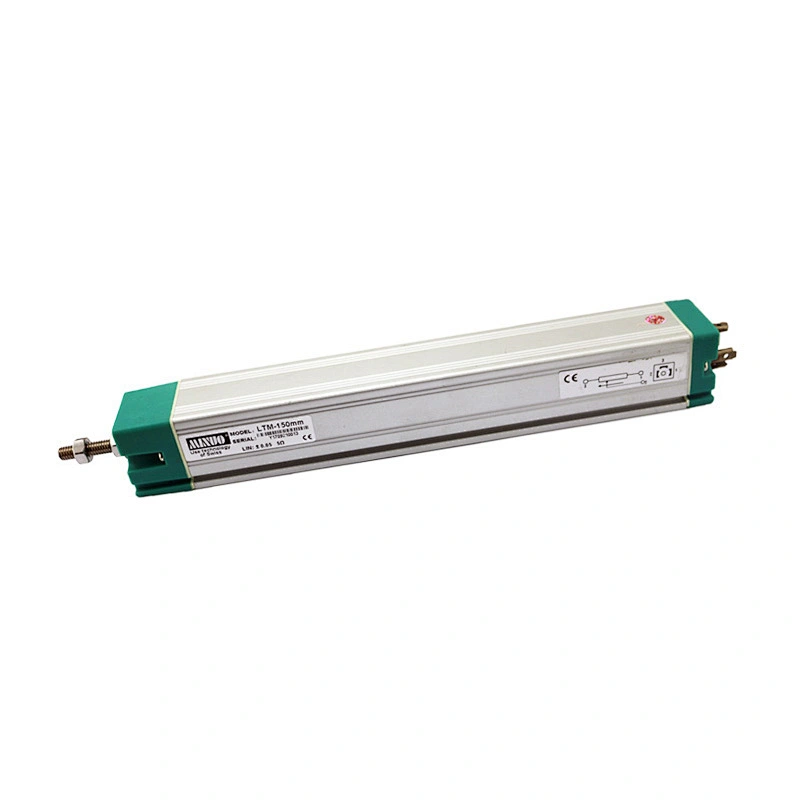

LTM Linear Position Sensor
LTM Rod series linear position sensors are designed for precise measurement of displacement and length. The Measuring rangeof LTM is up to 1250mmwithrepeatability of ±0.01mmandlinearity of 0.05% (model size>350mm).Its structure is designed for simple installation and reliable work. Anodized aluminiumhousing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic trackinside ,the product could run smoothly and have low-noise output signals.
SHENZHEN MINUO ELECTRONICS CO.LTD was founded in 2004,The company has the top bump type of conductive plastic potentialsensor resistance railresearchand development and manufacturing and thecoretechnology. It is the earlier high-tech enterprises engaged in the electrically conductive plastic potentiometer(Angle) of research and development and production in China.We have obtained several patents,MINUO product therefore won the good market reputation and industry brand awareness.
We with one-pointed,focus,focus,professional industry workman for the enterprise development concept.Continue to participate in future industrial 4.0 sensor core technology research and development,strive to build the world industrial automation engineer preferred displacement (perspective) sensor.Continuously improveproductqualityandservicequalitiosatistpesoaliztie
MINUO main production and sales of conductive plastic displacement sensor(electronic rule),Rotary displacementsensor,Draw wire position sensor,transmitter, magnetostrictive displacement sensor,Digital display intelligent meter,grating scale , Range from 0mm-30mm ,the precisionof products are 0.1% 0.05%,5um,1um,0.5um.The varieties, complete specifications and models, range range service life and accuracy in the leading position in the industry.
Products are widely used in aviation, military industry, machinery, engineering machinery, engineering,automation control system requires accurate measurement of displacement.
