KTC-75mm 4-20mA current conductive plastic potentiometer for linear position sensor

KTC-75mm 4-20mA current conductive plastic potentiometer for linear position sensor

Model NO.: KTC-75mm
Price:: USD 43.00-43.00
Delivery: FOB
Minimum order quantity: 100

Quantity:

Product Description
Basic Information

Product Description

CHINA Professional Sensor Manufacturer

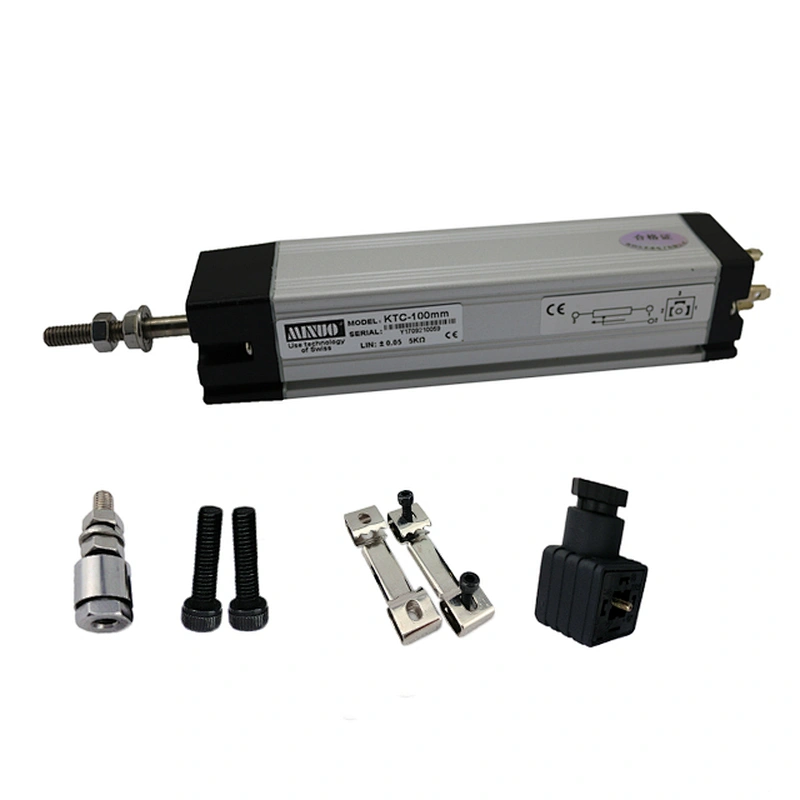

KTC-150mm Linear Position Sensor and Components

KTC Pull Pole series linear position sensors are designed for precise measurement of displacement and length. The Measuring rangeof KTC is up to 1500mmwithrepeatability of ±0.01mmandlinearity of 0.05% (model size>350mm).Its structure is designed for simple installation and reliable work. Anodized aluminiumhousing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic trackinside ,the product could run smoothly and have low-noise output signals.

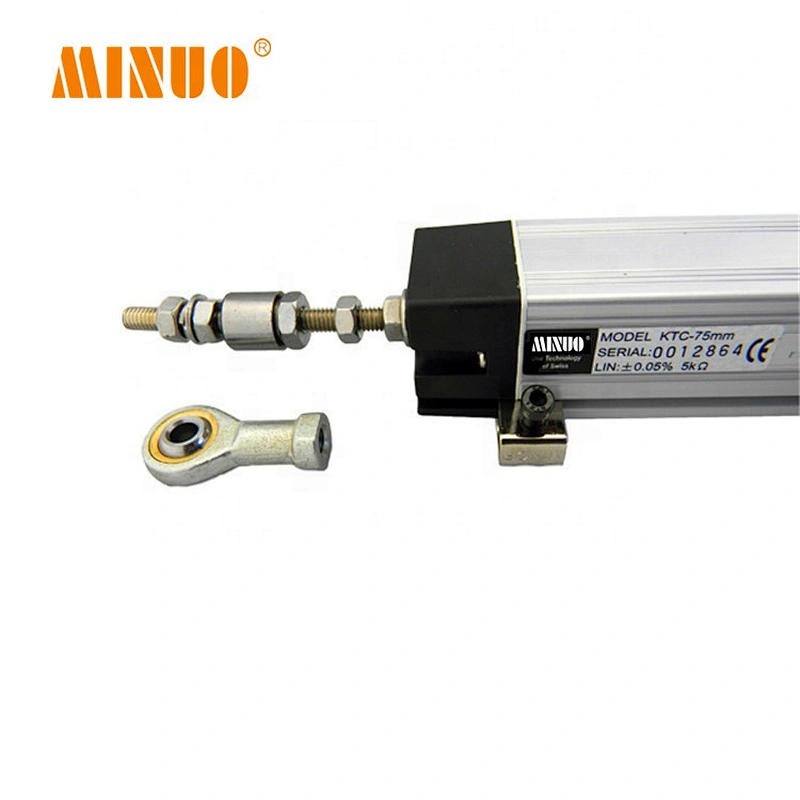

There is a cardan joint or ball-bearingcouplingat the top of pull pole to offset the effects of misalignment with the actuating part. Credited to the technology of trimming resistance, It could not only provide you with required linearity, but also any resistance you need, such as 5678Ωor8765Ω.

.jpg

This picture is showing how about sensor was installed on Air Cylinder

Measuring range	mm	75	100	125	150	175	200	225	250	275	300	325	350	375	400	425
Total electrical travel(T.E)	mm	80	105	130	155	180	205	230	255	280	305	330	355	380	405	430
Resistence	KΩ	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5
Resistence tolerance	±%	20
linearity	%	0.1	0.1	0.09	0.08	0.08	0.08	0.08	0.07	0.07	0.06	0.06	0.05	0.05	0.05	0.05
Repeatability	mm	0.01
Recommended current(wiper)	μA	1
Max current(wiper)	mA	10
Max voltage	V	42
Output range		0-5V,0-10V,4-20mA
Resolution		infinite
Output smoothness	%	0.1
Insulation resistance	MΩ	≥10
Temperature Coefficient	ppm/k	5
Dimensions A	mm	152	177	202	227	252	277	302	327	352	377	402	427	452	477	502
Mechanical travel(M.T) B	mm	82	117	142	167	192	217	242	267	292	317	342	367	392	417	442
Operating force	N	≤3
Operating temperature		-60······150
Vibration frequency range	Hz	5······2000
Amplitude	mm	0.8
Acceleration	g	20
Service life	cycle	100×10⁶
Operating speed	m/s	≤10
Model	Unit	450	475	500	550	600	650	700	750	800	850	900	950	1000	1150	1250
Measuring range	mm	450	475	500	550	600	650	700	750	800	850	900	950	1000	1150	1250
Total electrical travel(T.E)	mm	455	480	505	555	605	655	705	755	805	855	330	955	1005	1155	1255
Resistence	KΩ	5	5	5	5	10	10	10	10	10	10	10	10	10	10	10
Resistence tolerance	±%	20
linearity	%	0.05	0.05	0.05	0.05	0.05	0.05	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.03	0.03
Repeatability	mm	0.01
Recommended current(wiper)	μA	1
Max current(wiper)	mA	10
Max voltage	V	42
Output range		0-5V,0-10V,4-20mA
Resolution		infinite
Output smoothness	%	0.1
Insulation resistance	MΩ	≥10
Temperature Coefficient	ppm/k	5
Dimensions A	mm	527	552	577	627	677	727	777	827	877	927	977	1027	1077	1227	1327
Mechanical travel(M.T) B	mm	457	492	517	567	617	667	717	767	817	867	917	967	1017	1167	1267
Operating force	N	≤3
Operating temperature		-60······150
Vibration frequency range	Hz	5······2000
Amplitude	mm	0.8
Acceleration	g	20
Service life	cycle	100×10⁶
Operating speed	m/s	≤10

Modle-1	Input 5V, 10v, 12V, 12V, 24V Output 0-5V, 0-10V, 0-12V, 0-24V
Modle-2	Input 10V Output 0-5V; Input 12V Output 0-10V, 0-5V; Input 24V Output 0-5V, 0-10V, 0-12V
Modle-3	Input 24V Output 4-20mA

Modle-1

Input 5V, 10v, 12V, 12V, 24V

Output 0-5V, 0-10V, 0-12V, 0-24V

Modle-2

Input 10V Output 0-5V;

Input 12V Output 0-10V, 0-5V;

Input 24V Output 0-5V, 0-10V, 0-12V

Modle-3

Input 24V Output 4-20mA

Product Characterist

1.Simple structure, small size, light weight, affordable, but with stable and high

precision quality.

2.Less impact generated by the environment (Such as temperature, humidity,

magnetic interfere etc).

3.Any function of input and output can be implemented.

4.Strong output signal, normally no need to additional amplifier.

5.Suitable for the condition which any optical rule or rotary encode can not be used.

6.Easily installing and maintaining.

7.Save mechanical costs about 30%

Output signal mode

Output signal mode

A.Resistance: 1K,2K, 5K,10K,20K Ω

B.Current: 4-20mA

C.Power: 5V,10V,12V,24V

D.Related digital indicator: up-limit and bottom-limit setting function

(relay output, analogue, RS232/485 interface)

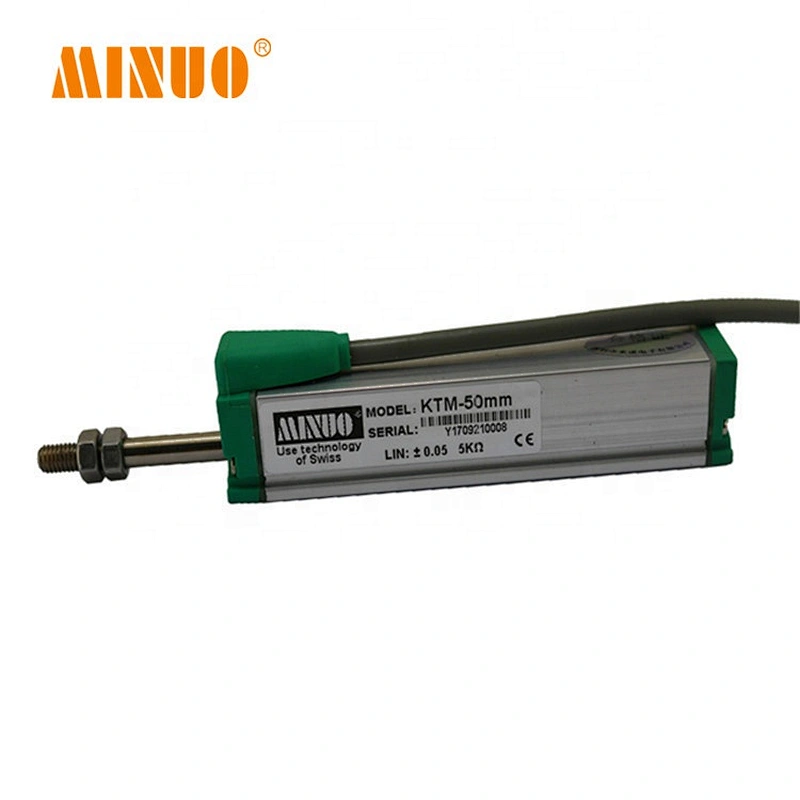

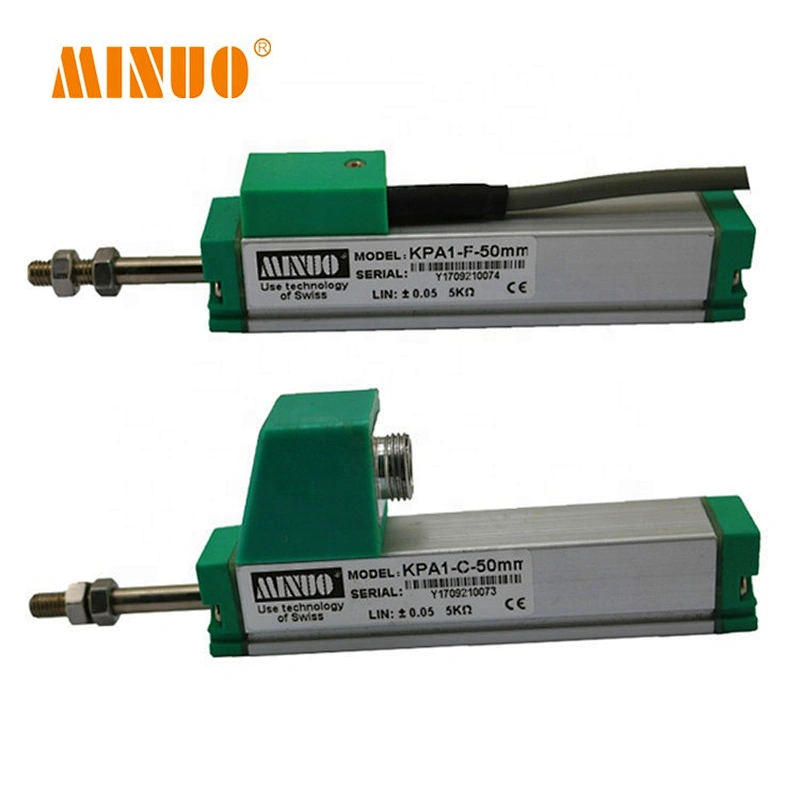

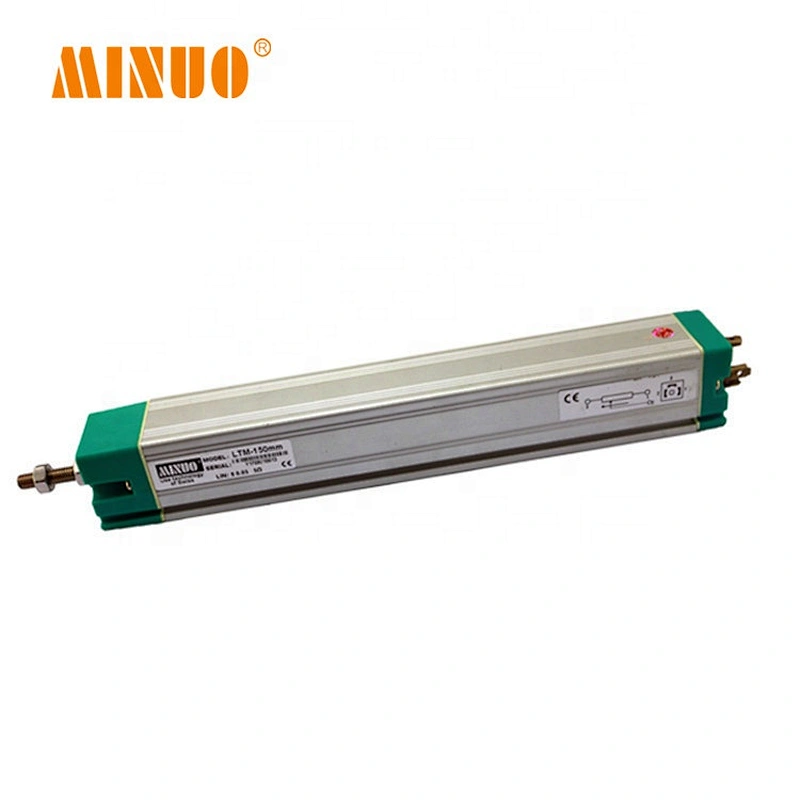

Our products

.jpg .jpg

Company Information

The joint efforts of the engineering and technical personnel of the Company, the MINUO series product being continue to improve by customers and the relevant departments of actual testing in the last eleven years, performance and quality of our products have reached international advanced level. Therefor MINUO brand has a higher visibility in the industry.

MINUO series displacement sensor consists of four parts:

1.Aluminum housing. Surface anode electrophoresis, the internal structural designed by finite element analysis, high strength, flexural torsional capacity is outstanding. MINUO series products not only has the appearance of smooth, delicate touch, but also with strong corrosion resistance, field operations can be carried out without external protection status.

2.Multi-touch brush.The company has imported special composite material (rare metal brush material) of aviation from European, the brush was made through inlaying 0.03mm precious metals(It was laudatory named as metal diamond with high abrasion resistance, corrosion resistance and excellent electrical conductivity) on 0.07mm substrate material surface by the world top technology, effectively improve the brush wear and conductive properties. Multi-finger design to make the brush to keep strength and elasticity, aslo ensure brush always being connect well with the resistor substrate in vibration condition, this multi-contact safety design concept makes the contact resistance of minoxidil products always maintain a steady state lay a solid foundation for improving product linearity.

.jpg

Imported Multi-touch Brush

3.Stainless steel rod. The rod was connected flexible by using universal joints or ball coupling to compensate for part of the installation angle, reducing the accuracy requirements for installing, allowing the angle deviation of installation .

4.Shaft sealing rings. It is the main factor to determine the grade of product protection. We use two-way shaft sealing technology, raw material was good at oil proof, wear ability, seal performance, so our transducers has good effect at the dust, oil resistant and water proof performanc.
