- Place of Origin:CN;GUA
- Usage:Magnetic Sensor
- Theory:Current Sensor
- Output:Switching Transducer
- Brand Name:MINUO
- Model Number:MNFV1-B-100mm
Options and Explain | Category | ||||||||||||||

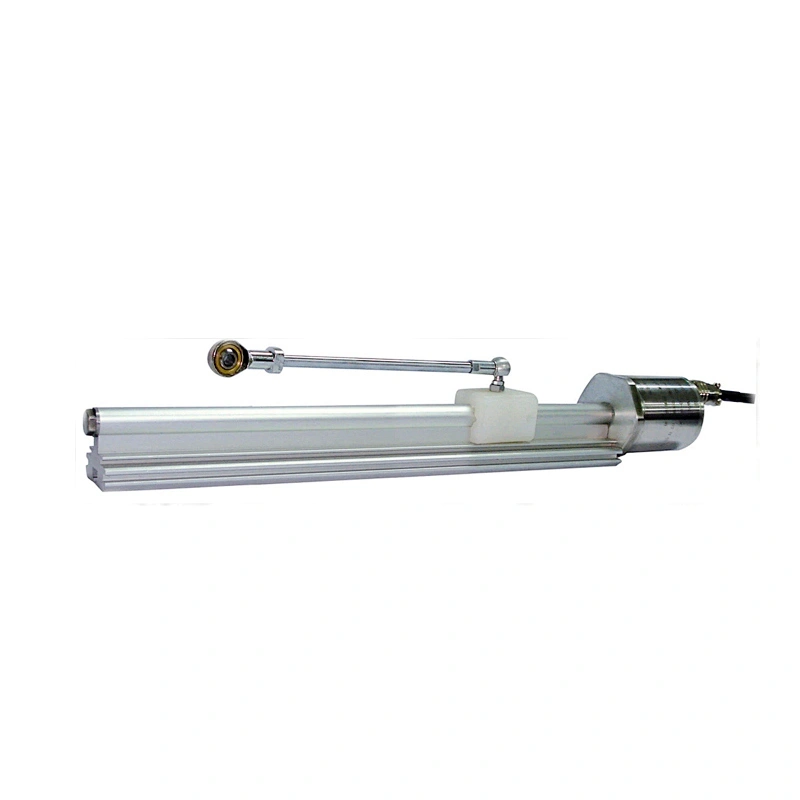

MNFV | MNFV Magnetostrictive Linear-Position Sensor |
| |||||||||||||
| 1 | +24VDC (±10%) | Input Voltage |
electrical Performane | |||||||||||
2 | +15VDC (±10%) | ||||||||||||||
|
| V_ _ _ _ (Voltage Output) | [1][2]output [3]Magnet [4]Direction 01=0---10v 05=0---5v 1=Single 0=Positive(1) 55=-5---+5v 11=-10---+10v 2=Double 1=Opposite(2) |
Output
| |||||||||||
| A_ _ _ _ (Current Output) | [1][2]output [3]Magnet [4]Direction 42=4---20mA 1=Single 0=Positive(1) 2=Double 1=Opposite(2) | |||||||||||||
|
| _ _ _ _M (unit:mm) | Range(profile-style):80 to 3000mm
| Measuring Length |
Physical Structure
| ||||||||||
|
| C | Cable | Connection Type | |||||||||||
S | Hirschmann (No Cable) | ||||||||||||||
|
| _ | 0~9(Cable length) | ||||||||||||
|
| _ | [T]=Captive-sliding magnet with join at top [F]=Floating magnet | Magnet types | |||||||||||
|
| ||||||||||||||
MNFV 1/2 1 V0110 - 0300M S 0 T | |||||||||||||||
Example: MNFV11V0110-0300MSOT | |||||||||||||||
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
 |  |  |
