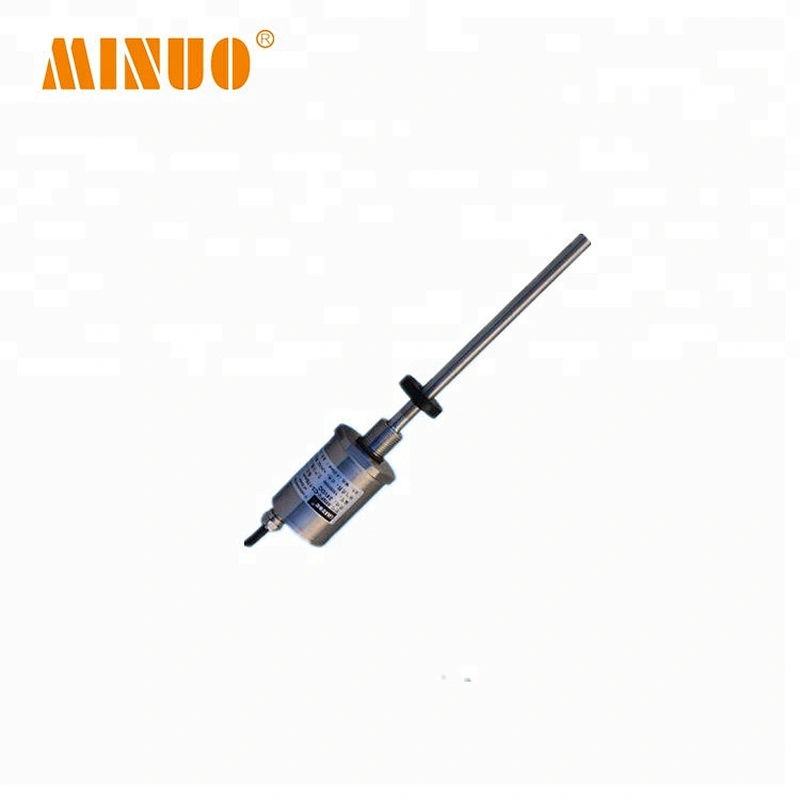

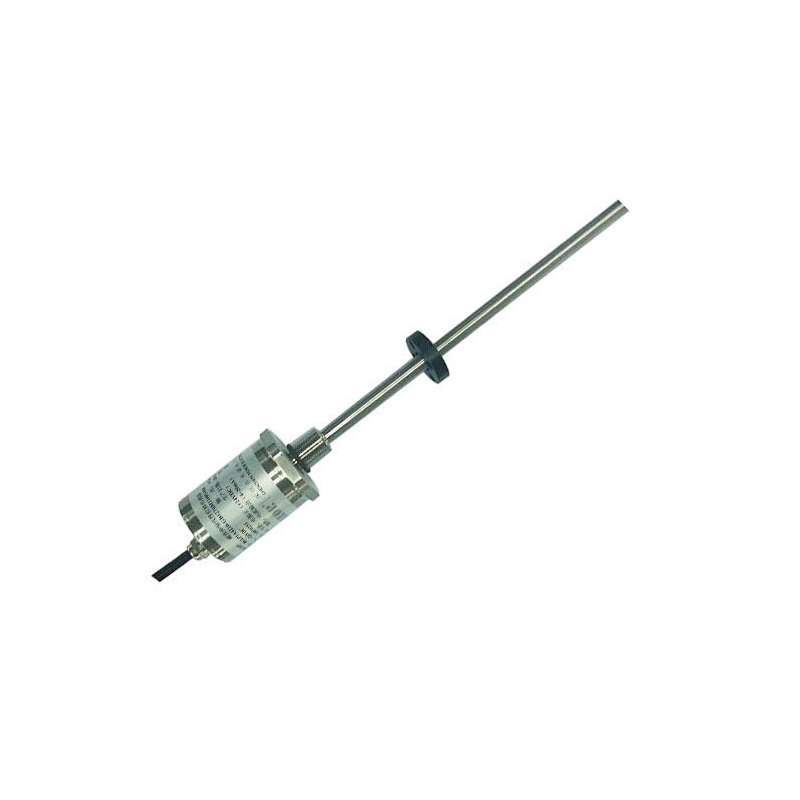

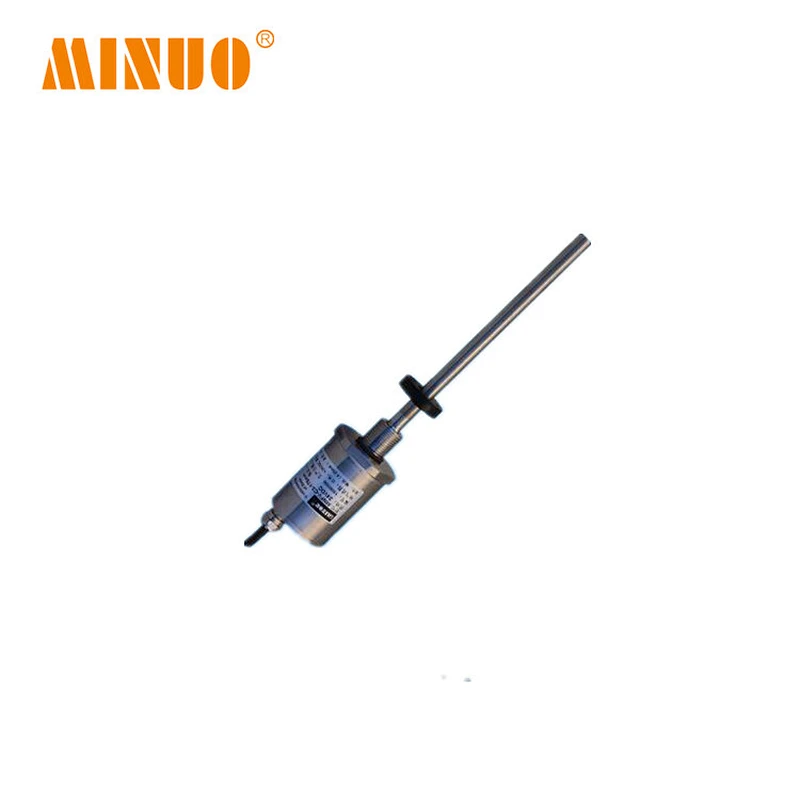

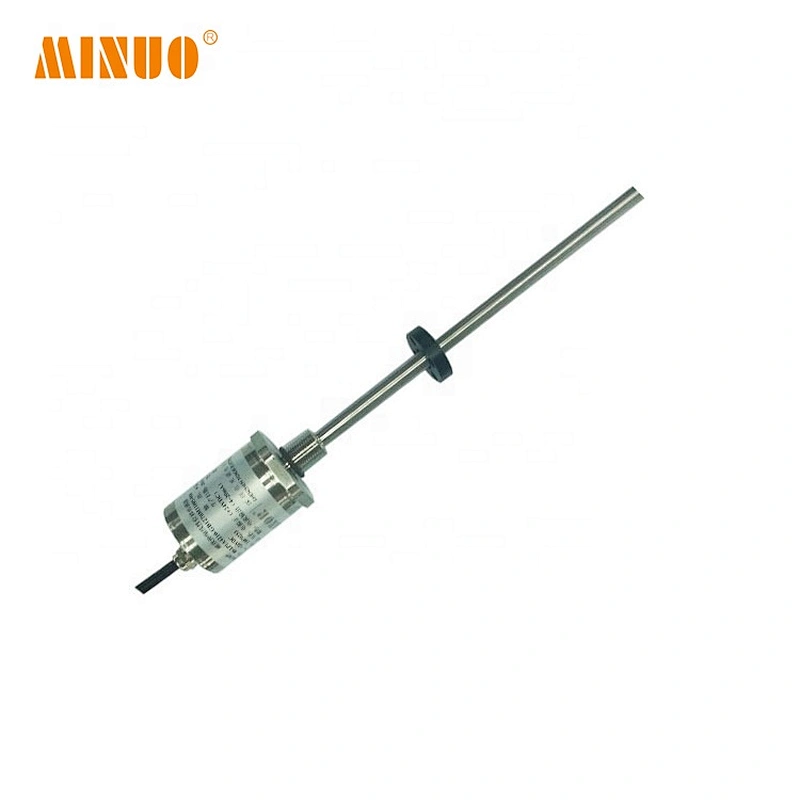

MNCV Magnetostrictive liquid level sensor Universal Measuring built-in RS485 Joint

In a Magnetostrictive Linear-Position Sensor, a sonic strain pulse is induced in a specially designed magnetostrictive waveguide by the momentary interaction of two magnetic fields. One field comes from a movable permanent magnet which passes along the outside of the sensor tube, the other field comes from a current pulse or interrogation pulse applied along the waveguide. The interaction of the two magnetic fields produces a strain pulse, which travels at sonic speed along the waveguide until the pulse is detected at the head of the sensor.
The position of the magnet is determined with high precision by measuring the elapsed time between the application of the interrogation pulse and the arrival of the resulting strain pulse. Consequently, accurate non-contact position or liquid-level sensing is achieved with absolutely no wear to the sensing components.

·Non-contact sensing
·Reliable and high durability
·Protective “G” structure which may endure pressure
·High accuracy and repeatability
·Absolute position output
·Multi-position measurement

SHENZHEN MINUO ELECTRONICS CO.LTD was founded in 2004,The company has the top bump type of conductive plastic potentialsensor resistance  railresearchand development and manufacturing and  thecoretechnology. It is the earlier high-tech enterprises engaged in the electrically conductive plastic potentiometer(Angle) of research and development and production in China.We have obtained several patents,MINUO product therefore won the good market reputation and industry brand awareness.

  We with one-pointed,focus,focus,professional industry workman for the enterprise development concept.Continue to participate in future industrial 4.0 sensor core technology research and development,strive to build the world industrial automation engineer preferred displacement (perspective) sensor.Continuously improve product quality and service qualitiy customer personalization needs

  MINUO main production and sales of conductive plastic displacement sensor(electronic rule),Rotary displacementsensor,Draw wire position sensor,transmitter, magnetostrictive displacement sensor,Digital display intelligent meter,grating scale , Range from 0mm-30mm ,the precisionof products are 0.1% 0.05%,5um,1um,0.5um.The varieties, complete specifications and models, range range service life and accuracy in the leading position in the industry.

  Products are widely used in aviation, military industry, machinery, engineering machinery, engineering,automation control system requires accurate measurement of displacement.
