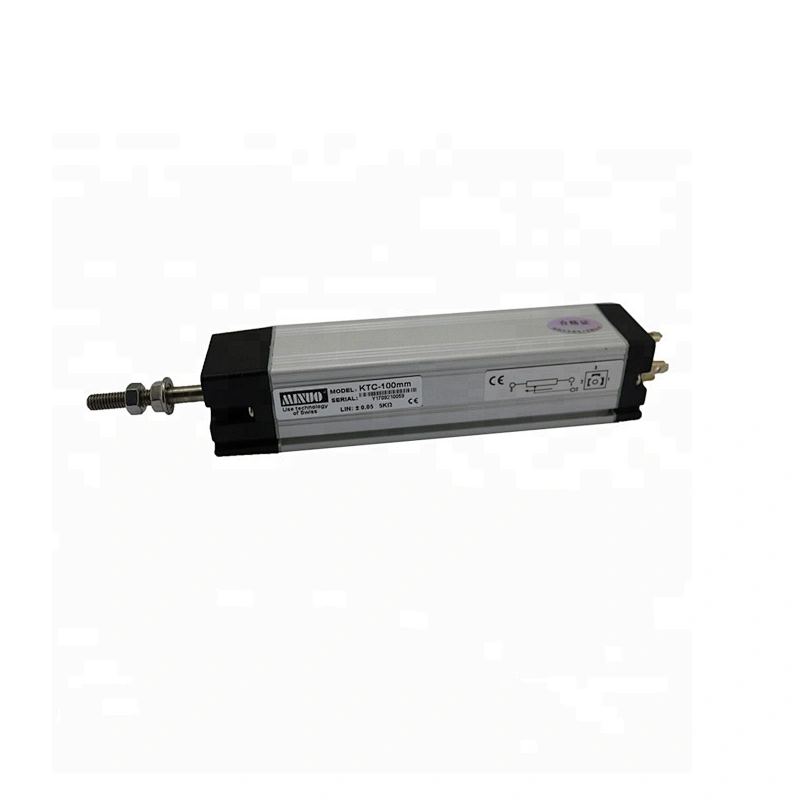

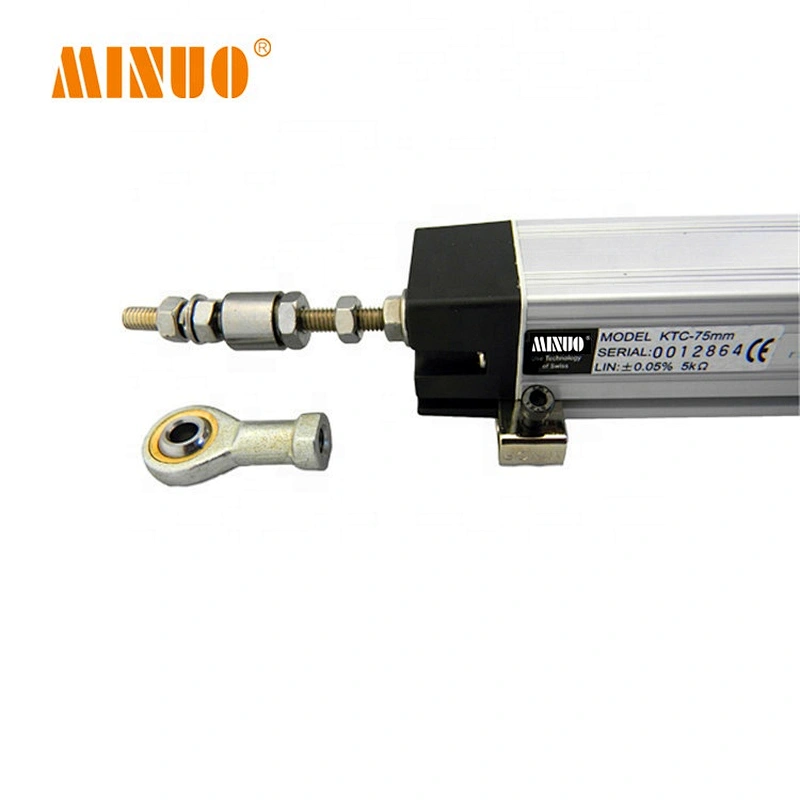

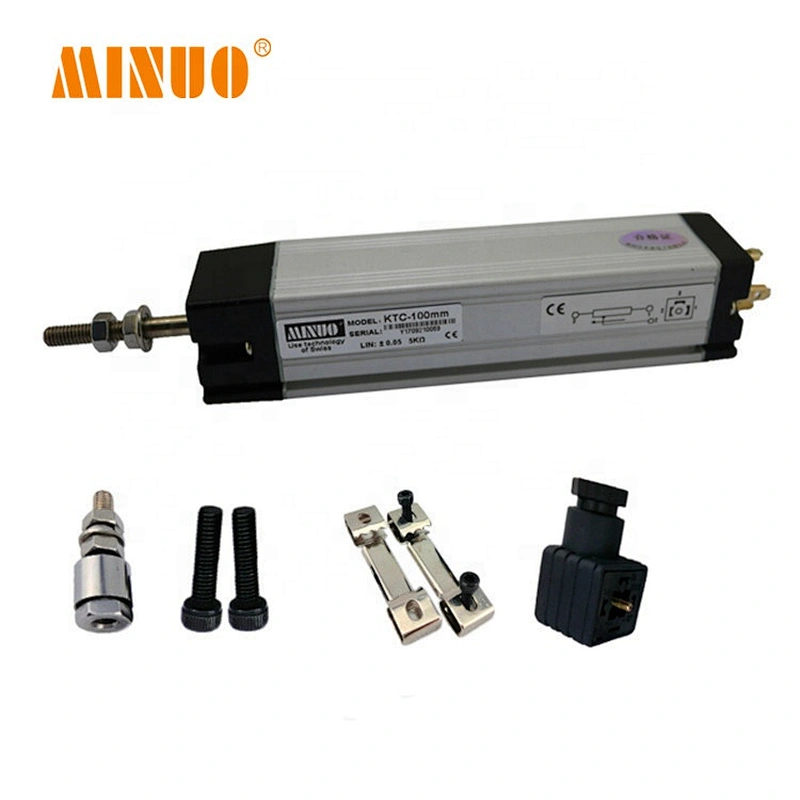

KTC Rod series linear position sensors are designed for precise measurement of displacement and length. The Measuring rangeof KTC is up to 1500mmwithrepeatability of ±0.01mmandlinearity of 0.05% (model size>350mm).Its structure is designed for simple installation and reliable work. Anodized aluminiumhousing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic trackinside ,the product could run smoothly and have low-noise output signals.
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
| Output signal mode |
| A.Resistance: 1K,2K, 5K,10K,20K Ω |
| B.Current: 4-20mA |
| C.Power: 5V,10V,12V,24V |
| D.Related digital indicator: up-limit and bottom-limit setting function |
| (relay output, analogue, RS232/485 interface) |
