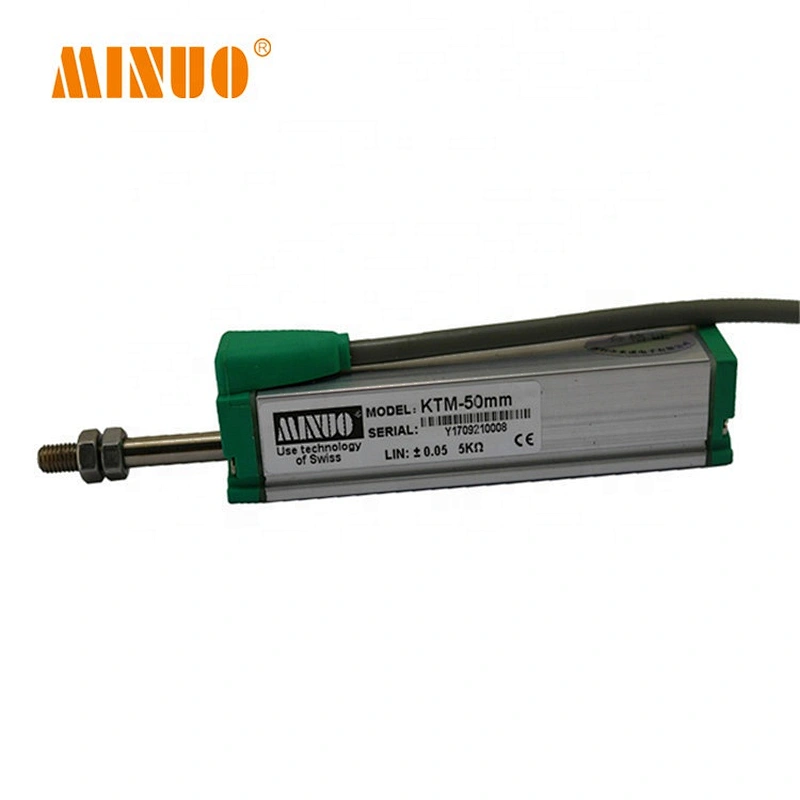

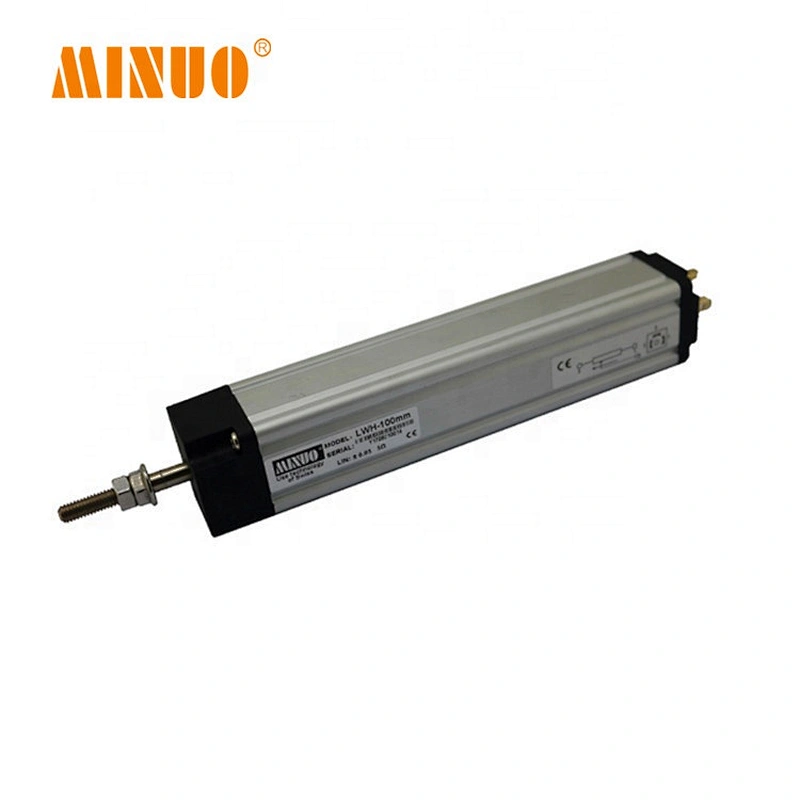

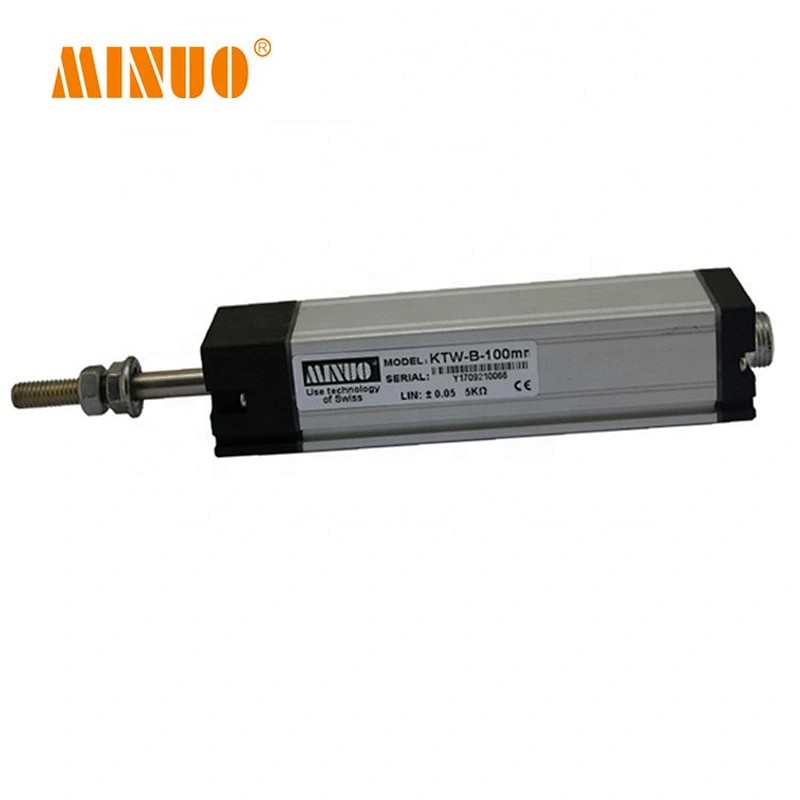

KTC joystick type sensors Position and displacement Transducers 10K 5V 4-20mA

The joint efforts of the engineering and technical personnel of the Company, the MINUO series product being continue to improve by customers and the relevant departments of actual testing in the last eleven years, performance and quality of our products have reached international advanced level. Therefor MINUO brand has a higher visibility in the industry.

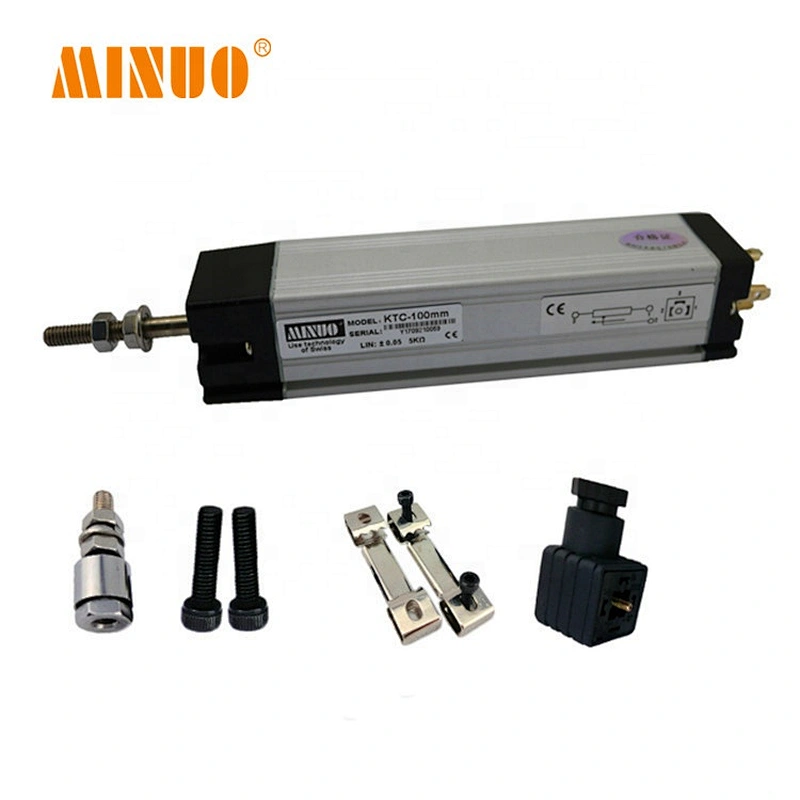

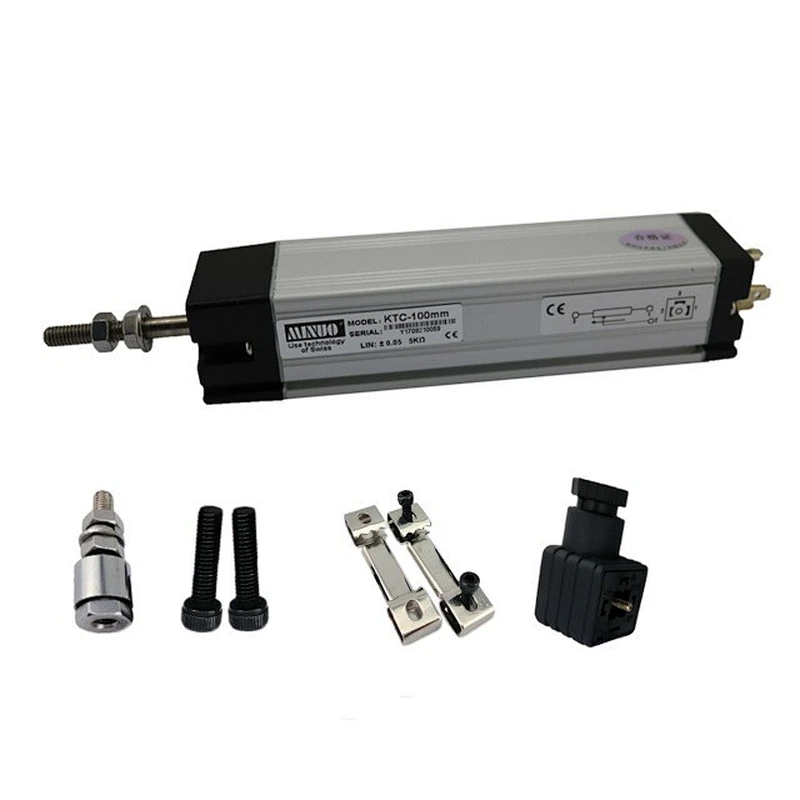

MINUO series displacement sensor consists of four parts:

1.Aluminum housing. Surface anode electrophoresis, the internal structural designed by finite element analysis, high strength, flexural torsional capacity is outstanding. MINUO series products not only has the appearance of smooth, delicate touch, but also with strong corrosion resistance, field operations can be carried out without external protection status.

2.Multi-touch brush.The company has imported special composite material (rare metal brush material) of aviation from European, the brush was made through inlaying 0.03mm precious metals(It was laudatory named as metal diamond with high abrasion resistance, corrosion resistance and excellent electrical conductivity) on 0.07mm substrate material surface by the world top technology, effectively improve the brush wear and conductive properties. Multi-finger design to make the brush to keep strength and elasticity, aslo ensure brush always being connect well with the resistor substrate in vibration condition, this multi-contact safety design concept makes the contact resistance of minoxidil products always maintain a steady state lay a solid foundation for improving product linearity.

       Imported Multi-touch Brush

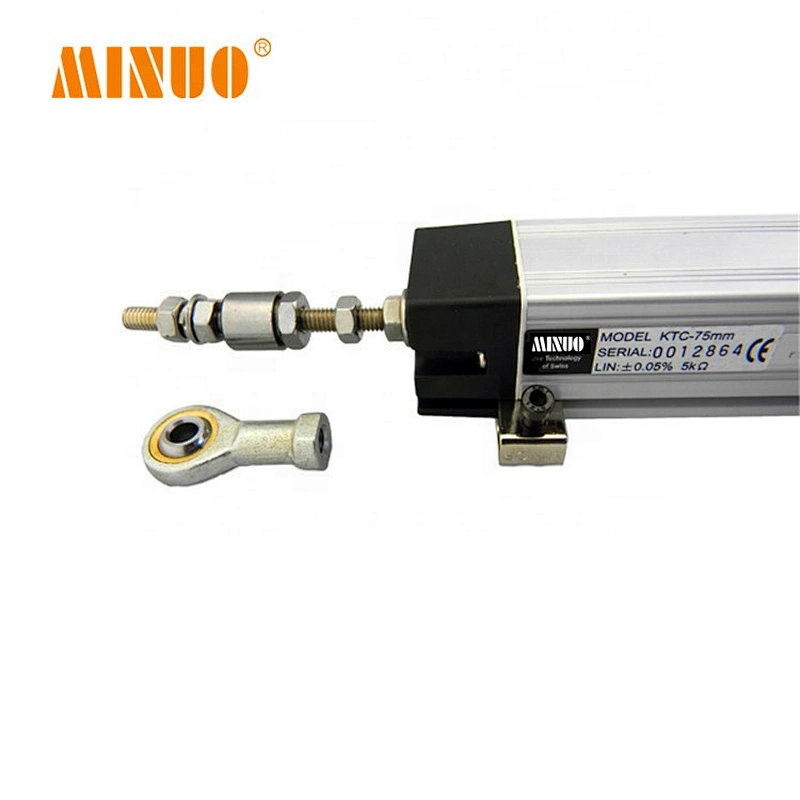

3.Stainless steel rod. The rod was connected flexible by using universal joints or ball coupling to compensate for part of the installation angle, reducing the accuracy requirements for installing, allowing the angle deviation of installation .

4.Shaft sealing rings. It is the main factor to determine the grade of product protection. We use two-way shaft sealing technology, raw material was good at oil proof, wear ability, seal performance, so our transducers has good effect at the dust, oil resistant and water proof performanc.

1.Simple structure, small size, light weight, affordable, but with stable and high

   precision quality.

2.Less impact generated by the environment (Such as temperature, humidity,

   magnetic interfere etc).

3.Any function of input and output can be implemented.

4.Strong output signal, normally no need to additional amplifier.

5.Suitable for the condition which any optical rule or rotary encode can not be used.

6.Easily installing and maintaining.

7.Save mechanical costs about 30%

SHENZHEN MINUO ELECTRONICS CO.LTD was founded in 2004,The company has the top bump type of conductive plastic potentialsensor resistance  railresearchand development and manufacturing and  thecoretechnology. It is the earlier high-tech enterprises engaged in the electrically conductive plastic potentiometer(Angle) of research and development and production in China.We have obtained several patents,MINUO product therefore won the good market reputation and industry brand awareness.

  We with one-pointed,focus,focus,professional industry workman for the enterprise development concept.Continue to participate in future industrial 4.0 sensor core technology research and development,strive to build the world industrial automation engineer preferred displacement (perspective) sensor.Continuously improveproductqualityandservicequalitiosatistpesoaliztie

  MINUO main production and sales of conductive plastic displacement sensor(electronic rule),Rotary displacementsensor,Draw wire position sensor,transmitter, magnetostrictive displacement sensor,Digital display intelligent meter,grating scale , Range from 0mm-30mm ,the precisionof products are 0.1% 0.05%,5um,1um,0.5um.The varieties, complete specifications and models, range range service life and accuracy in the leading position in the industry.

  Products are widely used in aviation, military industry, machinery, engineering machinery, engineering,automation control system requires accurate measurement of displacement.
