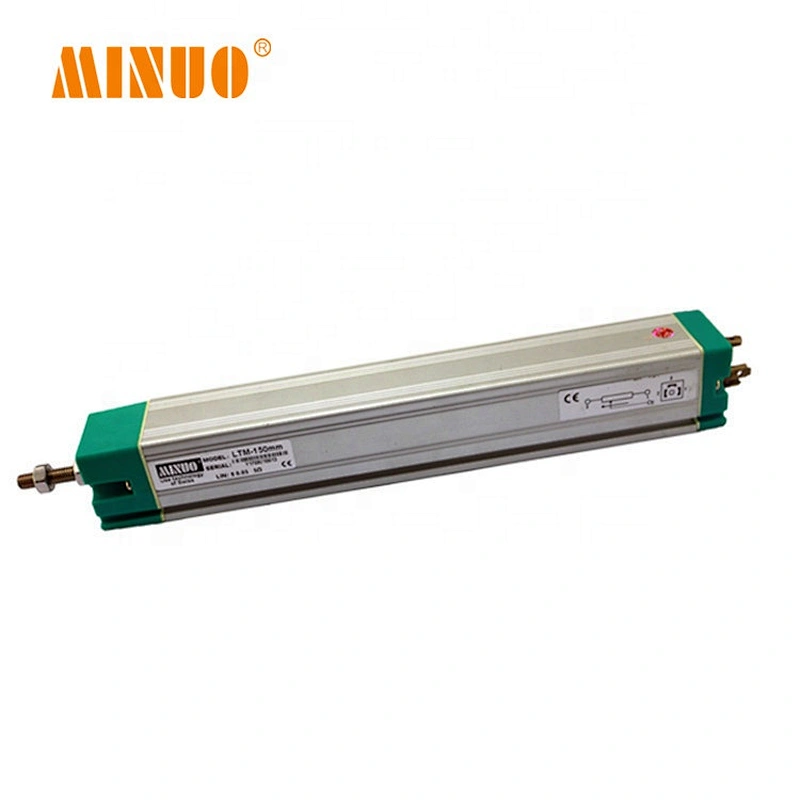

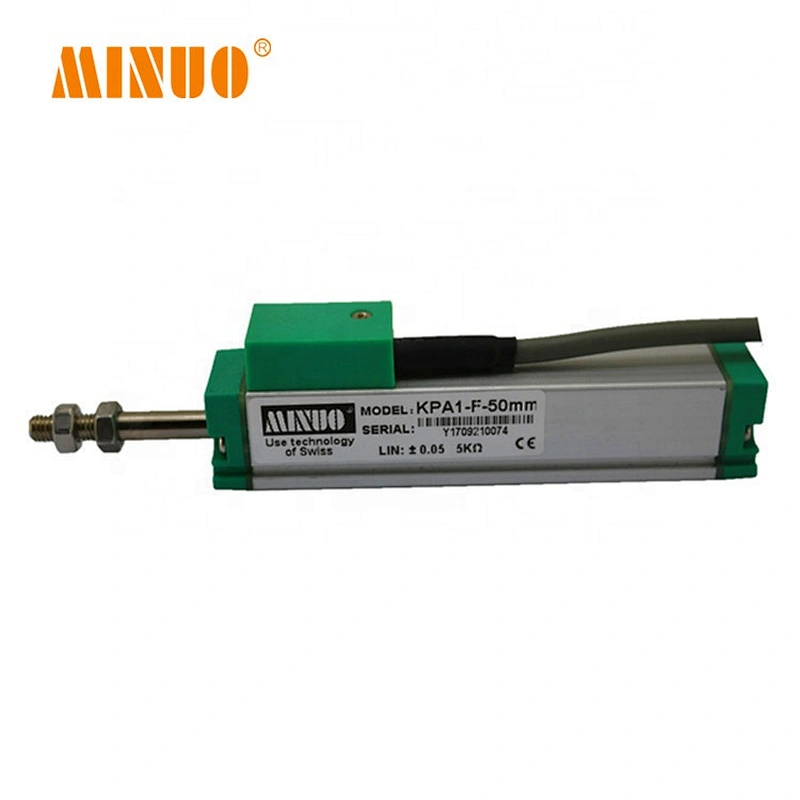

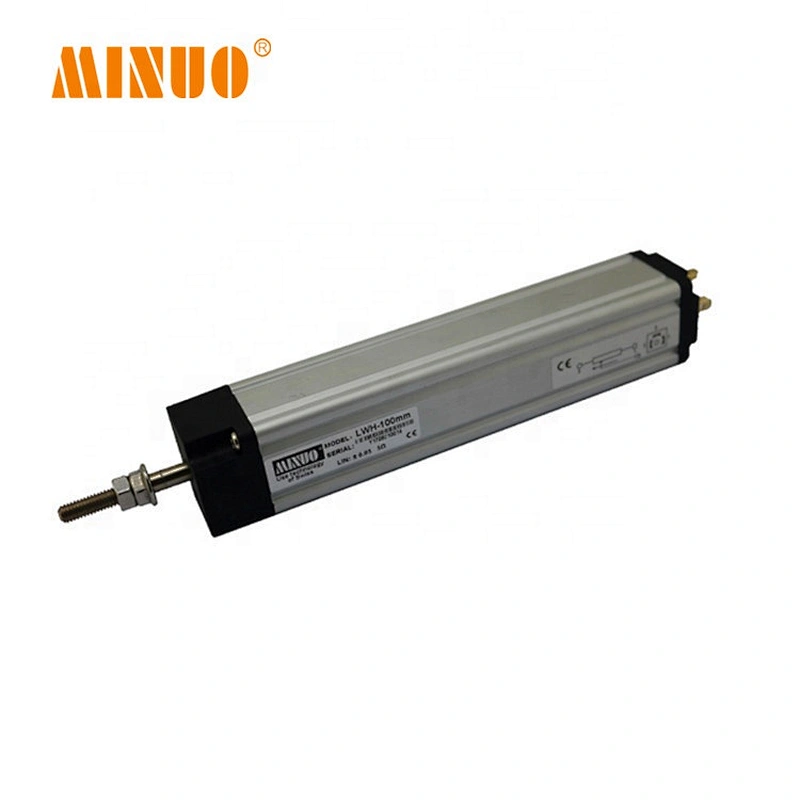

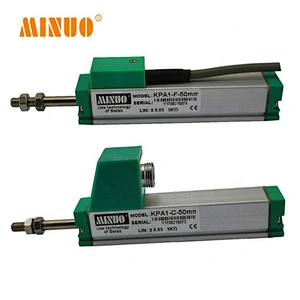

Function Principle
First change the physical change of being measured targetionto the change of resistance. Then the change is orocessed via telated meassure circuic and device. Finally be displayed or recorded. So we also called it electronic rule or didital position switch. it can be used in a PLC control system for the frequenty conversion system, measuring the object distrortion ect, such as: controlling the travel of gascylinder or oil cylinder, the positive reversal-going change of the angle and so on. At same time, any position can be set as the start or stop point, and give a feedback signal. it can replace limit switch, linear slippage rheostat, Linear Variable Differential Transformer (LVDT)
Product Chatacteristic
1. Simple structure, small size. light weight, affordable, but with stable and high precision quality.
2.Less impact generated by the environment (such as temperature, humidity, magnetic interfere ect).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not bu used.
6.Easily installing and maintaining
7.Save mechanical costs about 30%
Application Range
Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting modling machine), glass machine, printing machine, medical machine, wood and coal mine machine and so on.
Minuo products can be used with PLC industrial control systems, servo, inverter, microcontroller, supporting the use of achieve frequency control, the precise position detection and control signal feedback ect.
Output signal modle
A. Resistance 1K Ω, 2KΩ, 5K Ω, 10K Ω, 20K Ω
B.Current:4-20mA
C.Optional voltage: 0-5V, 0-10V, 0-12V
D.Related digital indicator: up-limit and bottom-limit setting function (relay output,analogue, RS232/485 interface)
Accessory
A:Ball and socket coupling
B:Oscillating bearing (Ball coupling)
Usually is A, if you need B please tell us!

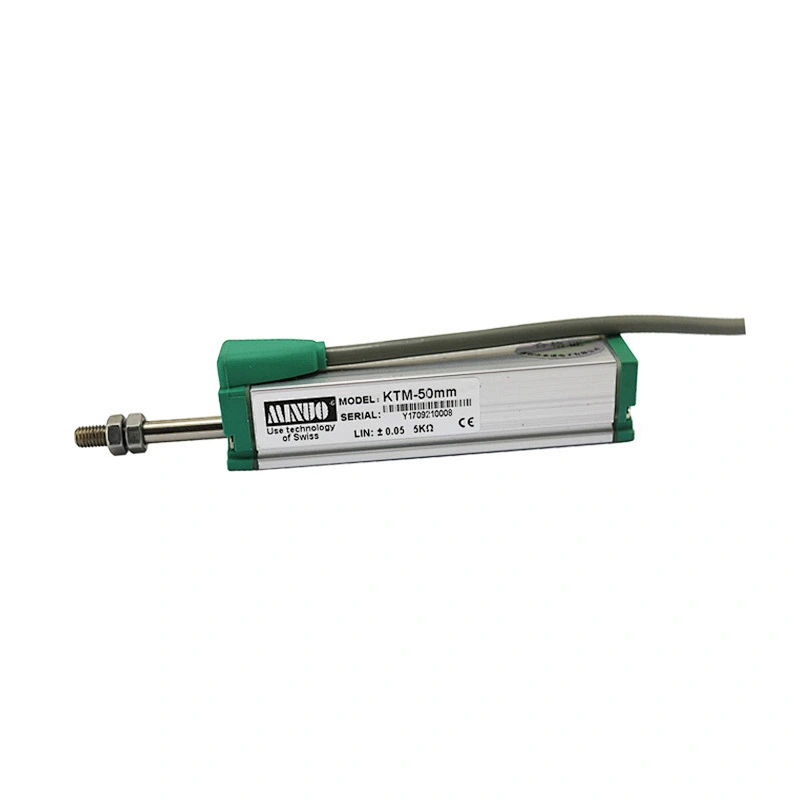

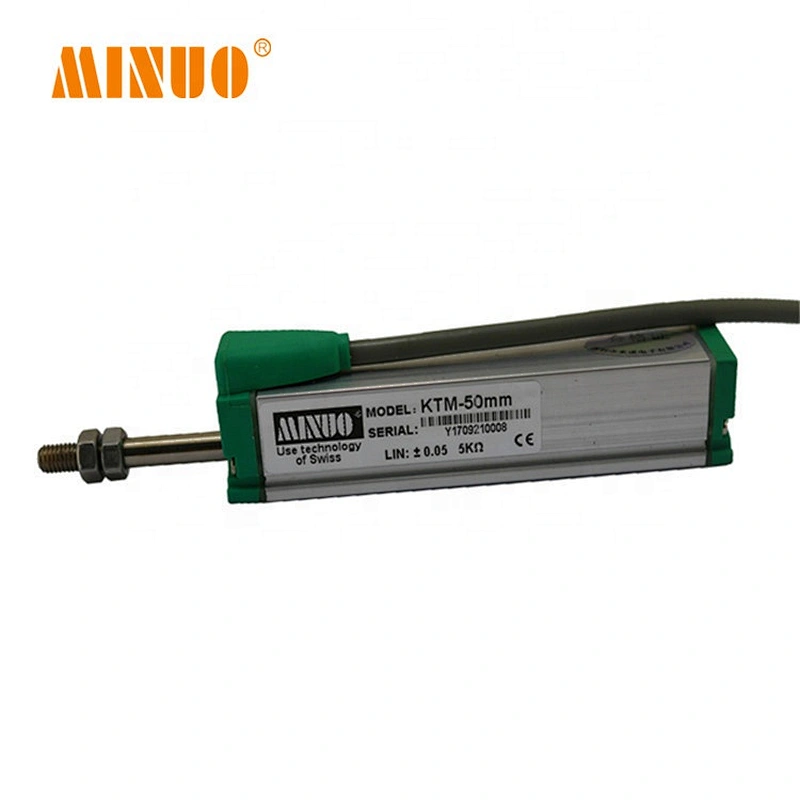

KTMMicro Rod Serie | mm | 10 | 15 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | 300 | 400 |
Total Electrical Travel (T.E) | mm | 12 | 17 | 27 | 52 | 77 | 102 | 127 | 152 | 177 | 202 | 227 | 252 | 277 | 302 | 402 |
Active Electrical Travel (A.E) | mm | 10 | 15 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | 300 | 400 |
Resistance Range ±20% | kΩ | 5.0 | ||||||||||||||
Independent Linearity | ±% | 0.05 | ||||||||||||||
Mechanical Travel (M.T) | mm | 14 | 19 | 29 | 54 | 79 | 104 | 129 | 154 | 179 | 204 | 229 | 254 | 279 | 304 | 404 |
Output |
| Voltage Divider | ||||||||||||||
Resolution |
| Infinite | ||||||||||||||
Operating Temperature | C° | -50 + 120 | ||||||||||||||
Dimensions A | mm | 53 | 58 | 68 | 93 | 118 | 143 | 168 | 193 | 218 | 243 | 268 | 293 | 318 | 343 | 443 |
Total Dimensions | mm | 70 | 75 | 85 | 110 | 135 | 160 | 185 | 210 | 235 | 260 | 185 | 310 | 335 | 360 | 460 |
Patent No: ZL 2004 2 22949441
CE cerificate No: ATE 20050709
Minor management theory is survive with quality, guarantee with credit. Shenzhen Minuo Electronics
| Output signal mode |
| A.Resistance: 1K,2K, 5K,10K,20K Ω |
| B.Current: 4-20mA |
| C.Power: 5V,10V,12V,24V |
| D.Related digital indicator: up-limit and bottom-limit setting function |
| (relay output, analogue, RS232/485 interface) |
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
