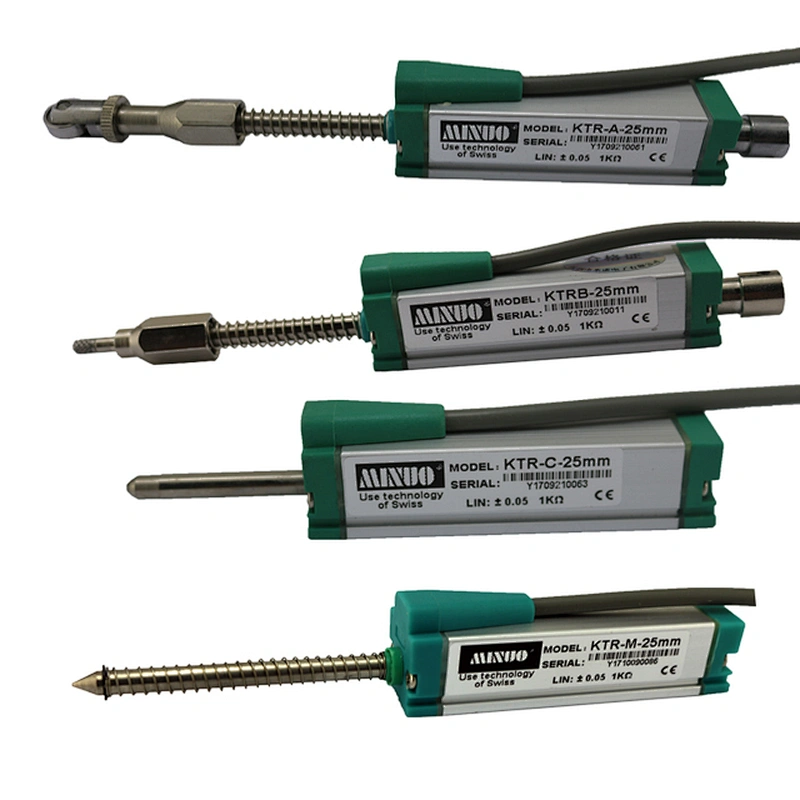

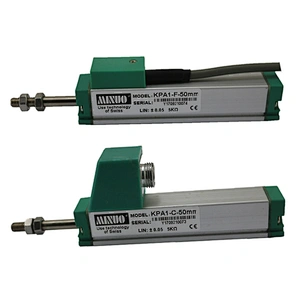

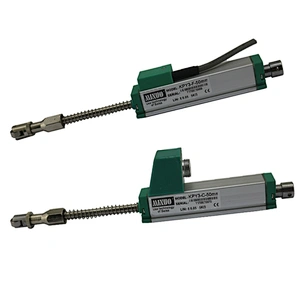

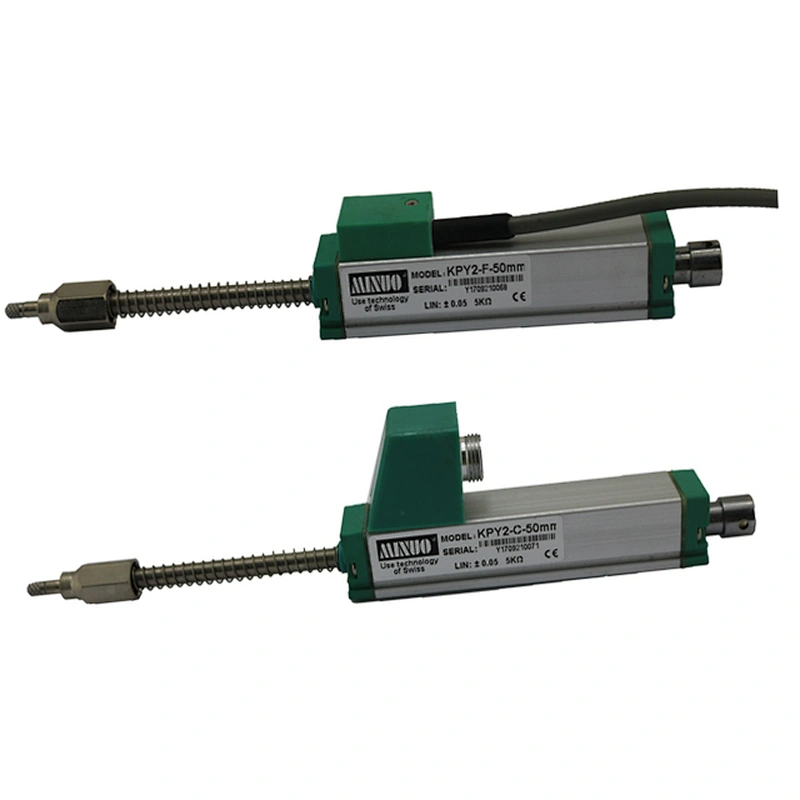

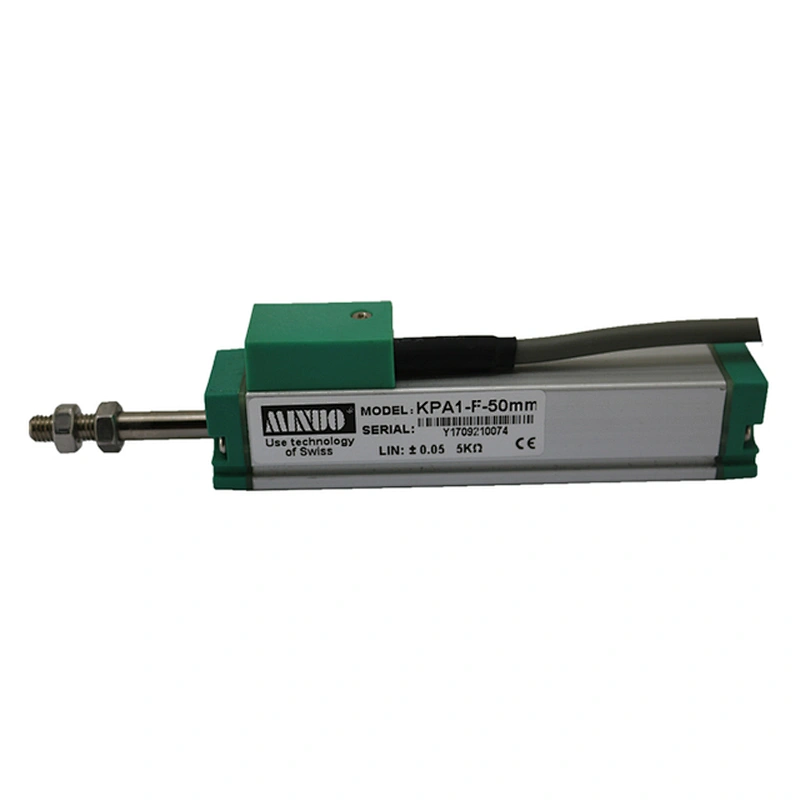

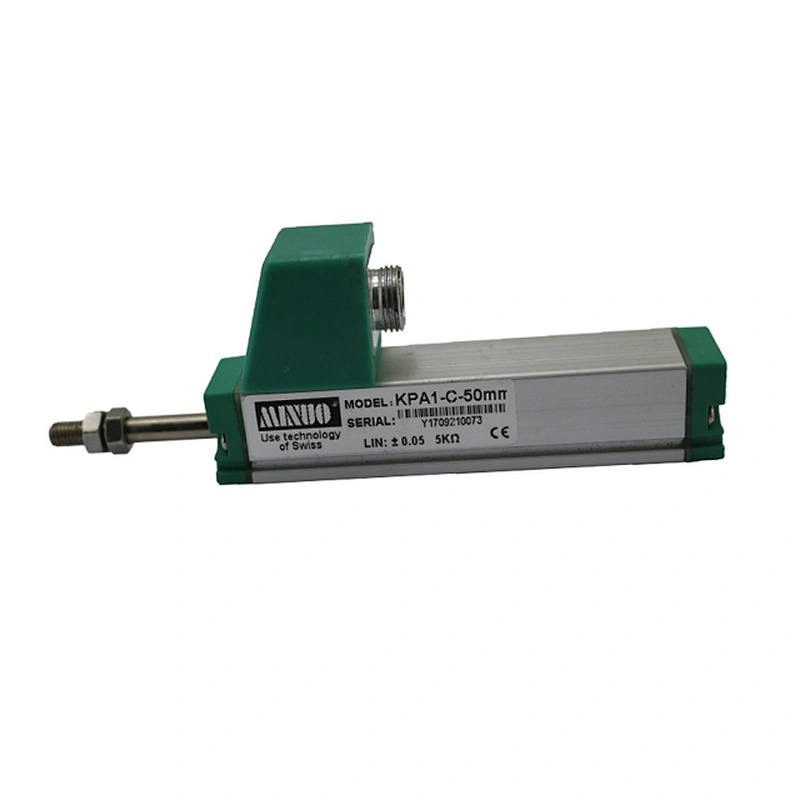

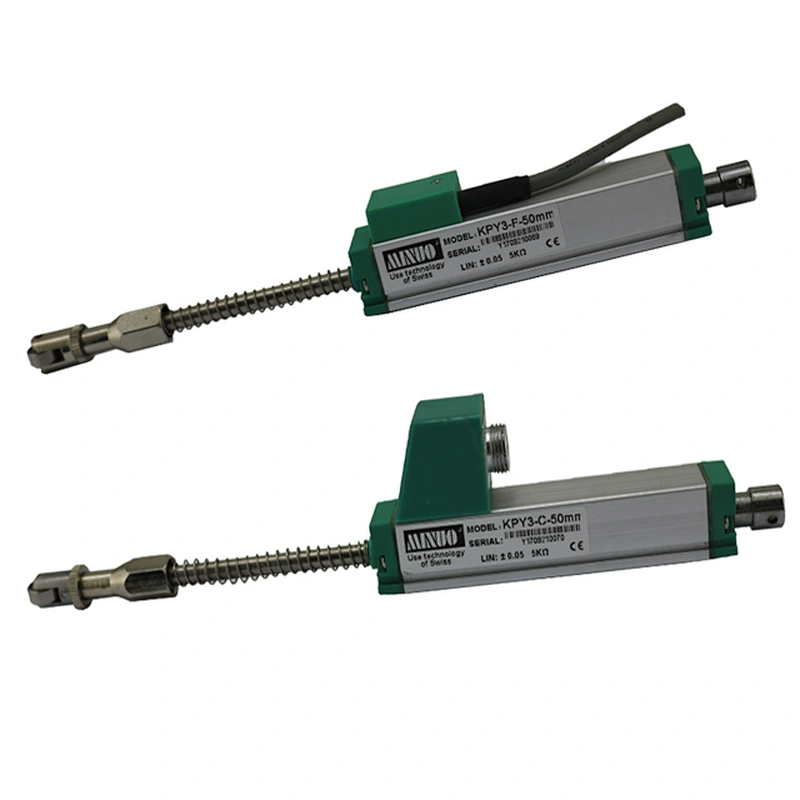

KTM linear motion position sensors from MINUO

KTM linear motion position sensors from MINUO

Model NO.: KTM
Price:: USD 32.18-82.96
Delivery: FOB
Minimum order quantity: 1
Supply Ability: 50000 / Week
Country of Origin: Hongkong or Shenzhen

Quantity:

Product Description
Basic Information

Product Description

Product Characterist

1.Simple structure, small size, light weight, affordable, but with stable and high

precision quality.

2.Less impact generated by the environment (Such as temperature, humidity,

magnetic interfere etc).

3.Any function of input and output can be implemented.

4.Strong output signal, normally no need to additional amplifier.

5.Suitable for the condition which any optical rule or rotary encode can not be used.

6.Easily installing and maintaining.

7.Save mechanical costs about 30%

Output signal mode

Output signal mode

A.Resistance: 1K,2K, 5K,10K,20K Ω,

B.Current: 4-20mA

C.Power: 5V,10V,12V,24V

D.Related digital indicator: up-limit and bottom-limit setting function (relay output, analogue, RS232/485 interface)

China Linear Position TransducerManufacturer

KTM series micro rod Linear Position Transducer Installation

KTM series linear position sensors are designed for measurement limited space. Anodized aluminium housing. Conductive plastic track inside could run smoothly and have low-noise output signals.

KTMMicro Rod Serie	mm	10	15	25	50	75	100	125	150	175	200	225	250	275	300	400
Total Electrical Travel (T.E)	mm	12	17	27	52	77	102	127	152	177	202	227	252	277	302	402
Active Electrical Travel (A.E)	mm	10	15	25	50	75	100	125	150	175	200	225	250	275	300	400
Resistance Range ±20%	kΩ	5.0
Independent Linearity	±%	0.05
Mechanical Travel (M.T)	mm	14	19	29	54	79	104	129	154	179	204	229	254	279	304	404
Output		Voltage Divider
Resolution		Infinite
Operating Temperature	C°	-50 + 120
Dimensions A	mm	53	58	68	93	118	143	168	193	218	243	268	293	318	343	443
Total Dimensions	mm	70	75	85	110	135	160	185	210	235	260	185	310	335	360	460
