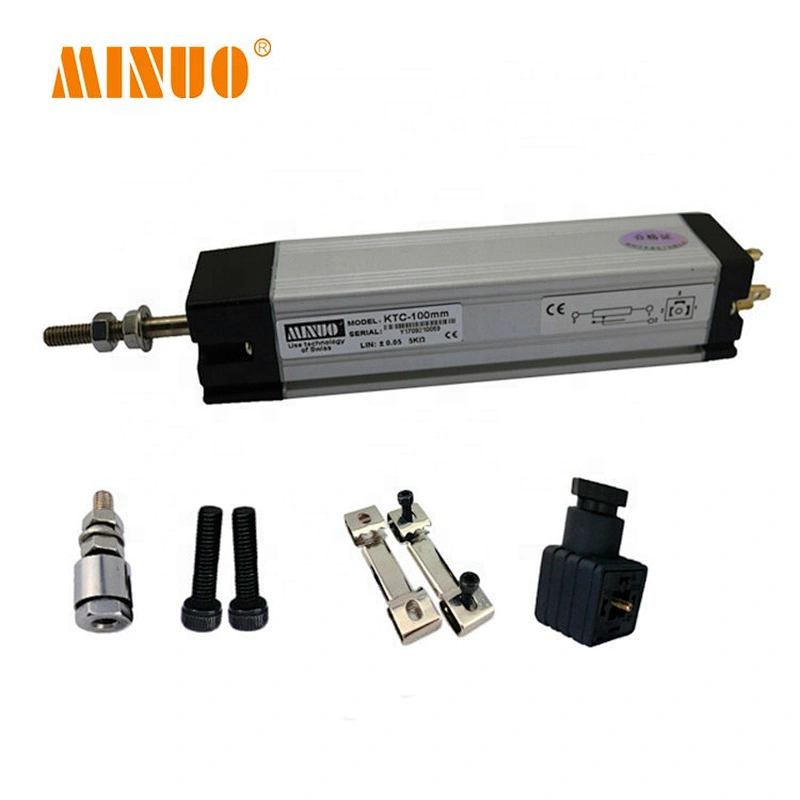

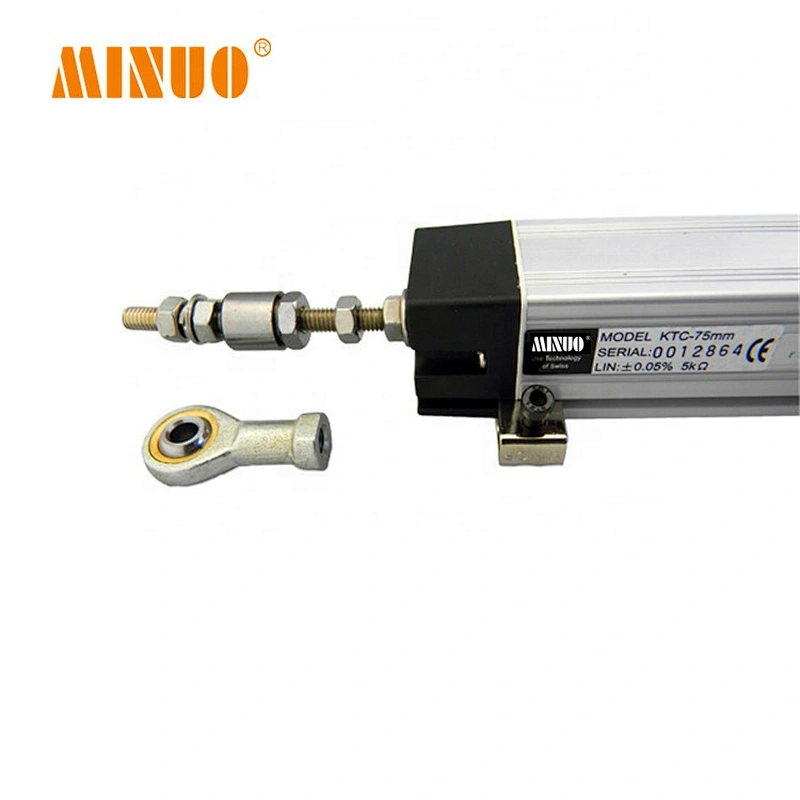

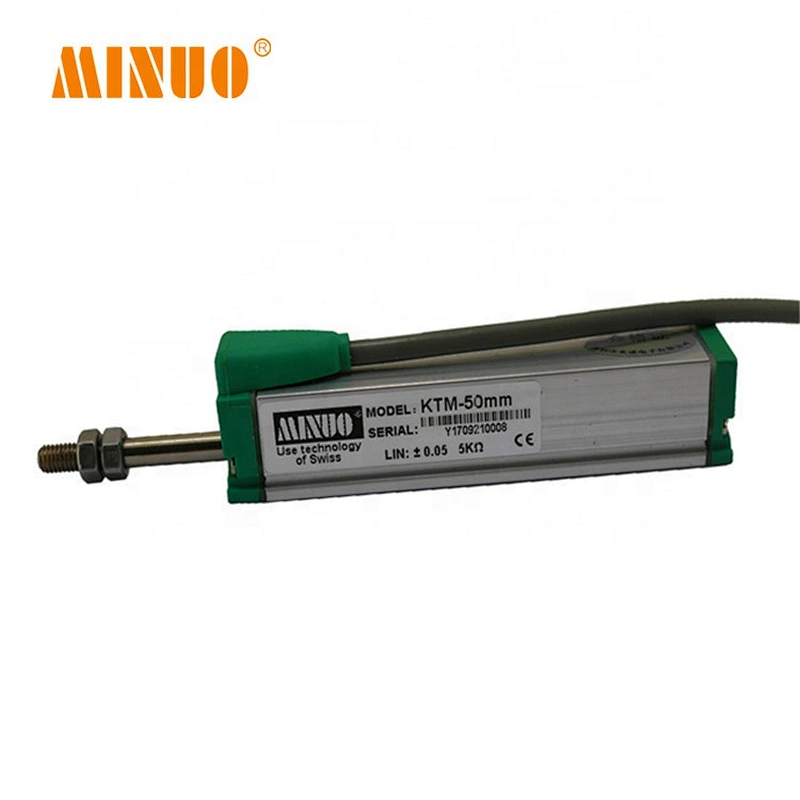

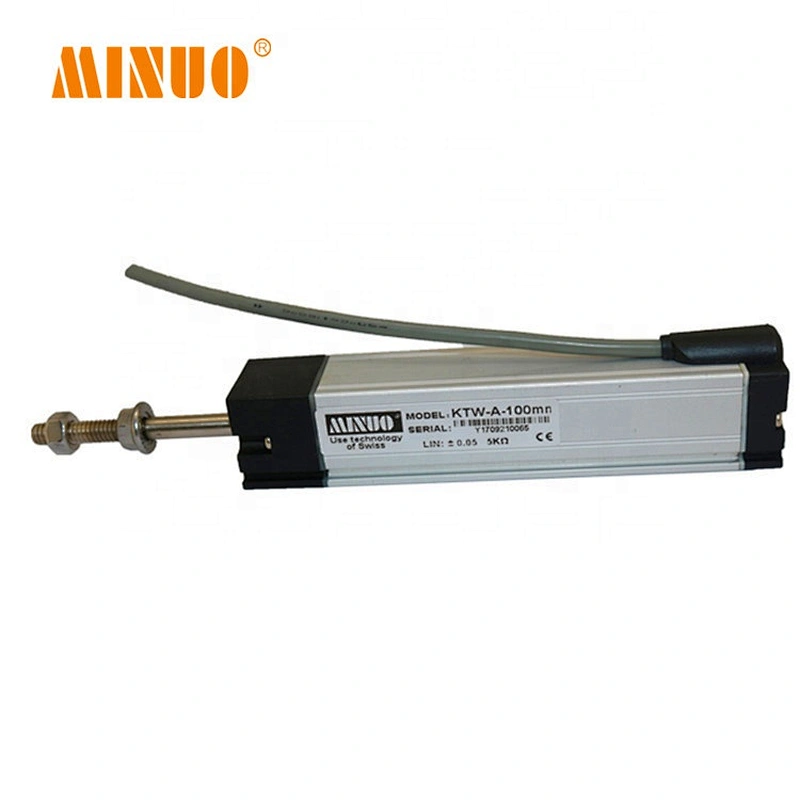

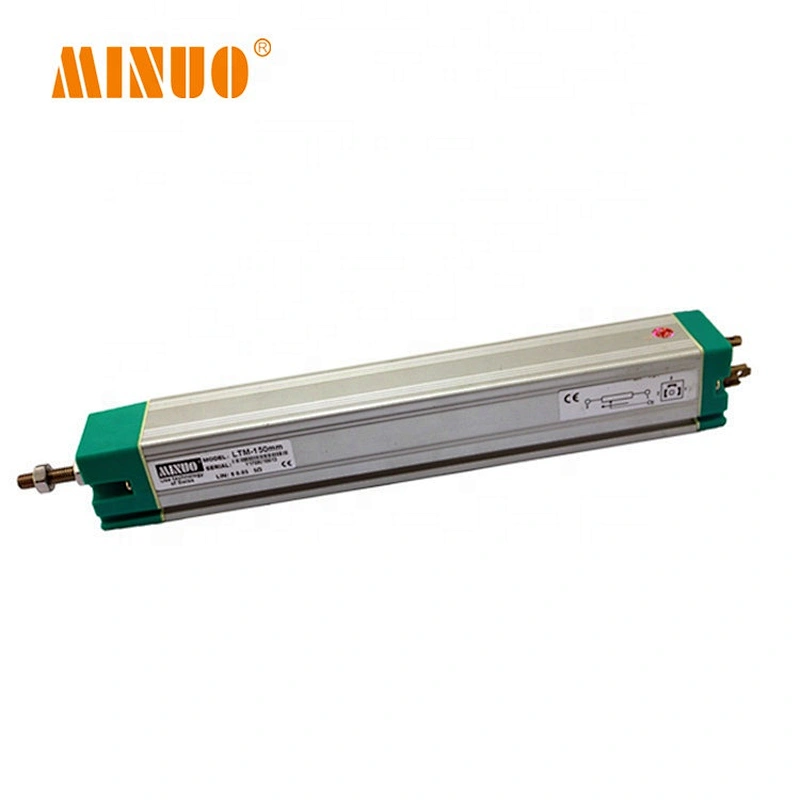

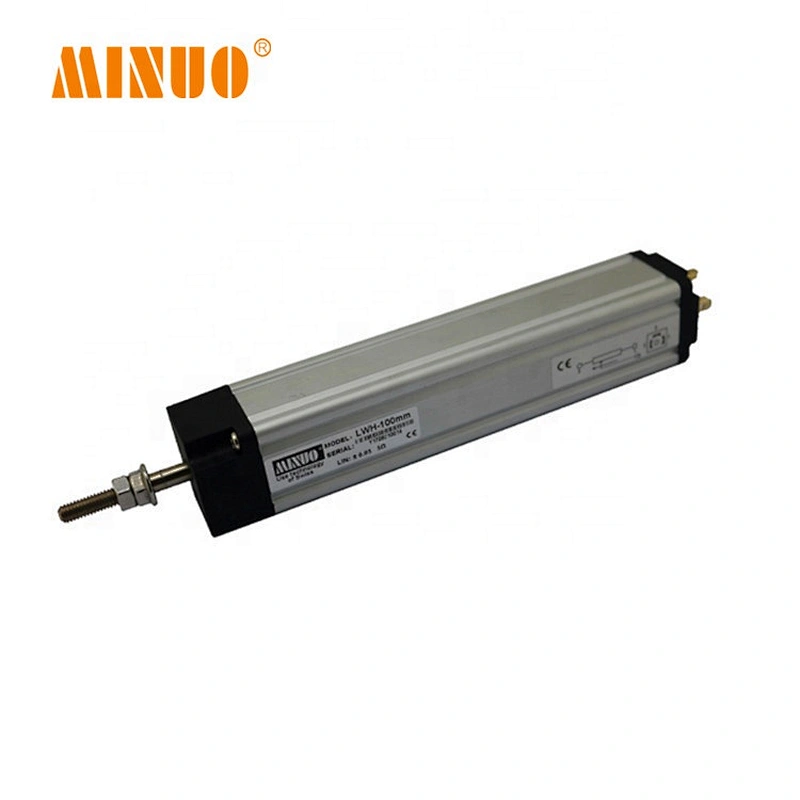

Features of KTC series
| Technical specification of KTC | ||||||||||||||||
| Model | Unit | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | 300 | 325 | 350 | 375 | 400 | 425 |
| Measuring range | mm | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | 300 | 325 | 350 | 375 | 400 | 425 |
| Total electrical travel(T.E) | mm | 80 | 105 | 130 | 155 | 180 | 205 | 230 | 255 | 280 | 305 | 330 | 355 | 380 | 405 | 430 |
| Resistence | KΩ | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Resistence tolerance | ±% | 20 | ||||||||||||||
| linearity | % | 0.1 | 0.1 | 0.09 | 0.08 | 0.08 | 0.08 | 0.08 | 0.07 | 0.07 | 0.06 | 0.06 | 0.05 | 0.05 | 0.05 | 0.05 |
| Repeatability | mm | 0.01 | ||||||||||||||
| Recommended current(wiper) | μA | 1 | ||||||||||||||
| Max current(wiper) | mA | 10 | ||||||||||||||
| Max voltage | V | 42 | ||||||||||||||
| Output range | 0-5V,0-10V,4-20mA | |||||||||||||||
| Resolution | infinite | |||||||||||||||
| Output smoothness | % | 0.1 | ||||||||||||||
| Insulation resistance | MΩ | ≥10 | ||||||||||||||
| Temperature Coefficient | ppm/k | 5 | ||||||||||||||
| Dimensions A | mm | 152 | 177 | 202 | 227 | 252 | 277 | 302 | 327 | 352 | 377 | 402 | 427 | 452 | 477 | 502 |
| Mechanical travel(M.T) B | mm | 82 | 117 | 142 | 167 | 192 | 217 | 242 | 267 | 292 | 317 | 342 | 367 | 392 | 417 | 442 |
| Operating force | N | ≤3 | ||||||||||||||
| Operating temperature | -60······150 | |||||||||||||||
| Vibration frequency range | Hz | 5······2000 | ||||||||||||||
| Amplitude | mm | 0.8 | ||||||||||||||
| Acceleration | g | 20 | ||||||||||||||
| Service life | cycle | 100×106 | ||||||||||||||
| Operating speed | m/s | ≤10 | ||||||||||||||
| Model | Unit | 450 | 475 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1150 | 1250 |
| Measuring range | mm | 450 | 475 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1150 | 1250 |
| Total electrical travel(T.E) | mm | 455 | 480 | 505 | 555 | 605 | 655 | 705 | 755 | 805 | 855 | 330 | 955 | 1005 | 1155 | 1255 |
| Resistence | KΩ | 5 | 5 | 5 | 5 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Resistence tolerance | ±% | 20 | ||||||||||||||
| linearity | % | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.03 | 0.03 |
| Repeatability | mm | 0.01 | ||||||||||||||
| Recommended current(wiper) | μA | 1 | ||||||||||||||
| Max current(wiper) | mA | 10 | ||||||||||||||
| Max voltage | V | 42 | ||||||||||||||
| Output range | 0-5V,0-10V,4-20mA | |||||||||||||||
| Resolution | infinite | |||||||||||||||
| Output smoothness | % | 0.1 | ||||||||||||||
| Insulation resistance | MΩ | ≥10 | ||||||||||||||
| Temperature Coefficient | ppm/k | 5 | ||||||||||||||
| Dimensions A | mm | 527 | 552 | 577 | 627 | 677 | 727 | 777 | 827 | 877 | 927 | 977 | 1027 | 1077 | 1227 | 1327 |
| Mechanical travel(M.T) B | mm | 457 | 492 | 517 | 567 | 617 | 667 | 717 | 767 | 817 | 867 | 917 | 967 | 1017 | 1167 | 1267 |
| Operating force | N | ≤3 | ||||||||||||||
| Operating temperature | -60······150 | |||||||||||||||
| Vibration frequency range | Hz | 5······2000 | ||||||||||||||
| Amplitude | mm | 0.8 | ||||||||||||||
| Acceleration | g | 20 | ||||||||||||||
| Service life | cycle | 100×106 | ||||||||||||||
| Operating speed | m/s | ≤10 | ||||||||||||||
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting
molding machine), glass machine, printing machine, medical machine, wood and coal
mine machine and so on.
MINUO products can be used with PLC industrial control systems, servo, frequency
converter, singlechip microcomputer, supporting the use of achieve frequency control,
the precise position detection and control signal feedback ect.
SHENZHEN MINUO ELECTRONICS CO.LTD was founded in 2004,The company has the top bump type of conductive plastic potentialsensor resistance railresearchand development and manufacturing and thecoretechnology. It is the earlier high-tech enterprises engaged in the electrically conductive plastic potentiometer(Angle) of research and development and production in China.We have obtained several patents,MINUO product therefore won the good market reputation and industry brand awareness.
We with one-pointed,focus,focus,professional industry workman for the enterprise development concept.Continue to participate in future industrial 4.0 sensor core technology research and development,strive to build the world industrial automation engineer preferred displacement (perspective) sensor.Continuously improveproductqualityandservicequalitiosatistpesoaliztie
MINUO main production and sales of conductive plastic displacement sensor(electronic rule),Rotary displacementsensor,Draw wire position sensor,transmitter, magnetostrictive displacement sensor,Digital display intelligent meter,grating scale , Range from 0mm-30mm ,the precisionof products are 0.1% 0.05%,5um,1um,0.5um.The varieties, complete specifications and models, range range service life and accuracy in the leading position in the industry.
Products are widely used in aviation, military industry, machinery, engineering machinery, engineering,automation control system requires accurate measurement of displacement.
