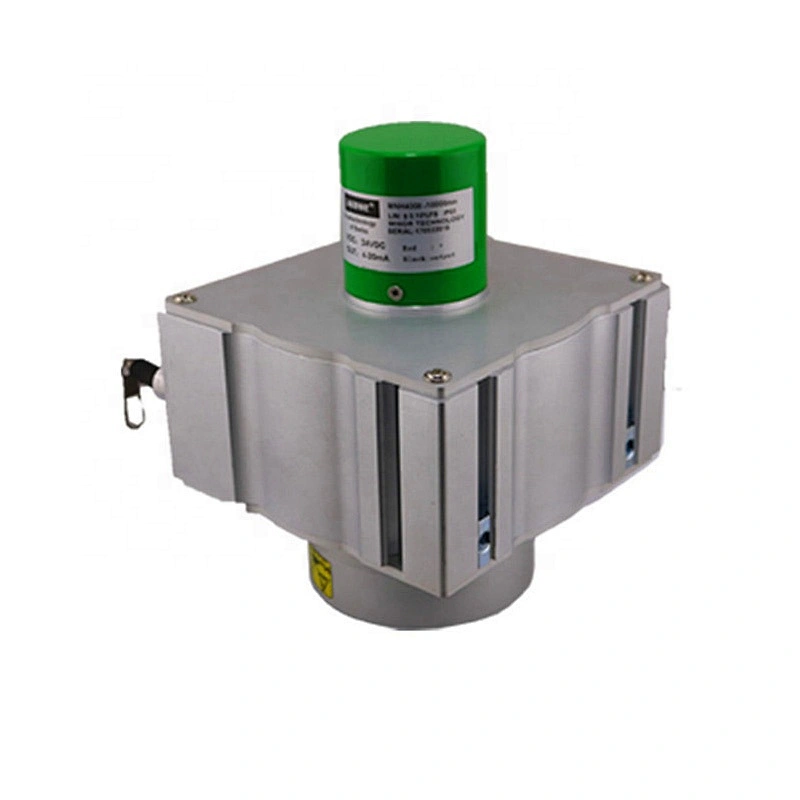

MNH-40-400mm wire wound potentiometer Wire displacement sensor

When pull the Draw wire position sensor,it will output a settled pulse, for photoelectric encoder output pulse and encoder grating engraved liness the same,when it need to improve resolution, available A and B two way signal frequency or replace the high resolution encoder, The starting point of position can be arbitrary set,and can realize the multiturn unlimited accumulation and measurement (depending on the maximum stroke),you can also turn each signal of a pulse Z,as a reference for mechanical parts. With absolute value encoder wire displacement sensor when pull rotation (week), there are one-to-one with other displacement position code (gray code, binary, BCD) output, from the change in the code size, then you can judge the positionof the forward and reverse and the spindle. it doesn' t need the direction judgment circuit

 Applied to automatic control, automatic detection of east inthefield of automation, such as CNC machine, coating equipment, servo motor,steel rolling machinery,textile machinery, printing machinery,light industry machinery,automobile industry,material testing machine,and office instrumentation and other industries. Construction machinery and other related size measurement or position control

The pull rope displacement sensor is applied to the gate opening monitoring

The pull - rope displacement sensor is applied to the measurement of concrete pump.

The pull - rope displacement sensor is applied to the trip feedback.

1.Simple structure, small size, light weight, affordable, but with stable and high

   precision quality.

2.Less impact generated by the environment (Such as temperature, humidity,

   magnetic interfere etc).

3.Any function of input and output can be implemented.

4.Strong output signal, normally no need to additional amplifier.

5.Suitable for the condition which any optical rule or rotary encode can not be used.

6.Easily installing and maintaining.

7.Save mechanical costs about 30%

     Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting

molding machine), glass machine, printing machine, medical machine, wood and coal

mine machine and so on.

    MINUO products can be used with PLC industrial control systems, servo, frequency

converter, singlechip microcomputer, supporting the use of achieve frequency control,

the precise position detection and control signal feedback ect.
