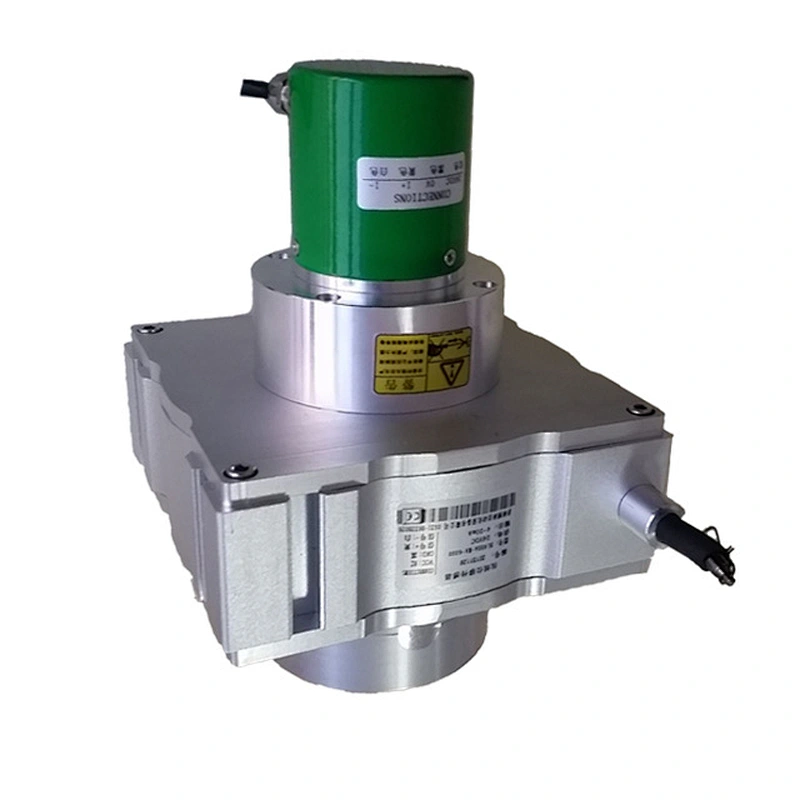

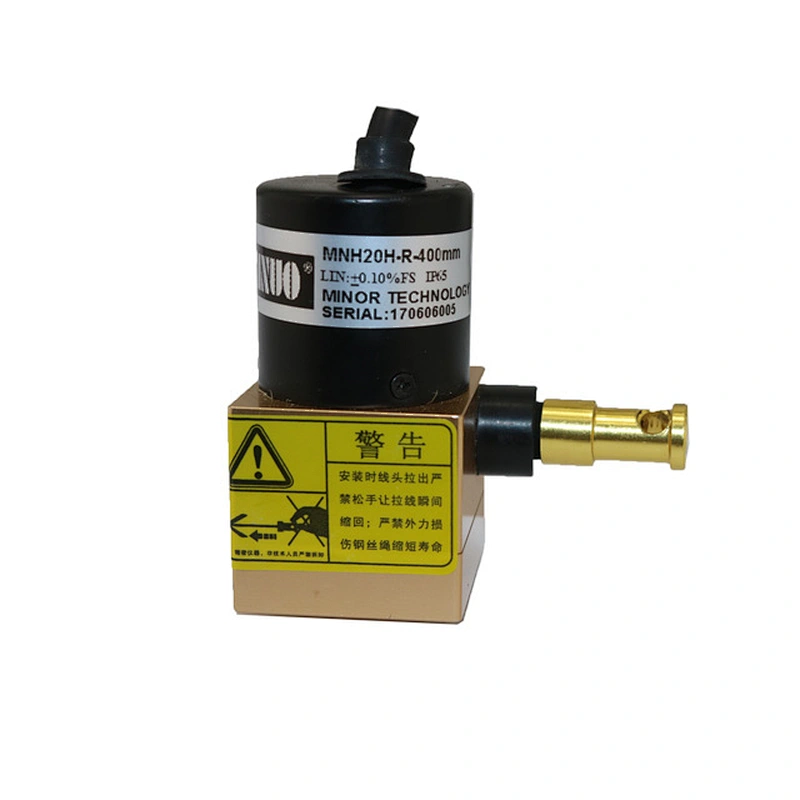

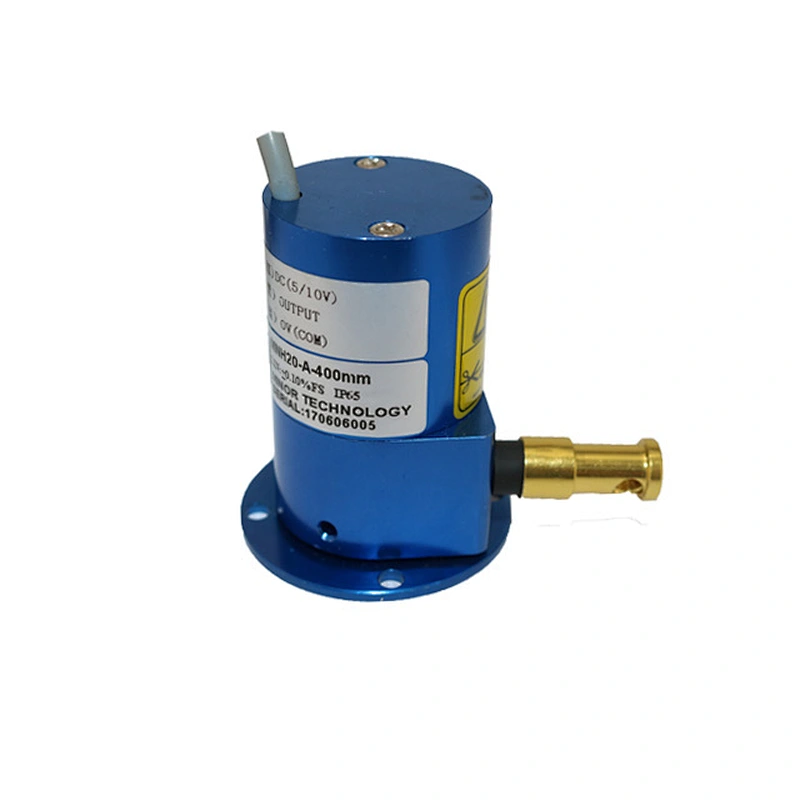

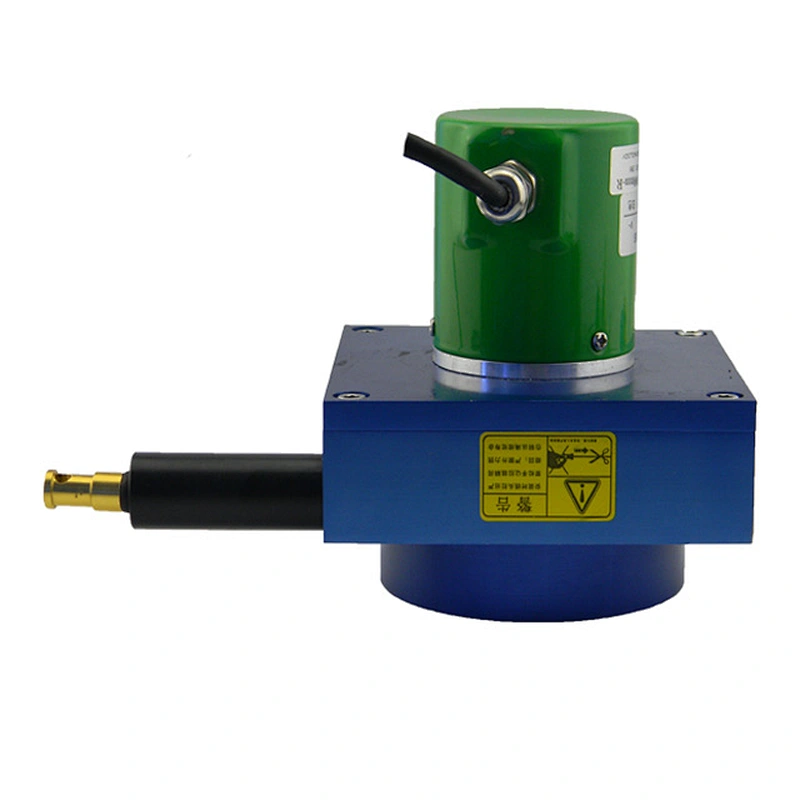

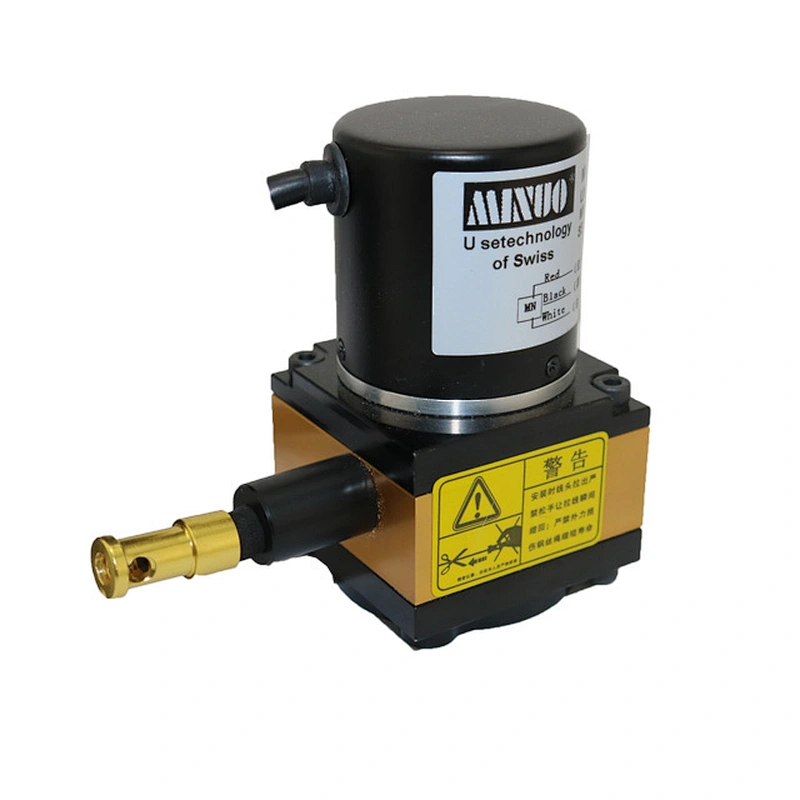

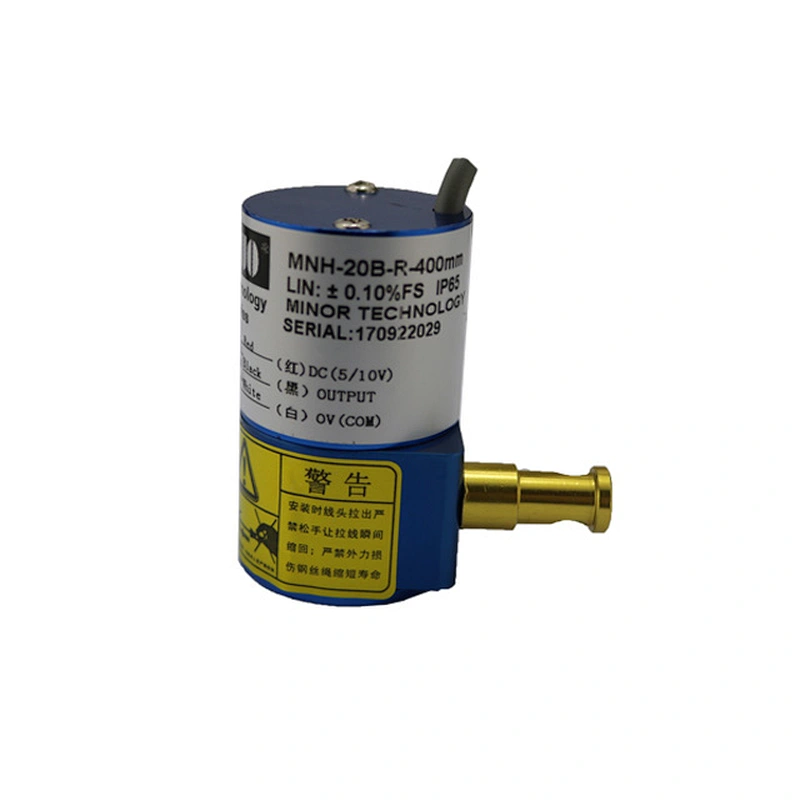

MNH20H 0-400mm Pull rope displacement sensor Analog Output Pull Rope Draw Wire Sensor
SORT | TECHNICAL PARAMETERS | ||||
Signal output form | Digital output P G | Analog output V/MA/R G | |||
Output characteristics | TL liquid / square wave | Voltage(V):0-5v,0-10v,1-5v | |||
Parallel output,Serial,ssi Port, MHz, profibus, CanOpen | Current(MA):4-20mA,0-20mA | ||||
RS485 | Resistance(R):0-5kΩ,0-10KΩ,others | ||||
Supply Voltage | DC5V,DC5-24V | DC5V,DC10V, | |||
Measure stroke | 0-500mm | 0-400mm | |||
Maximum speed reciprocating | 600mm/s | 600mm/s | |||
Definition | 0.004,0.005,0.01 others | Nature of infinitesimal | |||
Measurement wire | Φ0.6 | Φ0.6 | |||
Linearity | 0.05%FS | 0.1%FS | |||
Pull material | Stainless steel | Stainless steel | |||
Work force | About 5N | About 5N | |||
Operating temperature | -25℃~+85℃ | -25℃~+85℃ | |||
Storage temperature | -35℃~+95℃ | -35℃~+95℃ | |||
Weight | 100g | 100g | |||
Useful life | >1×106 times | >1×106 times | |||
Protection grade | IP54 (Criterion) | IP54 (Criterion) | |||
MNH-20-P | Measurement range | resolution | Output characteristics | Supply voltage | Incremental type |
MNH-20-V/MA/R | Measurement range | Nature of infinitesimal | Output characteristics | Supply voltage | Mixed type |
MNH-20-G | Measurement range | Definition | Output characteristics | Supply voltage | Absolute value type |
