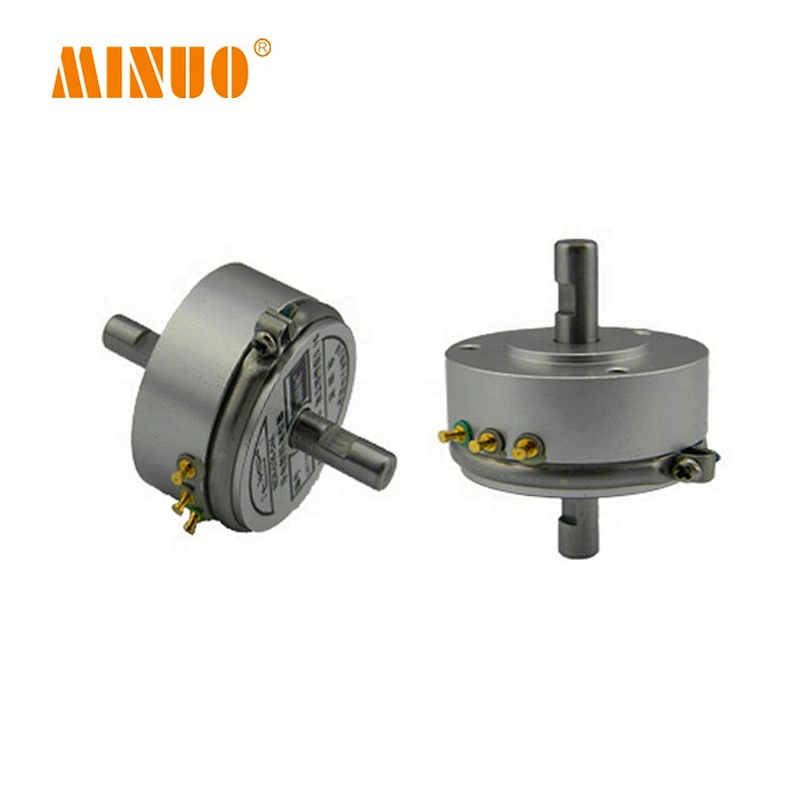

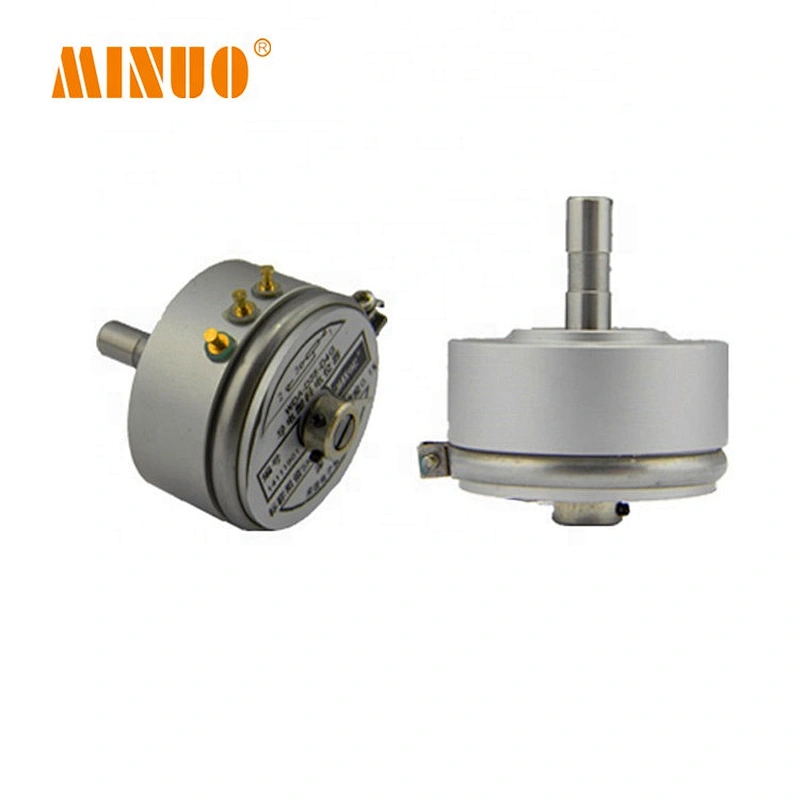

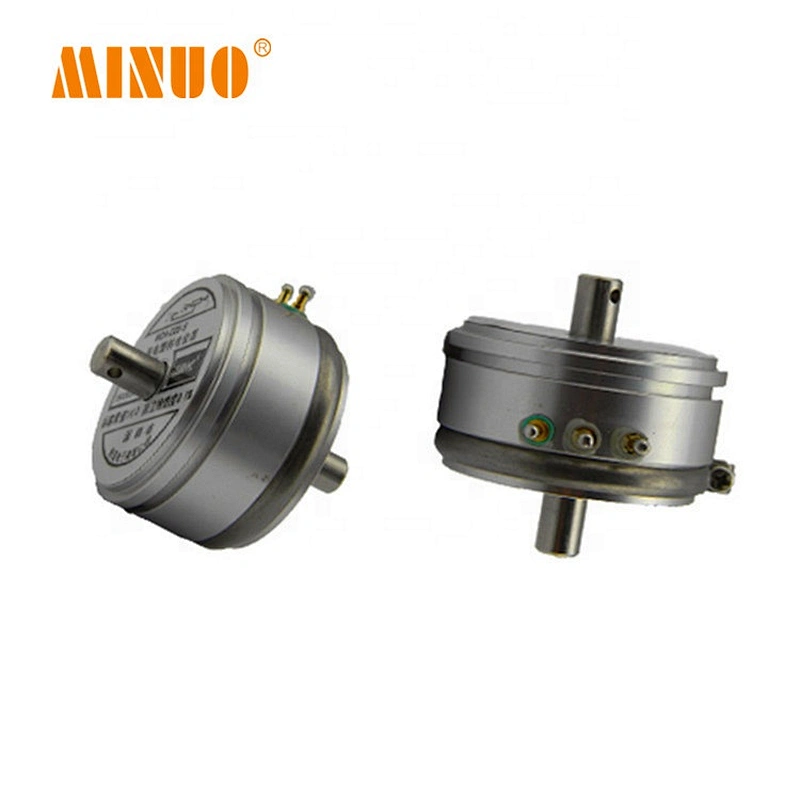

A. Max measuring range 360 °
B. Operating speed≤10000rpm
C. Resolution≤0.01°
D. Low rotational torque
E. Anodized aliminium housing
F. All direction circumgyrated
| Technical specification | |
| Effective electrical angle | 360° |
| Total resistance | 1KΩ |
| Resistance tolerance | ±20% |
| Independent linearty | ±1%(±0.5%) |
| Rated power | 1W/70° |
| Output smoothess | ±0.1% |
| Supply voltage | 5V/10V/12V/24V |
| Current consuption | 10mA/16mA |
| Mechanical angle | 360° |
| Rotational torque | 20*10-4N.M |
| Weight | 100g |
| Temp of Application | -40-125 |
| Vibration | 98m/s2(10G)500Hz |
| Shoce | 490m/s2(50G)11ms |
| Rotational life | 100*105cycles |
Low output voltage can not reach absolute 0V, the lowest 0.05V; There is 1° of the nonlinear zone between 0° and 360° during 0-360° circle measuring. Recommend use 5°-355° measurement range to ensure the output signal linearity.
SHENZHEN MINUO ELECTRONICS CO.LTD was founded in 2004,The company has the top bump type of conductive plastic potentialsensor resistance railresearchand development and manufacturing and thecoretechnology. It is the earlier high-tech enterprises engaged in the electrically conductive plastic potentiometer(Angle) of research and development and production in China.We have obtained several patents,MINUO product therefore won the good market reputation and industry brand awareness.
We with one-pointed,focus,focus,professional industry workman for the enterprise development concept.Continue to participate in future industrial 4.0 sensor core technology research and development,strive to build the world industrial automation engineer preferred displacement (perspective) sensor.Continuously improveproductqualityandservicequalitiosatistpesoaliztie
MINUO main production and sales of conductive plastic displacement sensor(electronic rule),Rotary displacementsensor,Draw wire position sensor,transmitter, magnetostrictive displacement sensor,Digital display intelligent meter,grating scale , Range from 0mm-30mm ,the precisionof products are 0.1% 0.05%,5um,1um,0.5um.The varieties, complete specifications and models, range range service life and accuracy in the leading position in the industry.
Products are widely used in aviation, military industry, machinery, engineering machinery, engineering,automation control system requires accurate measurement of displacement.
